13025 - Troy-Bilt Lawn Tractor, Gear Drive (SN: 130250200101 & Above) ELECTRICAL ASSEMBLY Parts Diagram

Lawn Tractor, Gear Drive

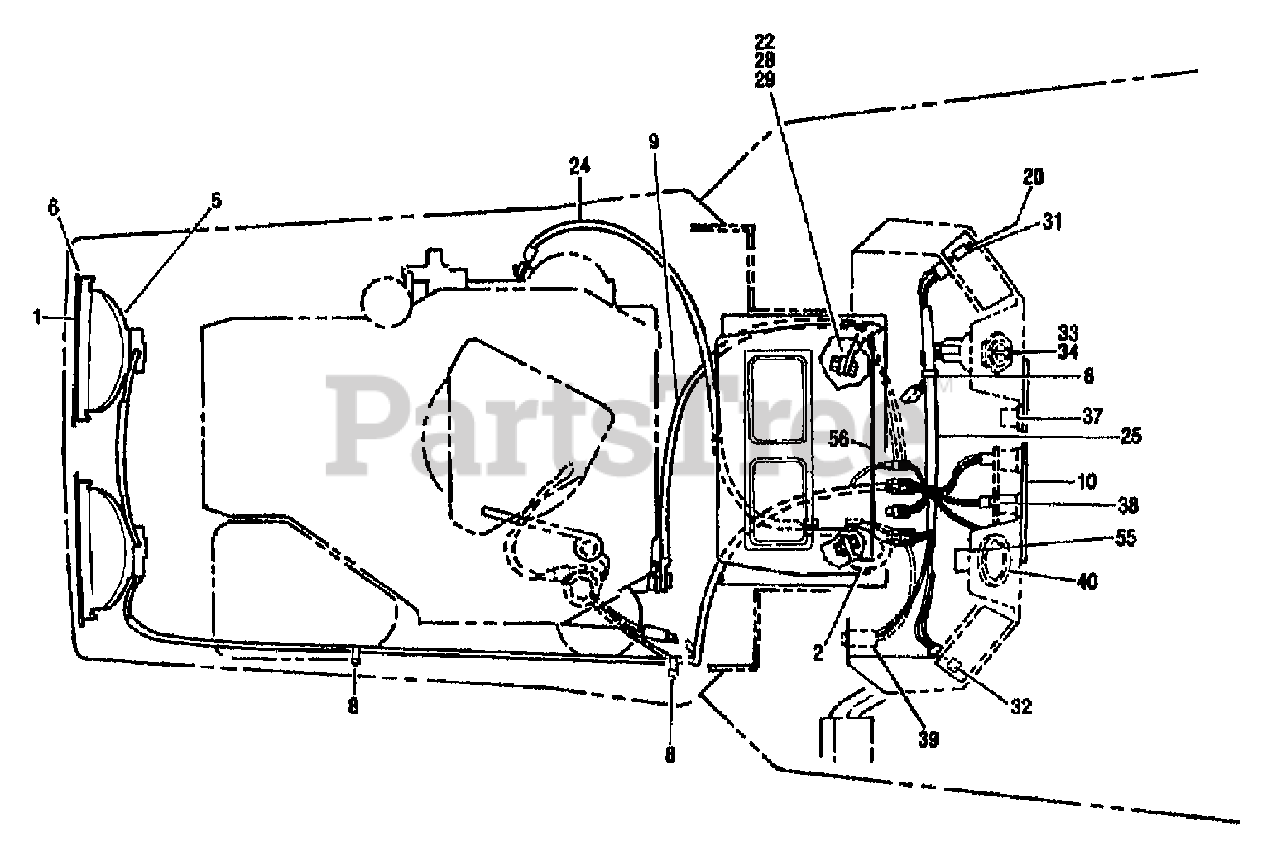

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1763064

LENSE

$

$

Not available

2

Troy-Bilt 1756074

CABLE-BATTERY (+)

$

$

Not available

?3

Troy-Bilt 1752872

LIGHTBULB
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

?4

MTD 1752875

SOCKET

$

$

Not available

5

MTD 1752871

ASSM-LIGHT

$

$

Not available

6

Troy-Bilt 1764583

GASKET

$

$

Currently unavailable

8

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

9

MTD 1754220

CABLE (-)

$

$

Not available

10

MTD 1756872

LENSE

$

$

Not available

?13

Troy-Bilt 1107381

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

?14

MTD 1764358

NUT-H/LK 1/4-20

$

$

Not available

?15

MTD 1752586

BOLT-HOOK

$

$

Not available

?17

Troy-Bilt 1185985

NUT W/LKWASHER 10-24 ZP
(Superseded to 712-0272)

$3.99

$

In Stock, only 1 left!

0

?18

MTD 1752840

BATTERY

$

$

Not available

?19

Troy-Bilt 1752137

SOLENOID
(Superseded to 1752137P)

$65.99

$

Usually ships in 3-6 days

0

?20

MTD 1750963

SCR-FHP #6-32X.50 ZP

$

$

Not available

22

Troy-Bilt 1186229

NUT-HEX 1/4-20 ZP
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

?23

MTD 1748014

GROMMET-SPLIT

$

$

Not available

24

MTD 1741506

CABLE-STARTER

$

$

Not available

25

Troy-Bilt 1752134

HARNESS-CONSOLE WIRING

$

$

Currently unavailable

?26

MTD 1747738

CLIP-J

$

$

Not available

?27

Troy-Bilt 1761006

TRAY-BATTERY

$

$

Currently unavailable

28

Troy-Bilt 1100241

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

29

Troy-Bilt 1111599

SCR-HH 1/4-20X.625 G5 ZP
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

?30

Troy-Bilt 1756076

HARNESS-INTERLOCK

$

$

Currently unavailable

31

Troy-Bilt 1754608

SWITCH-PTO

$62.99

$

Usually ships in 3-6 days

0

32

MTD 1754856

SWITCH-LIGHT

$

$

Not available

33

Troy-Bilt 1754250

SWITCH-IGNITION
(Superseded to 1754250P)

$68.99

$

Usually ships in 3-6 days

0

34

MTD 1753986

KEY-IGNITION

$

$

Not available

?35

MTD 1763862

HARNESS-WIRE ENGINE

$

$

Not available

?36

MTD 1755802

BATTERY-HOLDDOWN

$

$

Not available

37

MTD 1735285

BULB (MFG NO. GE 73)

$

$

Not available

38

MTD 1186020

SCR-PHP M6-32X.38 ZP

$

$

Not available

39

Troy-Bilt 1743516

FUSE-30 AMP
(Superseded to 725-1543)

$3.99

$

Usually ships in 3-6 days

0

40

MTD 1756739

CAP

$

$

Not available

?43

MTD 1755349

SCR-PHP 1/4-20X.50 ZP

$

$

Not available

?44

Troy-Bilt 1752506

SWITCH-SEAT

$67.99

$

Usually ships in 3-6 days

0

?45

Troy-Bilt 1755487

GROMMET

$

$

Currently unavailable

?46

MTD 1734934

GROMMET-RUBBER

$

$

Not available

?47

Troy-Bilt 1751328

SWITCH
(Superseded to 925-04039)

$22.99

$

In Stock, Qty 20+

0

?51

Troy-Bilt 1758070

SCR-HHS 10-24X.625 ZP
(Superseded to 710-0425)

$4.49

$

Usually ships in 3-6 days

0

55

UNKNOWN

$

$

Not available

56

UNKNOWN

$

$

Not available

20

UNKNOWN

$

$

Not available
