13040 - Troy-Bilt Garden Tractor, Hydro Drive (SN: 130400100101 & Above) FRAME ASSEMBLY Parts Diagram

Garden Tractor, Hydro Drive

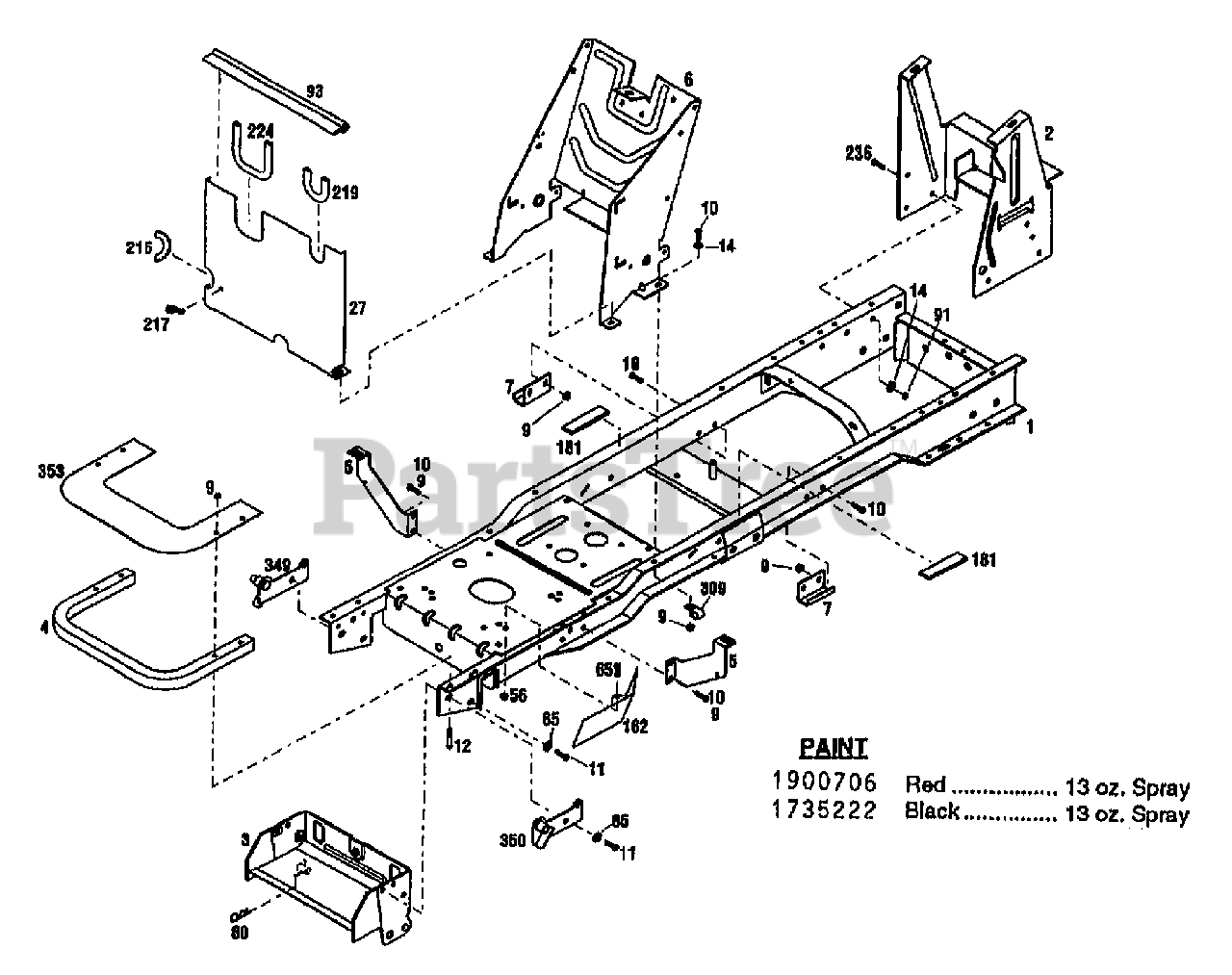

FRAME ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1765440001

ASSM-FRAME

$

$

Currently unavailable

2

MTD 1766050001

SUPPORT-REAR TANK

$

$

Not available

3

MTD 1766082001

ASSM-BRKT ATTACHMENT

$

$

Not available

4

MTD 1766336001

BUMPER-FRONT

$

$

Not available

5

MTD 1765431001

SUPPORT-FENDER

$

$

Not available

6

MTD 1765446001

SUPPORT-CONSOLE

$

$

Not available

7

MTD 1766086001

STOP-MOWER DECK

$

$

Not available

9

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 1100799

SCR-HH 5/16-18X1.5 G5 ZP
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

14

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

27

MTD 1768826001

SHIELD-HEAT

$

$

Not available

56

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

?60

MTD 1723478

PIN-HITCH .125X2.56 ZP

$

$

Not available

65

Troy-Bilt 1186309

SCR-HH 1/4-20X.625

$

$

Not available

85

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

91

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.49

$

In Stock, Qty 20+

0

93

MTD 1768835

TRIM

$

$

Not available

162

Troy-Bilt 1767874001

SHIELD-HEAT UPPER

$

$

Currently unavailable

181

MTD 1767883

PAD

$

$

Not available

?216

MTD 1768835

TRIM

$

$

Not available

217

MTD 1745366

HANGER-CABLE

$

$

Not available

219

MTD 1752694

TRIM

$

$

Not available

224

MTD 1768840

TRIM-HEAT SHIELD

$

$

Not available

236

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$3.99

$

In Stock, only 2 left!

0

309

MTD 1747738

CLIP-J

$

$

Not available

349

MTD 1767867

PLATE-PIVOT RH

$

$

Not available

350

MTD 1767868

PLATE-PIVOT LH

$

$

Not available

353

MTD 1767963001

SHIELD-HEAT

$

$

Not available

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$22.99

$

Usually ships in 3-6 days

0

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$

$

Not available

215

UNKNOWN

$

$

Not available

80

UNKNOWN

$

$

Not available
