13060 - Troy-Bilt Garden Tractor, Hydro Drive (SN: 130600100101 & Above) BODYWORK & TRIM ASSEMBLY Parts Diagram

Garden Tractor, Hydro Drive

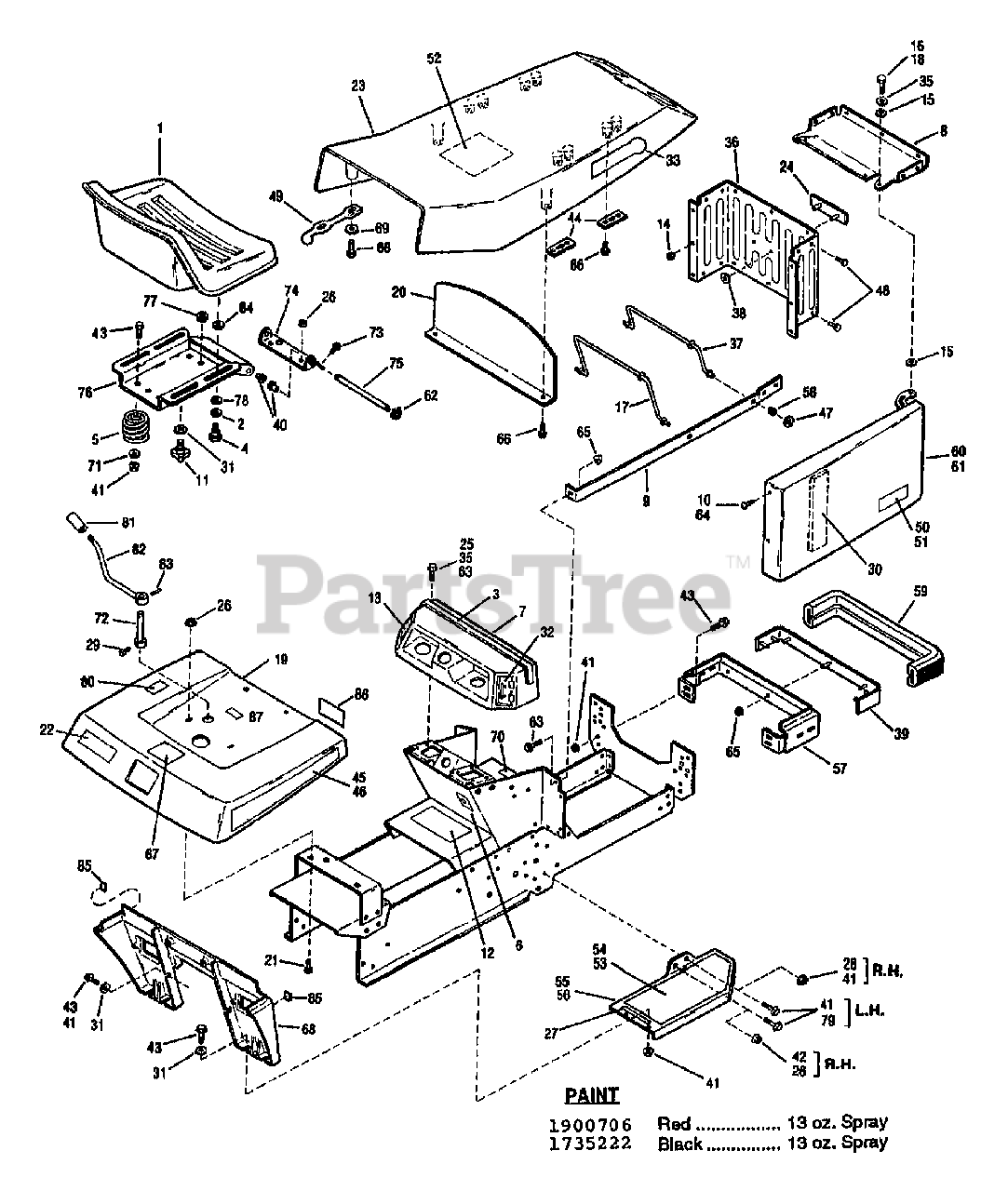

BODYWORK & TRIM ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1757363

SEAT

$

$

Currently unavailable

2

MTD 1705793

WASHER-1.06X.51X.09 NYLON

$

$

Not available

3

MTD 1755516

PAD-HOOD

$

$

Not available

4

Troy-Bilt 1754125

SCR-SHLDR 3/8-16X.25 G5ZP

$6.49

$

In Stock, Qty 5

0

5

Troy-Bilt 1755449

SPRING-COMPRESSION

$

$

Not available

6

MTD 1756775

DECAL-IGNITION

$

$

Not available

7

Troy-Bilt 1757362

PANEL-INST

$

$

Currently unavailable

8

MTD 1755628001

CAP-GRILLE

$

$

Not available

9

MTD 1753783010

SUPPORT

$

$

Not available

10

Troy-Bilt 1185986

NUT-SPEED #10
(Superseded to 712-0147)

$6.49

$

Usually ships in 3-6 days

0

11

MTD 1734269

KNOB

$

$

Not available

12

MTD 1767130

DECAL-OPERATING INST

$

$

Not available

13

MTD 1756777

DECAL-CHOKE

$

$

Not available

14

Troy-Bilt 1185985

NUT W/LKWASHER 10-24 ZP
(Superseded to 712-0272)

$3.99

$

In Stock, only 1 left!

0

15

MTD 1755714

WASHER

$

$

Not available

16

Troy-Bilt 1100805

SCR-HH 1/4-20X.75 G5 ZP
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

17

MTD 1752901

LINK-HINGE

$

$

Not available

18

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

19

MTD 1749821010

FENDER

$

$

Not available

20

Troy-Bilt 1752903001

BAFFLE-HOOD

$

$

Currently unavailable

21

Troy-Bilt 1736098

BOLT-CARR 5/16-18X.63 ZP
(Superseded to 710-0260A)

$3.99

$

In Stock, Qty 20+

0

22

MTD 1759102

DECAL-LOGO FENDER

$

$

Not available

23

MTD 1767107

HOOD-TRACTOR

$

$

Not available

24

MTD 1757361

PLATE-LOGO

$

$

Not available

25

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

26

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

27

MTD 1755522

CUSHION

$

$

Not available

28

Troy-Bilt 1100068

SCR-HH 3/8-16X.75 G5 ZP
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

29

Troy-Bilt 1738845

SCR-SQHD 1/4-20X1/2 GR5 (13062 ONLY)

$

$

Not available

30

MTD 1753950

BLOCK-SEALING

$

$

Not available

31

Troy-Bilt 1100256

WASHER-.986X.437X.083 ZP
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

32

MTD 1755931

DECAL-THROTTLE

$

$

Not available

33

MTD 1759100

DECAL-LOGO

$

$

Not available

35

Troy-Bilt 1107381

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

36

MTD 1755515001

GRILLE-TRACTOR

$

$

Not available

37

MTD 1752900

LINK-HINGE

$

$

Not available

38

MTD 1754126

NUT-PUSH

$

$

Not available

39

MTD 1755517

ASSM-BUMPER STRAP

$

$

Not available

40

MTD 1755779

BEARING-FLANGE

$

$

Not available

41

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$2.99

$

Usually ships in 3-6 days

0

42

MTD 1185872

SCR-TRUSS HD 5/16-18X.62

$

$

Not available

43

Troy-Bilt 1186347

SCR-HFLK 3/8-16X1.00 ZP
(Superseded to 710-04042)

$4.49

$

In Stock, only 4 left!

0

44

MTD 1752902

RETAINER-HINGE LINK

$

$

Not available

45

MTD 1767260

DECAL-FENDER RH {13060}

$

$

Not available

45

MTD 1767264

DECAL-FENDER RH {13062}

$

$

Not available

46

MTD 1767259

DECAL-FENDER LH {13060}

$

$

Not available

46

MTD 1767263

DECAL-FENDER LH {13062}

$

$

Not available

47

Troy-Bilt 1753799

RETAINER
(Superseded to 726-0201)

$6.49

$

In Stock, Qty 20+

0

48

MTD 1739918

RIVET-POP

$

$

Not available

49

MTD 1727127

LATCH-RUBBER

$

$

Not available

50

Troy-Bilt 1767261

DECAL-SIDE COVER LH

$

$

Currently unavailable

51

Troy-Bilt 1767262

DECAL-SIDE COVER RH

$

$

Currently unavailable

52

MTD 1767110

DECAL-SERVICE INST

$

$

Not available

53

MTD 1752893

PAD-FOOTREST LH

$

$

Not available

54

MTD 1752894

PAD-FOOTREST RH

$

$

Not available

55

MTD 1752250010

FOOTREST-LH

$

$

Not available

56

MTD 1752251010

FOOTREST-RH

$

$

Not available

57

MTD 1752181010

ASSM-GRILLE SUPT

$

$

Not available

58

MTD 1753792

GROMMET

$

$

Not available

59

MTD 1755518

BUMPER-EXTRUSION

$

$

Not available

60

Troy-Bilt 1755496010

COVER-SIDE LH

$

$

Currently unavailable

61

MTD 1755498010

COVER-SIDE RH

$

$

Not available

62

Troy-Bilt 1185257

RING-RET."E" .300 ID
(Superseded to 916-0125)

$

$

Not available

63

Troy-Bilt 1186309

SCR-HH 1/4-20X.625

$

$

Not available

64

Troy-Bilt 1115815

SCR-TRUSS #10-24 X 5/8
(Superseded to 710-0425)

$4.49

$

Usually ships in 3-6 days

0

65

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

66

MTD 1185130

SCR-SEMS MACH

$

$

Not available

67

MTD 1757366

DECAL-FUEL

$

$

Not available

68

MTD 1757358

SUPT-RUNNING BOARD

$

$

Not available

69

MTD 1757366

DECAL-FUEL

$

$

Not available

70

MTD 1754143

DECAL-WARNING

$

$

Not available

71

Troy-Bilt 1701055

WASHER-FLAT 1.25X.406X.179

$5.99

$

Usually ships in 3-6 days

0

72

MTD 1756204

SHAFT-SHIFT LEVER

$

$

Not available

73

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$3.99

$

In Stock, only 2 left!

0

74

MTD 1755456001

BRACKET

$

$

Not available

75

MTD 1755622

ROD

$

$

Not available

76

Troy-Bilt 1755620001

ASSM-SEAT SUPPORT

$

$

Currently unavailable

77

Troy-Bilt 1755487

GROMMET

$

$

Currently unavailable

78

Troy-Bilt 1706782

WASHER-BOW .74X.52X.01

$2.49

$

In Stock, only 1 left!

0

79

MTD 1186345

SCR

$

$

Not available

?80

MTD 1767131

DECAL-TWO SPEED {13062}

$

$

Not available

81

Troy-Bilt 1755473

KNOB-SHIFT LEVER {13062}
(Superseded to 920-0232)

$9.99

$

In Stock, only 4 left!

0

82

MTD 1756510

LEVER-SHIFT {13062}

$

$

Not available

83

MTD 1120210

PIN-ROLL .188X1.0 {13062}

$

$

Not available

84

Troy-Bilt 1893445

WASHER-FLAT
(Superseded to 936-0133)

$

$

Not available

85

MTD 1761008

BUTTON-RUBBER

$

$

Not available

86

MTD 1900333

DECAL-U.S.A.

$

$

Not available

87

MTD 1762328

DECAL-SOUND LEVEL

$

$

Not available

?88

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$22.99

$

Usually ships in 3-6 days

0

?89

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$

$

Not available
