13062 - Troy-Bilt Garden Tractor, Hydro Drive (SN: 130620100101 & Above) LIFT ASSEMBLY Parts Diagram

Garden Tractor, Hydro Drive

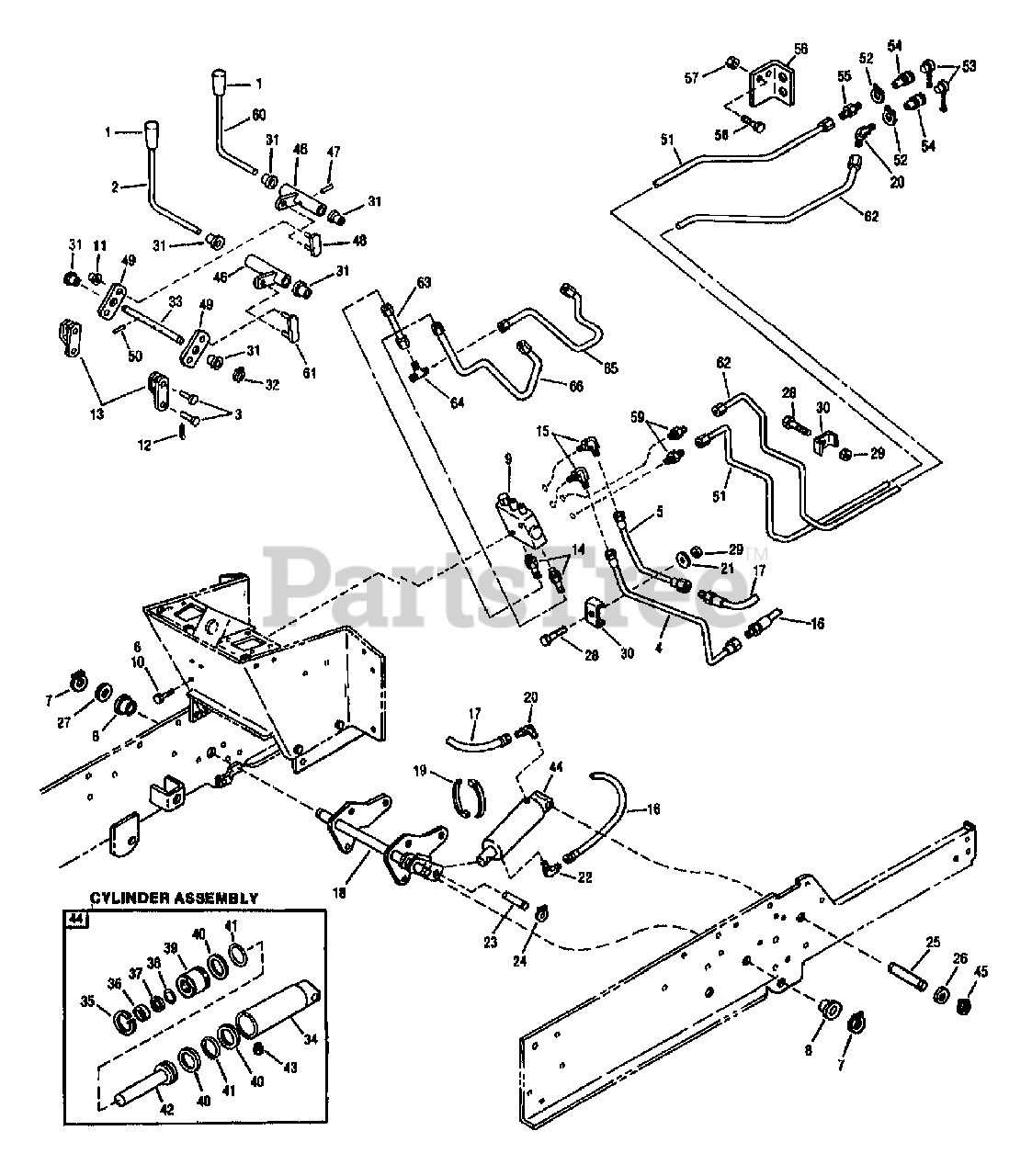

LIFT ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1755473

KNOB-SHIFT LEVER
(Superseded to 920-0232)

$9.99

$

In Stock, only 4 left!

0

2

MTD 1755460

LEVER-CONTROL

$

$

Not available

3

MTD 1755559

PIN-CLEVIS .25X.81

$

$

Not available

4

MTD 1755232

ASSM-TUBE

$

$

Not available

5

MTD 1755233

ASSM-TUBE

$

$

Not available

6

MTD 1186316

SCR-HFLK 1/4-20X2.00 G5ZP

$

$

Not available

7

Troy-Bilt 1118554

RING-RETAINING
(Superseded to 916-0102)

$4.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 1185728

BUSHING-FLANGE

$6.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 1760232

VALVE

$

$

Currently unavailable

10

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 1728072

NUT-PUSH
(Superseded to 926-0106)

$

$

Not available

12

MTD 1187385

PIN-COTTER

$

$

Not available

13

MTD 1755468

ASSM-VALVE LINK

$

$

Not available

14

MTD 1752690

CONNECTOR

$

$

Not available

15

Troy-Bilt 1185737

ELBOW
(Superseded to 727-3012)

$24.99

$

In Stock, only 4 left!

0

16

MTD 1752648

ASSM-HOSE

$

$

Not available

17

MTD 1755198

ASSM-HOSE

$

$

Not available

18

MTD 1747510

SHAFT-LIFT

$

$

Not available

19

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

20

MTD 1185903

ELBOW

$

$

Not available

21

Troy-Bilt 1701055

WASHER-FLAT 1.25X.406X.179

$5.99

$

Usually ships in 3-6 days

0

22

MTD 1185739

ELBOW

$

$

Not available

23

MTD 1747512

PIN

$

$

Not available

24

Troy-Bilt 1118808

RING-RETAIN .625 ID

$

$

Not available

25

MTD 1724703

PIN

$

$

Not available

26

Troy-Bilt 1708012

WASHER-1.5X.755X.062
(Superseded to 736-0188)

$3.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 1185816

WASHER-SPEC

$3.49

$

Usually ships in 3-6 days

0

28

Troy-Bilt 1100045

SCR-HH 5/16-18X1.0 G5 ZP
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 16

0

29

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.49

$

In Stock, Qty 20+

0

30

MTD 1722667

CLAMP

$

$

Not available

31

MTD 1737018

BRG-FLANGE

$

$

Not available

32

MTD 1185427

RING-RETAINING

$

$

Not available

33

MTD 1755458

PIN-PIVOT

$

$

Not available

34

MTD 1729388

ASSM-CYL HYDRAULIC

$

$

Not available

35

Troy-Bilt 1118735

RING-RETAIN INT 2.210 DIA
(Superseded to 716-0188)

$

$

Not available

36

Troy-Bilt 1185266

SEAL-OIL
(Superseded to 921-0175)

$9.99

$

In Stock, Qty 16

0

37

MTD 1186019

RING-BACK/UP

$

$

Not available

38

MTD 1177395

RING-O .984 ID

$

$

Not available

39

MTD 1724511

HEAD-CYLINDER

$

$

Not available

40

MTD 1186018

RING-BACK/UP

$

$

Not available

41

MTD 1186017

RING-O 1.6 ID

$

$

Not available

42

Troy-Bilt 1747043

ASSM-ROD HYDR CYLINDER

$

$

Currently unavailable

43

MTD 1186278

PLUG-PIPE

$

$

Not available

44

MTD 1747509

ASSM-CYL HYDRAULIC

$

$

Not available

45

Troy-Bilt 1113527

RING-RETAIN EXT .707 ID
(Superseded to 916-0101)

$3.49

$

In Stock, only 4 left!

0

46

MTD 1755472

ASSM-CONTROL ARM

$

$

Not available

47

Troy-Bilt 1713457

PIN-DRIVE
(Superseded to 715-0120)

$9.99

$

In Stock, only 2 left!

0

48

Troy-Bilt 1755464

ASSM-CONTROL LINK

$

$

Currently unavailable

49

MTD 1755469

ARM-ROCKER

$

$

Not available

50

Troy-Bilt 1737015

PIN-ROLL .125 X .62
(Superseded to 915-0138)

$4.49

$

In Stock, only 1 left!

0

51

MTD 1755238

ASSM-TUBE LOWER VALVE

$

$

Not available

52

Troy-Bilt 1180025

RING-RET. EXT .875 ID
(Superseded to 716-0111)

$6.49

$

In Stock, Qty 10

0

53

MTD 1720733

PLUG-DUST

$

$

Not available

54

MTD 1863870

COUPLING-BODY

$

$

Not available

55

MTD 1721989

CONNECTOR

$

$

Not available

56

MTD 1747803001

BRKT-COUPLING

$

$

Not available

57

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$2.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 1186347

SCR-HFLK 3/8-16X1.00 ZP
(Superseded to 710-04042)

$4.49

$

In Stock, only 3 left!

0

59

MTD 1717563

CONNECTOR

$

$

Not available

60

Troy-Bilt 1755459

LEVER-CONTROL

$

$

Currently unavailable

61

MTD 1755466

LINK

$

$

Not available

62

MTD 1755239

ASSM-TUBE UPPER VALVE

$

$

Not available

63

MTD 1752662

ASSM-TUBE

$

$

Not available

64

MTD 1185904

TEE

$

$

Not available

65

MTD 1760354

ASSM-TUBE

$

$

Not available

66

MTD 1760353

ASSM-TUBE

$

$

Not available

?67

MTD 1754414

KIT-SEAL

$

$

Not available
