13065 - Troy-Bilt Hydro Suburban Lawn Tractor (SN: 130650100101 & Above) BODYWORK & TRIM ASSEMBLY Parts Diagram

Hydro Suburban Lawn Tractor

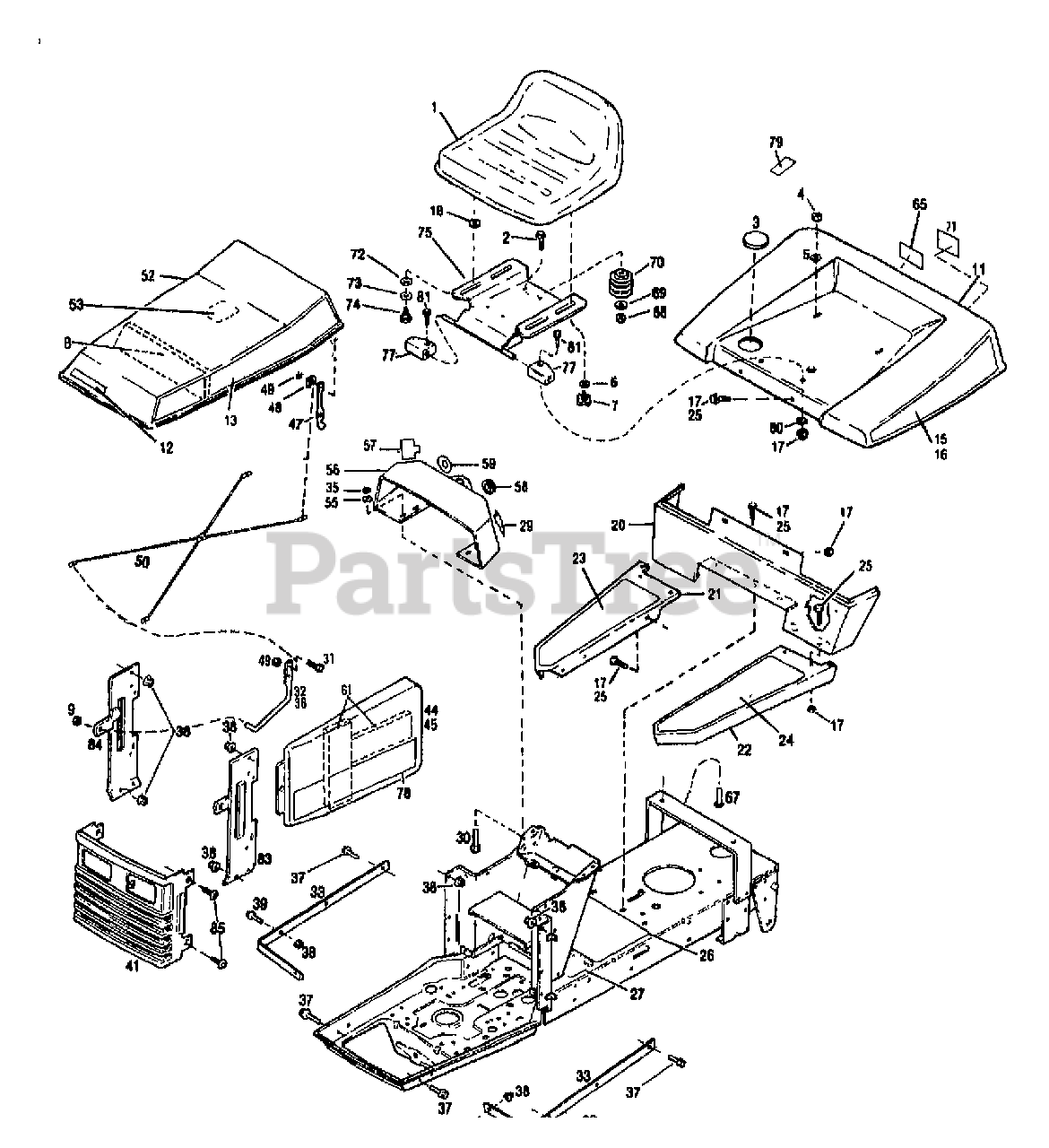

BODYWORK & TRIM ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1756861

SEAT {13064}

$

$

Currently unavailable

1

Troy-Bilt 1757363

SEAT {13065,13066}

$

$

Currently unavailable

2

Troy-Bilt 1186347

SCR-HFLK 3/8-16X1.00 ZP
(Superseded to 710-04042)

$4.49

$

In Stock, only 4 left!

0

3

Troy-Bilt 1755790

PLUG

$

$

Currently unavailable

4

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 1713233

WASHER-1.25X.343X.059 {13065,13066}
(Superseded to 736-0362)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

7

MTD 1734269

KNOB

$

$

Not available

8

MTD 1764659

FOAM-UPPER {13065,13066}

$

$

Not available

9

MTD 1737951

NUT-SPECIAL

$

$

Not available

11

MTD 1761031010

FENDER-REAR

$

$

Not available

12

MTD 1759101

DECAL-LOGO

$

$

Not available

13

MTD 1759100

DECAL-LOGO

$

$

Not available

15

MTD 1759104

DECAL-FENDER {13066}

$

$

Not available

15

MTD 1757944

DECAL-FENDER RH RED {13065}

$

$

Not available

15

MTD 1763857

DECAL-FENDER RH {13064}

$

$

Not available

16

MTD 1759103

DECAL-FENDER LH {13066}

$

$

Not available

16

MTD 1757945

DECAL-FENDER LH RED {13065}

$

$

Not available

16

Troy-Bilt 1763858

DECAL-FENDER LH {13064}

$

$

Currently unavailable

17

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 1893445

WASHER-FLAT
(Superseded to 936-0133)

$

$

Not available

20

MTD 1743987010

SUPT-RUNNING BOARD

$

$

Not available

21

MTD 1751805010

BOARD-RUNNING RH

$

$

Not available

22

MTD 1751803010

BOARD-RUNNING LH

$

$

Not available

23

MTD 1742665

PAD-FOOT RH

$

$

Not available

24

MTD 1755729

PAD-FOOT LH

$

$

Not available

25

Troy-Bilt 1186330

SCR-LOCK
(Superseded to 710-04048)

$4.49

$

In Stock, Qty 7

0

26

MTD 1755944

PAD-FOOT

$

$

Not available

27

Troy-Bilt 1764351

DECAL-OPERATING INST

$

$

Currently unavailable

29

MTD 1755933

DECAL-CHOKE {13064}

$

$

Not available

29

MTD 1761578

DECAL-CHOKE {13065,13066}

$

$

Not available

30

Troy-Bilt 1111599

SCR-HH 1/4-20X.625 G5 ZP
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 1758070

SCR-HHS 10-24X.625 ZP
(Superseded to 710-0425)

$4.49

$

Usually ships in 3-6 days

0

32

MTD 1762861

LINK-HINGE RH

$

$

Not available

33

MTD 1764587010

ASSM-HINGE STRAP

$

$

Not available

35

MTD 1764360

NUT-HT/LK 1/4-20

$

$

Not available

36

MTD 1763048

LINK-HINGE LH

$

$

Not available

37

Troy-Bilt 1186309

SCR-HH 1/4-20X.625

$

$

Not available

38

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

39

Troy-Bilt 1186308

SCR-HFLK 1/4-20X.50 ZP
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 1762875

GRILLE

$

$

Currently unavailable

44

MTD 1762858010

COVER-SIDE LH

$

$

Not available

45

MTD 1762859010

COVER-SIDE RH

$

$

Not available

47

MTD 1727127

LATCH-RUBBER

$

$

Not available

48

MTD 1727126

CLIP

$

$

Not available

49

Troy-Bilt 1185985

NUT W/LKWASHER 10-24 ZP
(Superseded to 712-0272)

$3.99

$

In Stock, only 1 left!

0

50

MTD 1764657

SUPPORT-HOOD ROD

$

$

Not available

52

MTD 1762856010

ASSM-HOOD

$

$

Not available

53

MTD 1756876

DECAL-SVC INST

$

$

Not available

55

Troy-Bilt 1107381

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

56

MTD 1753039

PANEL-INSTRUCTION

$

$

Not available

57

MTD 1755931

DECAL-THROTTLE

$

$

Not available

58

MTD 1756739

CAP {13064}

$

$

Not available

59

MTD 1755932

DECAL-IGNITION

$

$

Not available

61

MTD 1758766

BLOCK-SEALING {13065,13066}

$

$

Not available

65

MTD 1757366

DECAL-FUEL

$

$

Not available

67

Troy-Bilt 1186469

SCR-CARR 5/16-18X.75
(Superseded to 710-0451)

$3.99

$

In Stock, Qty 20+

0

68

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$2.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 1701055

WASHER-FLAT 1.25X.406X.179

$5.99

$

Usually ships in 3-6 days

0

70

Troy-Bilt 1755449

SPRING-COMPRESSION

$

$

Not available

71

MTD 1759102

DECAL-LOGO FENDER

$

$

Not available

72

Troy-Bilt 1706782

WASHER-BOW .74X.52X.01

$2.49

$

In Stock, only 1 left!

0

73

MTD 1705793

WASHER-1.06X.51X.09 NYLON

$

$

Not available

74

Troy-Bilt 1754125

SCR-SHLDR 3/8-16X.25 G5ZP

$6.49

$

In Stock, Qty 7

0

75

MTD 1760963001

ASSM-SEAT SUPPORT

$

$

Not available

77

MTD 1753911

BLOCK-PIVOT

$

$

Not available

78

Troy-Bilt 1757939

DECAL-SIDECVR LH RED

$

$

Currently unavailable

78

MTD 1757938

DECAL-SIDECVR RH RED

$

$

Not available

79

MTD 1900333

DECAL-U.S.A.

$

$

Not available

80

Troy-Bilt 1723384

WASHER-1.5X.343X.104
(Superseded to 736-3089)

$

$

Not available

81

Troy-Bilt 1100799

SCR-HH 5/16-18X1.5 G5 ZP
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

83

MTD 1764597001

ASSM-SUPPORT LH

$

$

Not available

84

MTD 1764598001

ASSM-SUPPORT RH

$

$

Not available

85

MTD 1757542

CLIP

$

$

Not available

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$22.99

$

Usually ships in 3-6 days

0
