13076 - Troy-Bilt Garden Tractor, Hydro Drive (SN: 130760100101 & Above) FRAME & STEERING Parts Diagram

Garden Tractor, Hydro Drive

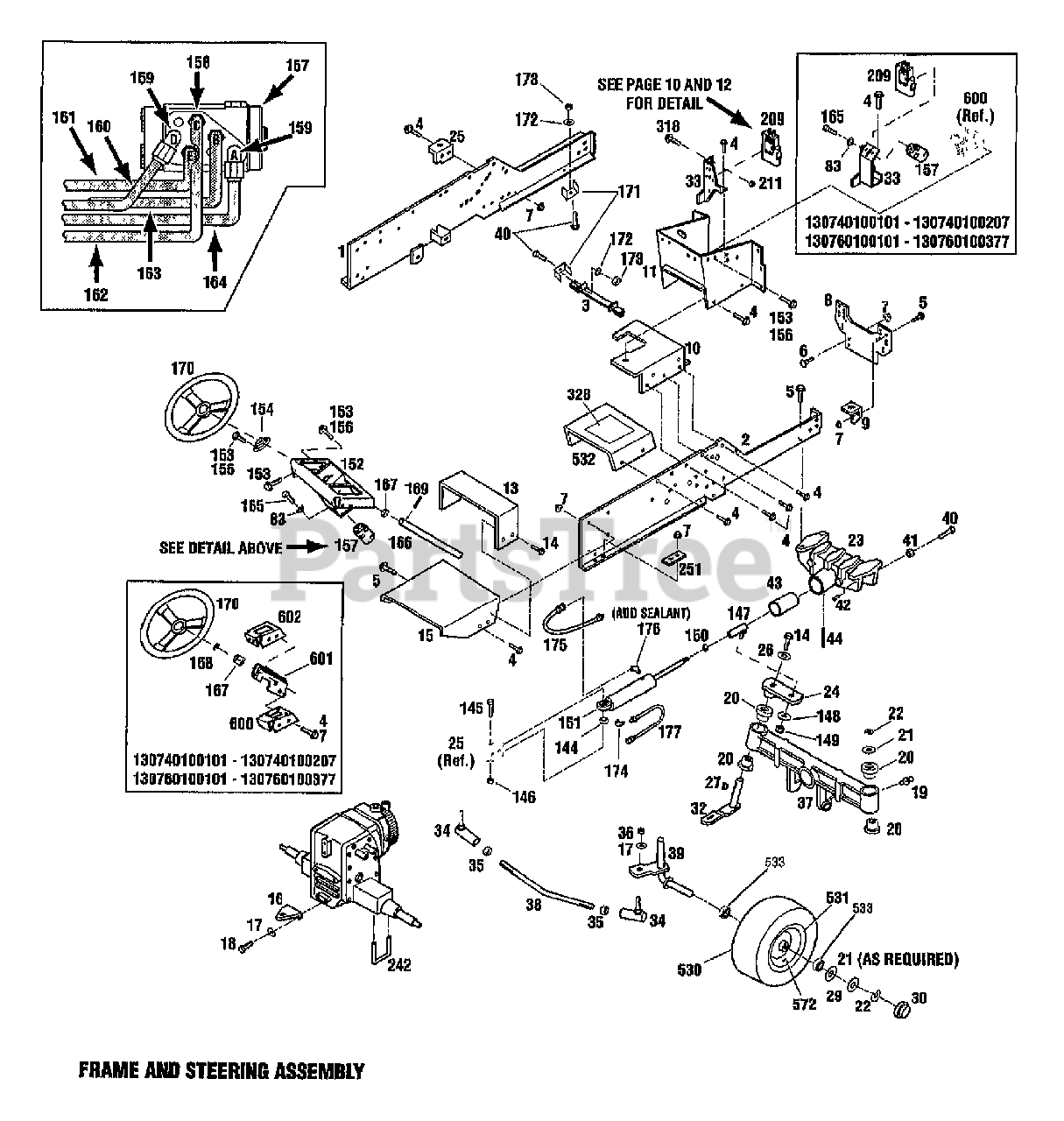

FRAME & STEERING Parts Diagram

  • Title

1

Troy-Bilt 1755513010

ASSM-FRAME

$

$

Currently unavailable

2

Troy-Bilt 1752634010

ASSM-FRAME

$

$

Currently unavailable

3

MTD 1767392

ASSM-FRAME SUPPORT

$

$

Not available

4

MTD 1186345

SCR

$

$

Not available

5

Troy-Bilt 1186347

SCR-HFLK 3/8-16X1.00 ZP
(Superseded to 710-04042)

$4.49

$

In Stock, only 4 left!

0

6

MTD 1739656

SCR-CARR 3/8-16X.75 G5 ZP

$

$

Not available

7

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$2.99

$

Usually ships in 3-6 days

0

8

MTD 1752665001

PLATE-FRONT

$

$

Not available

9

MTD 1752746001

SUPPORT-ENGINE

$

$

Not available

10

MTD 1767278001

SUPT-BATTERY ASSM

$

$

Not available

11

MTD 1755514010

SUPPORT

$

$

Not available

13

MTD 1756513001

SUPPORT-FENDER

$

$

Not available

14

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$3.99

$

In Stock, only 2 left!

0

15

MTD 1756512001

SUPPORT-FUEL TANK

$

$

Not available

16

MTD 1724698001

HITCH-DRAWBAR

$

$

Not available

17

Troy-Bilt 1100245

WASHER-LK .5
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 1100055

SCR-HH 1/2-13X1.25 G5 ZP
(Superseded to 710-3032)

$6.49

$

Usually ships in 3-6 days

0

19

Troy-Bilt 1185976

FITTING-GREASE 1/4-28X2.00
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

20

MTD 1752556

BEARING-FLANGE

$

$

Not available

21

Troy-Bilt 1703073

WASHER-THRUST
(Superseded to 1915058)

$

$

Not available

22

MTD 1185689

RING-HEAVY EXT HD 1.0 ID

$

$

Not available

23

MTD 1754321001

BOLSTER-FRONT AXLE

$

$

Not available

24

MTD 1752797001

ARM-STEERING

$

$

Not available

25

MTD 1751629001

BRKT-CYLINDER

$

$

Not available

26

MTD 1186033

WASHER-1.75X.328X.1345

$

$

Not available

27

MTD 1186034

KEY-WOODRUFF .25X.875

$

$

Not available

29

Troy-Bilt 1766242

WASHER-SPECIAL .75X2.5

$

$

Not available

30

MTD 1766215

CAP-HUB

$

$

Not available

32

Troy-Bilt 1752518001

SPINDLE-WHEEL LEFT
(Superseded to 1752518)

$

$

Not available

33

Troy-Bilt 1767281001

SUPPORT-VALVE

$

$

Currently unavailable

33

MTD 1771762001

SUPPORT ASSM-VALVE

$

$

Not available

34

Troy-Bilt 1713361

JOINT-BALL
(Superseded to 923-0179)

$39.99

$

In Stock, only 2 left!

0

35

Troy-Bilt 1186247

NUT-JAM
(Superseded to 712-3029)

$6.49

$

In Stock, Qty 8

0

36

Troy-Bilt 1110152

NUT-H/LK 1/2-20 ZP
(Superseded to 912-0239)

$

$

Not available

37

MTD 1757627001

AXLE-FRONT

$

$

Not available

38

MTD 1746138

ROD-TIE

$

$

Not available

39

MTD 1752520

SPINDLE-WHEEL RH

$

$

Not available

40

Troy-Bilt 1100045

SCR-HH 5/16-18X1.0 G5 ZP
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 17

0

41

Troy-Bilt 1186258

NUT-HEX JAM 5/16-18
(Superseded to 712-3007)

$6.49

$

In Stock, Qty 6

0

42

MTD 1751219

PIN-WELD

$

$

Not available

43

MTD 1744374

TUBE-PIVOT AXLE

$

$

Not available

44

MTD 1733103

PIN-.312X.75

$

$

Not available

83

Troy-Bilt 1100241

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

144

MTD 1759293

SLEEVE-CYLINDER

$

$

Not available

145

MTD 1107073

SCR-HH 5/8-11X3.0 G5

$

$

Not available

146

Troy-Bilt 1110112

NUT-LOCK
(Superseded to 912-0261)

$

$

Not available

147

MTD 1719003

JOINT-BALL

$

$

Not available

148

MTD 1100247

WASHER-LK 1.072X.634X.156

$

$

Not available

149

Troy-Bilt 1110297

NUT-LK TOP 5/18-18
(Superseded to 712-3063)

$7.99

$

Usually ships in 3-6 days

0

150

Troy-Bilt 1186249

NUT-HEX/JAM 5/8-18 ZP
(Superseded to 712-3056)

$4.49

$

In Stock, Qty 11

0

151

MTD 1751627001

CYLINDER-HYDRAULIC

$

$

Not available

152

MTD 1771350001

BRKT

$

$

Not available

153

Troy-Bilt 1186328

SCR-HFLK 5/16-18X.62 G5ZP
(Superseded to 710-04049)

$4.49

$

In Stock, Qty 14

0

154

MTD 1736440

BRG-FLANGE

$

$

Not available

?155

MTD 1185872

SCR-TRUSS HD 5/16-18X.62

$

$

Not available

156

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

157

Troy-Bilt 1767378

CONTROL UNIT

$

$

Currently unavailable

158

MTD 1717563

CONNECTOR

$

$

Not available

159

Troy-Bilt 1185737

ELBOW
(Superseded to 727-3012)

$24.99

$

In Stock, only 4 left!

0

160

Troy-Bilt 1767742

TUBE-HYD RIGHT

$

$

Currently unavailable

161

MTD 1767741

TUBE-HYD PB VALVE

$

$

Not available

162

MTD 1767740

TUBE-HYDRO PRESSURE

$

$

Not available

163

Troy-Bilt 1767743

TUBE-HYD LEFT

$

$

Currently unavailable

164

MTD 1767536

TUBE-HYD S C U TANK

$

$

Not available

164

MTD 1767746

TUBE-HYD S C U TANK

$

$

Not available

165

Troy-Bilt 1860203

SCR-HH M6-1.0X19MM

$

$

Currently unavailable

166

MTD 1767383

SHAFT-STEERING

$

$

Not available

167

MTD 1185632

BEARING-FLANGED NYLON

$

$

Not available

167

MTD 1800417

COLLAR

$

$

Not available

168

Troy-Bilt 1185388

RING-RET."E".577 ID
(Superseded to 916-0231)

$

$

Not available

169

Troy-Bilt 1703822

PIN-DRIVE .25X1.5

$

$

Currently unavailable

170

Troy-Bilt 1753279

WHEEL-STEERING

$

$

Currently unavailable

171

MTD 1722667

CLAMP

$

$

Not available

172

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

173

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

174

MTD 1185739

ELBOW

$

$

Not available

175

MTD 1752649

ASSM-HOSE

$

$

Not available

175

MTD 1755198

ASSM-HOSE

$

$

Not available

176

MTD 1756142

ELBOW

$

$

Not available

177

MTD 1754364

ASSM-HOSE

$

$

Not available

177

MTD 1755198

ASSM-HOSE

$

$

Not available

209

MTD 1767393

VALVE-HYDRAULIC

$

$

Not available

209

MTD 1767394

VALVE-HYDRAULIC

$

$

Not available

211

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

242

MTD 1727898

BOLT-U

$

$

Not available

251

MTD 1730692001

DOUBLER-FRAME REAR

$

$

Not available

318

Troy-Bilt 1186309

SCR-HH 1/4-20X.625

$

$

Not available

328

MTD 1767130

DECAL-OPERATING INST

$

$

Not available

530

Troy-Bilt 1768792

TIRE-16X6.50-8
(Superseded to 734-0275-0902)

$

$

Not available

531

MTD 1767101

WHEEL

$

$

Not available

532

Troy-Bilt 1767113

TUNNEL W/DECAL

$

$

Currently unavailable

533

Troy-Bilt 1756524

BEARING-BALL

$80.99

$

Usually ships in 3-6 days

0

572

Troy-Bilt 1718086

STEM-VALVE
(Superseded to 934-0255)

$3.99

$

In Stock, Qty 20+

0

600

Troy-Bilt 1755461

BRKT-STEERING

$

$

Currently unavailable

601

MTD 1769968001

SUPPORT-STEERING

$

$

Not available

602

MTD 1753777

STEERING BRACKET

$

$

Not available
