130782-0137-01 - Briggs & Stratton Vertical Engine Blower Hsg,Flywheel,Rewinds Parts Diagram

Vertical Engine

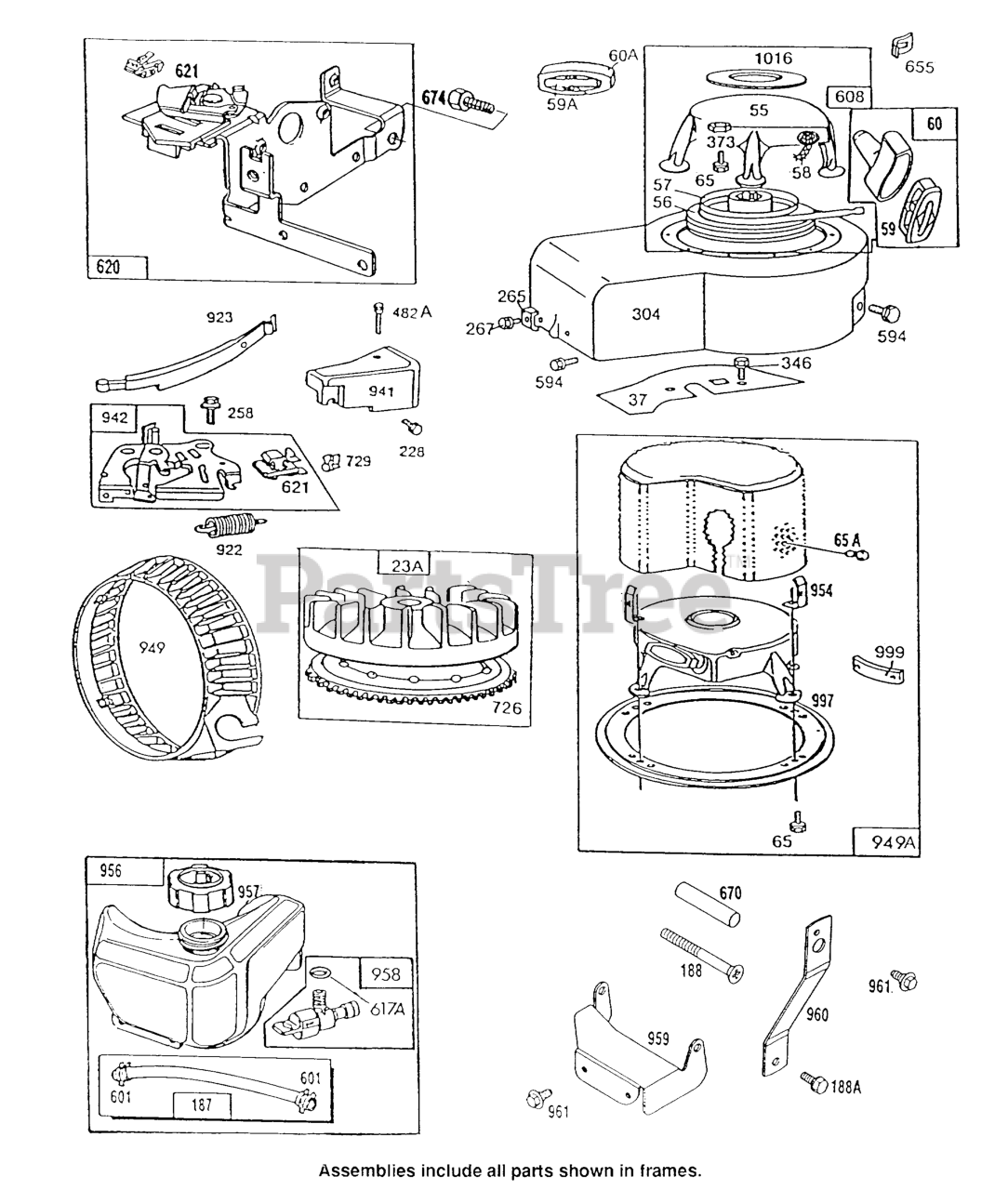

Blower Hsg,Flywheel,Rewinds Parts Diagram

  • Title

23A

Briggs & Stratton 493456

Flywheel

Note: (Inc Steel Ring Gear) Use w/Steel Pinion Starter

$219.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 222443

Guard-Flywheel
(Superseded to 691732)

$9.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 222579

Guard-Flywheel (Used On Engines With Electric Start)

$3.49

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 299431

Housing-Rewind Starter

$

$

Not available

56

Briggs & Stratton 295871

Pulley-Starter (Includes 63" Rope)

$14.99

$

In Stock, only 3 left!

0

57

Briggs & Stratton 490179

Spring-Rewind Starter

$14.99

$

In Stock, Qty 12

0

58

Briggs & Stratton 280406

Rope, Starter (81" Cut To Required Length)
(Superseded to 280406S)

Note: Used on Engines With Band Brake.

$8.49

$

In Stock, only 2 left!

0

58

Briggs & Stratton 66884

Rope, Starter (63" Cut To Required Length)
(Superseded to 692188)

$8.49

$

In Stock, only 3 left!

0

58

Briggs & Stratton 66894

Rope-Starter (99" Cut To Required Length)
(Superseded to 695002)

Note: If Longer Rope is Required, Order Rope and Cut to Required Length.

$8.49

$

Usually ships in 2-12 days

0

59A

Briggs & Stratton 230228

Pin-Starter Rope
(Superseded to 230228S)

$3.99

$

In Stock, Qty 5

0

59

Briggs & Stratton 490653

Insert-Starter Rope
(Superseded to 490652)

$5.49

$

In Stock, Qty 8

0

60A

Briggs & Stratton 66728

Grip-Starter Rope.
(Superseded to 490652)

$5.49

$

In Stock, Qty 8

0

60

Briggs & Stratton 490652

HANDLE, Starter Rope

$5.49

$

In Stock, Qty 8

0

65A

Briggs & Stratton 94018

Screw, Machine Hex
(Superseded to 690859)

$3.99

$

In Stock, Qty 8

0

65

Briggs & Stratton 93067

Screw, Sem Hex Head (3/8" Long)
(Superseded to 691082)

$4.99

$

In Stock, only 1 left!

0

65

Briggs & Stratton 94128

Screw-Stamped Steel Housing Mtg. Sem
(Superseded to 690837)

Note: Used on Engines with Bolted Rewind.

$3.49

$

In Stock, Qty 18

0

187

Briggs & Stratton 299146

Line-Fuel (28" Cut To Required Length)
(Superseded to 841589)

$38.99

$

Usually ships in 2-12 days

0

188A

Briggs & Stratton 93559

Screw-Tank To Bracket
(Superseded to 690810)

$3.49

$

In Stock, Qty 5

0

188

Briggs & Stratton 94416

Screw-Hex. Hd.

$8.49

$

Usually ships in 2-12 days

0

228

Briggs & Stratton 93758

Screw, Hex Wash Hd
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

258

Briggs & Stratton 94018

Screw, Machine Hex
(Superseded to 690859)

$3.99

$

In Stock, Qty 8

0

265

Briggs & Stratton 221535

Clamp, Casing (Stamped Steel)
(Superseded to 691024)

$3.99

$

In Stock, only 1 left!

0

267

Briggs & Stratton 94204

Screw-Hex. Head
(Superseded to 691044)

$3.99

$

In Stock, Qty 11

0

304

Briggs & Stratton 490192

Housing-Blower

$22.99

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 20+

0

373

Briggs & Stratton 92987

Nut, Hex Mach
(Superseded to 690800)

$3.99

$

In Stock, only 3 left!

0

482A

Briggs & Stratton 93621

Screw, Tapping Hex
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

594

Briggs & Stratton 93559

Screw-Tank To Bracket
(Superseded to 690810)

$3.49

$

In Stock, Qty 5

0

601

Briggs & Stratton 93053

Clamp, Hose (Green)
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

608

Briggs & Stratton 390463

Starter-Rewind

$139.99

$

Usually ships in 2-12 days

0

617A

Briggs & Stratton 280203

Seal-O
(Superseded to 691898)

$5.49

$

In Stock, only 4 left!

0

620

Briggs & Stratton 490195

Bracket-Carburetor

$38.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 396847

Switch, Stop Assy
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

655

Briggs & Stratton 222598

Insert, Spring
(Superseded to 691734)

Note: (For Stamped Rewind Housing)

$4.99

$

Usually ships in 2-12 days

0

670

Briggs & Stratton 231553

Spacer-Tank

$2.49

$

Usually ships in 2-12 days

0

674

Briggs & Stratton 94117

Screw-Tank To Bracket
(Superseded to 791680)

$3.99

$

In Stock, only 2 left!

0

726

Briggs & Stratton 494548

Gear-Ring (Includes Mtg. Hardware)

$83.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 280470

Clip-Wire
(Superseded to 690586)

$3.99

$

In Stock, only 3 left!

0

922

Briggs & Stratton 261647

Spring-Return
(Superseded to 691809)

$8.49

$

Usually ships in 2-12 days

0

923

Briggs & Stratton 394867

Pivot-Band Brake

$39.99

$

Usually ships in 2-12 days

0

941

Briggs & Stratton 280395

Cover-Linkage

$

$

Not available

942

Briggs & Stratton 493248

Bracket-Brake

$10.99

$

Usually ships in 2-12 days

0

949A

Briggs & Stratton 399802

Screen-Debris

Note: Used Before Code Date 90032700

$44.99

$

Usually ships in 2-12 days

0

949A

Briggs & Stratton 493945

Screen-Debris

Note: Used After Code Date 90032600

$60.99

$

Usually ships in 2-12 days

0

949

Briggs & Stratton 280680

Guard-Rewind

$37.99

$

Usually ships in 2-12 days

0

954

Briggs & Stratton 223491

Bracket-Mtg.

Note: Used Before Code Date 90032700

$5.99

$

Usually ships in 2-12 days

0

954

Briggs & Stratton 224471

Bracket-Mounting

Note: Used After Code Date 90032600

$7.99

$

Usually ships in 2-12 days

0

956

Briggs & Stratton 491097

Tank-Fuel

$70.99

$

Usually ships in 2-12 days

0

957

Briggs & Stratton 397974

Cap, Tank Assy (Plastic)
(Superseded to 796577)

$16.99

$

In Stock, Qty 11

0

958

Briggs & Stratton 399517

Vlv-Shut Off Plas (Plastic)
(Superseded to 698182)

$

$

Not available

959

Briggs & Stratton 223947

Bracket-Fuel Tank

$14.99

$

Usually ships in 2-12 days

0

960

Briggs & Stratton 224082

Bracket-Fuel Tank

$12.99

$

Usually ships in 2-12 days

0

961

Briggs & Stratton 94357

Screw-Shoulder
(Superseded to 692199)

$3.49

$

In Stock, only 2 left!

0

997

Briggs & Stratton 223490

Shield-Debris

$6.99

$

Usually ships in 2-12 days

0

999

Briggs & Stratton 212980

Spacer-Oil Tube

$5.99

$

Usually ships in 2-12 days

0

1016

Briggs & Stratton 490817

Spacer=rewind

$9.49

$

In Stock, only 2 left!

0
