13085 - Troy-Bilt Lawn Tractor, Hydro Drive (SN: 130850100101 & Above) LIFT ASSEMBLY Parts Diagram

Lawn Tractor, Hydro Drive

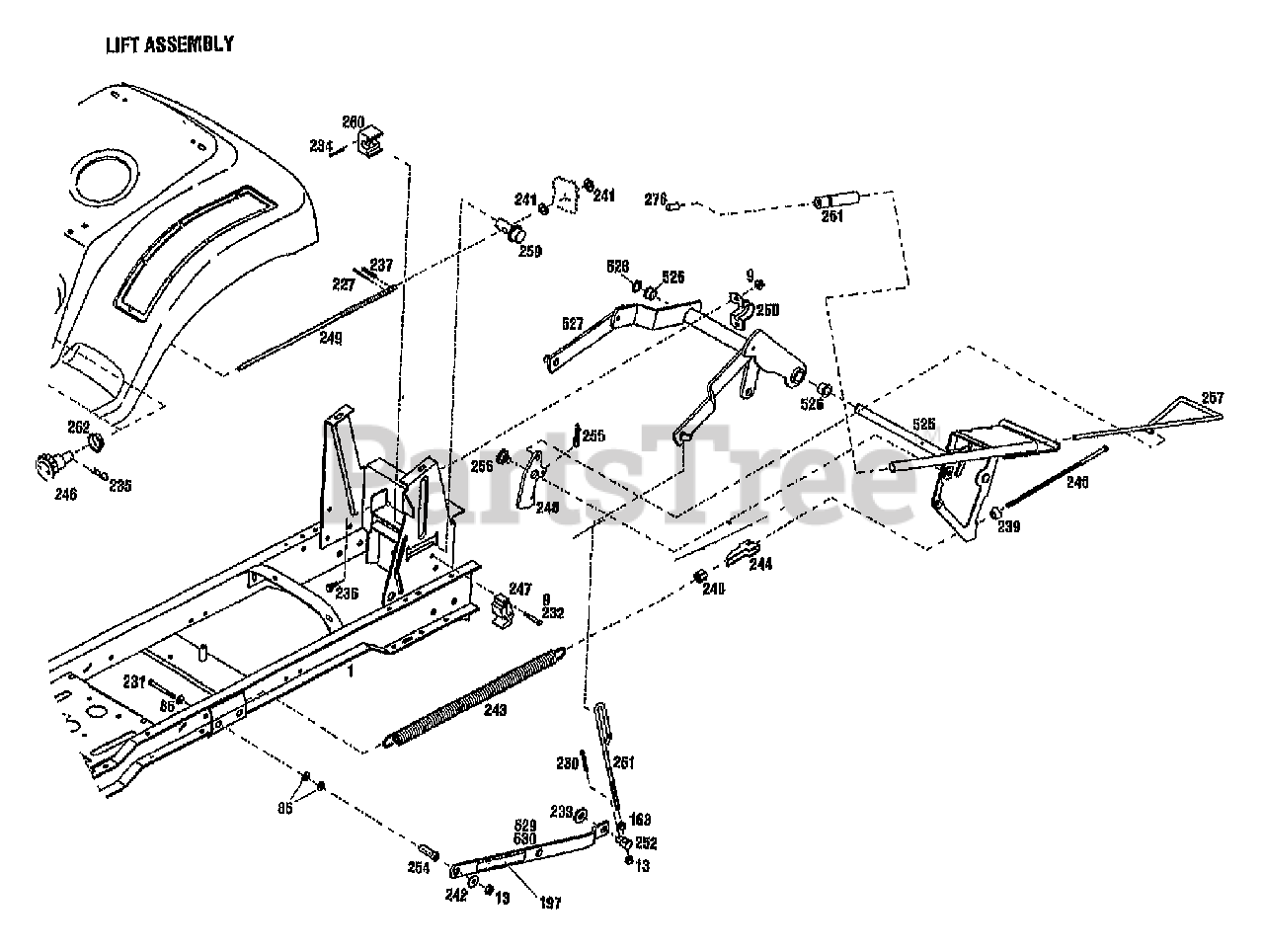

LIFT ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1765435001

ASSM-FRAME LTX
(Superseded to 1772924001)

$

$

Not available

9

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 8

0

85

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

163

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 13

0

197

MTD 1767877

DECAL-WARNING

$

$

Not available

227

Troy-Bilt 1100349

PIN-COTTER .125 X .75 ZP
(Superseded to 914-0474)

$

$

Not available

230

MTD 1100351

PIN-COTTER .120X1.25 ZP

$

$

Not available

231

Troy-Bilt 1111614

SCR-HH 3/8-16X3.0 G5 ZP
(Superseded to 710-0521)

$5.49

$

In Stock, Qty 8

0

232

Troy-Bilt 1100799

SCR-HH 5/16-18X1.5 G5 ZP
(Superseded to 710-0805A)

$4.99

$

In Stock, Qty 20+

0

233

Troy-Bilt 1107386

WASHER-1.305X.649X.098 ZP
(Superseded to 736-0237)

$4.49

$

In Stock, Qty 20+

0

234

MTD 1185376

PIN-DRIVE

$

$

Not available

235

MTD 1817091

PIN-HITCH

$

$

Not available

236

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$4.99

$

In Stock, only 2 left!

0

237

Troy-Bilt 1187961

PIN-ROLL .156X1.0
(Superseded to 915-0249)

$7.49

$

In Stock, Qty 19

0

239

MTD 1714521

BEARING-SPHERICAL

$

$

Not available

240

MTD 1717942

NUT-SPECIAL 5/16-18

$

$

Not available

241

Troy-Bilt 1738490

SPACER

$

$

Not available

242

Troy-Bilt 1763355

WASHER-1.5X.375X.18 ZP
(Superseded to 936-0227)

$

$

Not available

243

MTD 1765445

SPRING-LIFT ASSIST

$

$

Not available

244

MTD 1765457

BRKT-LIFT ASSIST

$

$

Not available

245

MTD 1765458

SCR-LIFT ASSIST

$

$

Not available

246

MTD 1765485

KNOB-HEIGHT ADJUST

$

$

Not available

247

MTD 1766028

BLOCK-DETENT

$

$

Not available

248

MTD 1766029001

LATCH

$

$

Not available

249

MTD 1766048

KIT-SVC SCR HGT ADJ

$

$

Not available

250

MTD 1766057

CLAMP-LIFT

$

$

Not available

251

Troy-Bilt 1766058

ROD-LIFT

$

$

Currently unavailable

252

Troy-Bilt 1766059

SWIVEL-LIFT REAR

$

$

Not available

254

MTD 1766080

SPACER

$

$

Not available

255

MTD 1766174

SPRING-EXTENSION

$

$

Not available

256

MTD 1766175

SCR-SHOULDER

$

$

Not available

257

MTD 1766178

ROD

$

$

Not available

259

MTD 1766257

BLOCK-HEIGHT ADJUST

$

$

Not available

260

MTD 1766259

COLLAR-HEIGHT ADJUST

$

$

Not available

261

MTD 1766340

GRIP-LIFT

$

$

Not available

262

MTD 1766346

GROMMET-SNAP BUSHING

$

$

Not available

276

Troy-Bilt 1767880

BUTTON-LIFT
(Superseded to 1772865)

$

$

Not available

525

MTD 1766032001

HANDLE-LIFT

$

$

Not available

526

Troy-Bilt 1764140

BUSHING

$5.49

$

In Stock, Qty 7

0

527

MTD 1766068001

LIFT

$

$

Not available

528

Troy-Bilt 1185649

RING-RETAINING EXT .694 ID

$

$

Not available

529

MTD 1768718

LINK-LIFT W/DECAL

$

$

Not available

530

Troy-Bilt 1768717

LINK-LIFT W/DECAL

$

$

Not available

?600

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$32.99

$

In Stock, only 1 left!

0

?601

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$25.99

$

Usually ships in 3-6 days

0
