130r (41AC130A034) - Ryobi String Trimmer, Electric Boom And Trimmer Parts Parts Diagram

String Trimmer, Electric

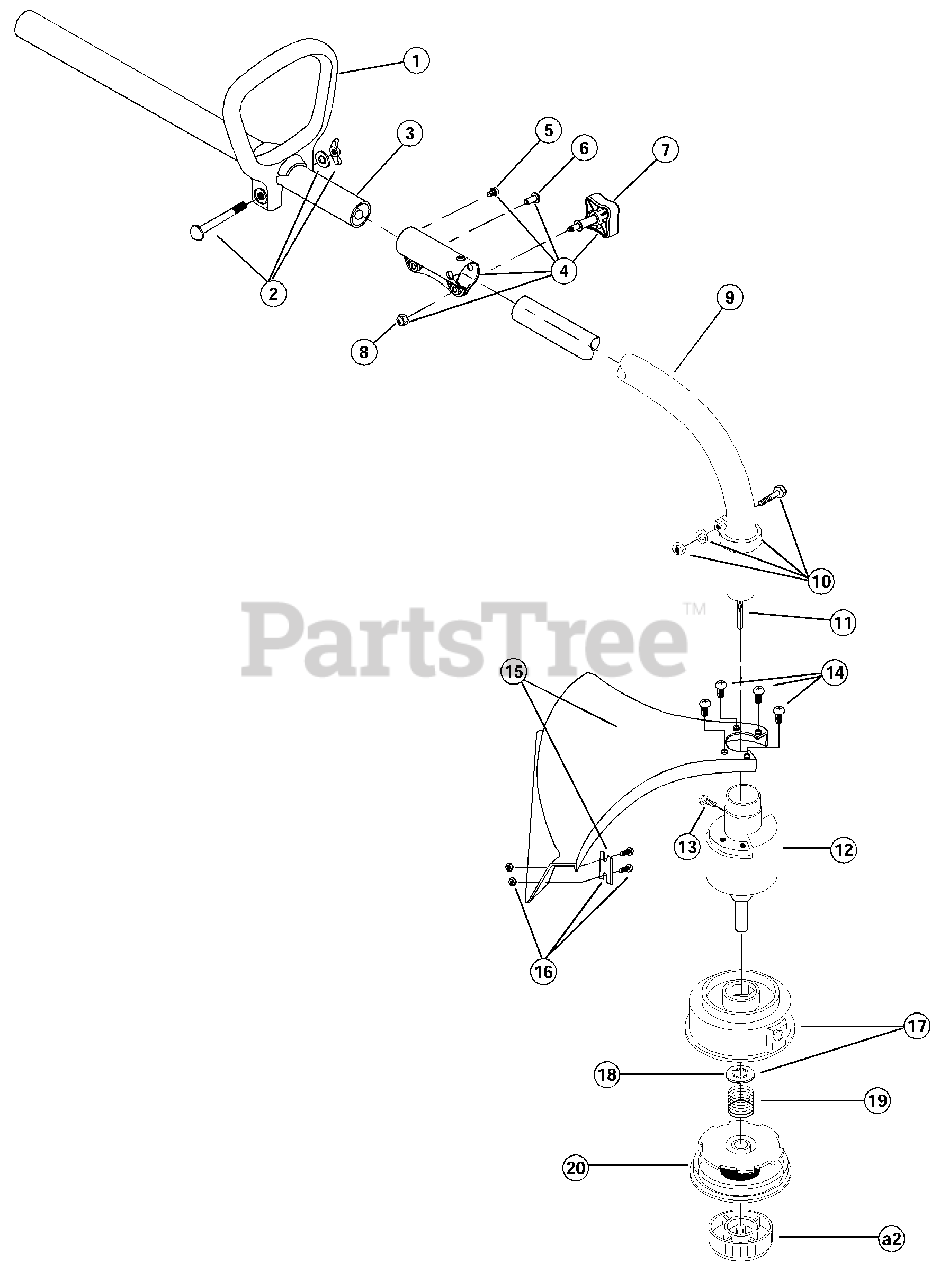

Boom And Trimmer Parts Parts Diagram

  • Title

1

MTD 791-153064

D-Handle

Note: (includes 2)

$

$

Not available

2

MTD 791-181587

D-Handle Hardware Assembly

$18.99

$

In Stock, only 1 left!

0

3

MTD 753-04345

Upper Drive Shaft Housing Assembly

$

$

Not available

4

MTD 791-181616B

Split-Boom Coupler
(Superseded to 753-1190)

Note: (includes 5-8)

$21.99

$

In Stock, Qty 6

0

5

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 20+

0

6

MTD 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

7

MTD 791-181618

Adjustment Knob
(Superseded to 791-181981)

$7.49

$

In Stock, only 1 left!

0

8

MTD 791-181886

Knob Retaining Nut

$3.49

$

In Stock, only 4 left!

0

9

MTD 791-180340

Lower Drive Shaft Housing Assembly
(Superseded to 753-1218)

$98.99

$

Usually ships in 3-6 days

0

10

MTD 791-153597

Lower Clamp Assembly

Note: (includes 13)

$15.99

$

Usually ships in 3-6 days

0

11

MTD 791-181852

Flexible Drive Shaft

$58.99

$

Usually ships in 3-6 days

0

12

MTD 791-181784

Bushing Housing Assembly w/shaft

$

$

Not available

13

MTD 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 11

0

14

MTD 791-180531

Guard Mounting Screw Assembly
(Superseded to 791-181858)

$

$

Not available

15

MTD 791-683274

Guard and Blade Assembly

$36.99

$

In Stock, only 4 left!

0

16

MTD 791-682061

Blade Assembly

$14.99

$

In Stock, Qty 5

0

17

MTD 791-153619

Outer Spool Assembly w/ Retainer

$26.99

$

In Stock, only 1 left!

0

18

MTD 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

19

MTD 791-610317B

Spring

$10.99

$

In Stock, Qty 20+

0

20

MTD 791-610318

Inner Reel
(Superseded to 753-1155)

$21.99

$

In Stock, Qty 20+

0

21

MTD 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 20+

0

MTD 791-610375

.080" Replacement Line, 50 ft.

Note: Optional Accessory; not shown

$

$

Not available

MTD 791-153577

Reel and Line Assembly
(Superseded to 791-153577B)

Note: Optional Accessory; not shown

$26.99

$

In Stock, only 4 left!

0

MTD 791-147823

Complete Cutting Head Assembly

Note: (includes 10, 12-21); Optional Accessory; not shown

$

$

Not available
