13101 - Troy-Bilt Hydro GTX Garden Tractor (SN: 131010100101 & Above) BODYWORK & TRIM ASSEMBLY Parts Diagram

Hydro GTX Garden Tractor

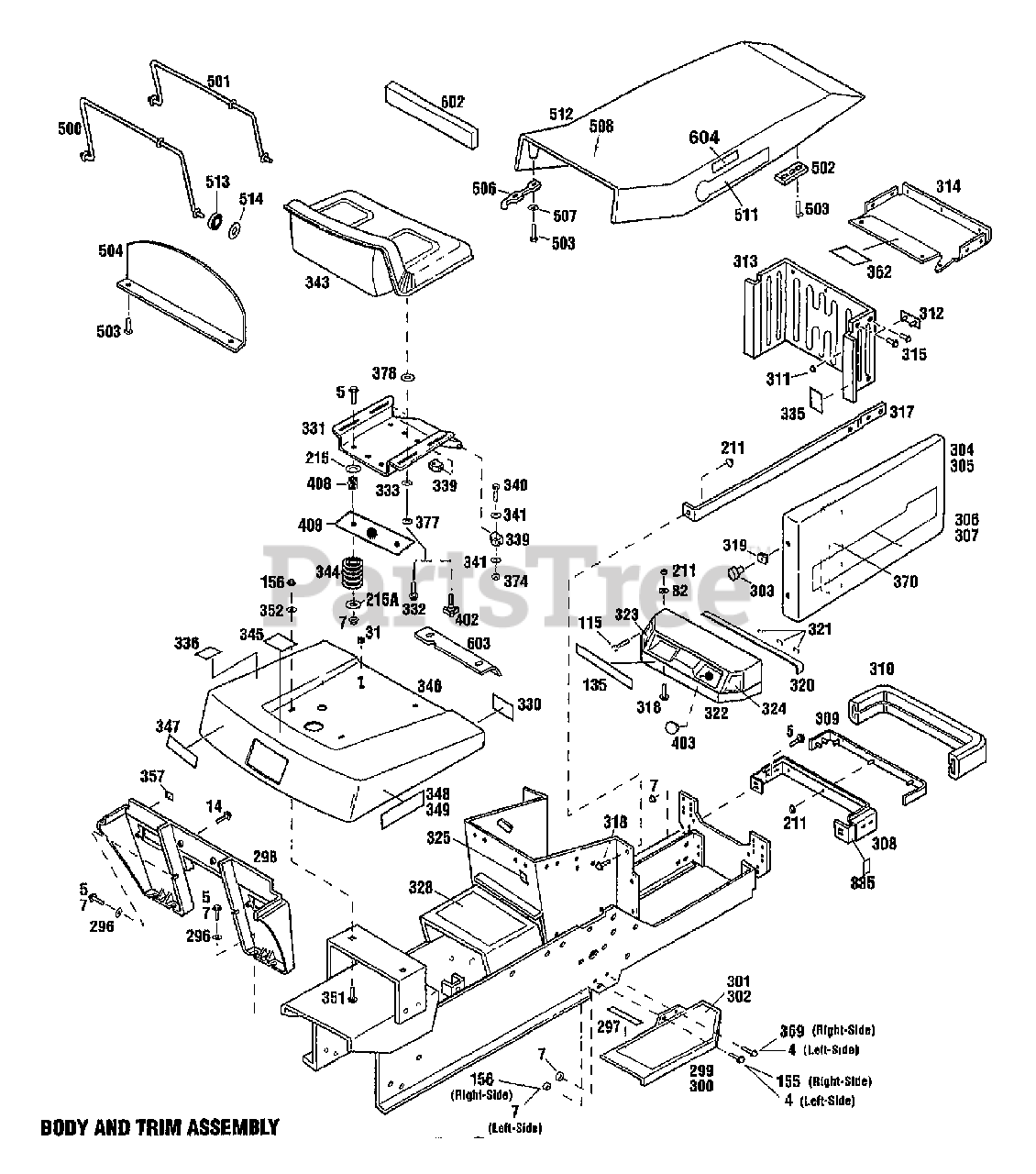

BODYWORK & TRIM ASSEMBLY Parts Diagram

  • Title

4

MTD 1186345

SCR

$

$

Not available

5

Troy-Bilt 1186347

SCR-HFLK 3/8-16X1.00 ZP
(Superseded to 710-04042)

$4.49

$

In Stock, only 4 left!

0

7

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$2.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$3.99

$

In Stock, only 2 left!

0

31

MTD 1766264

GROMMET

$

$

Not available

82

Troy-Bilt 1107381

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

115

MTD 1186020

SCR-PHP M6-32X.38 ZP

$

$

Not available

135

MTD 1772197

LENSE

$

$

Not available

155

MTD 1185872

SCR-TRUSS HD 5/16-18X.62

$

$

Not available

156

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

211

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

215

Troy-Bilt 1701055

WASHER-FLAT 1.25X.406X.179

$5.99

$

Usually ships in 3-6 days

0

215A

UNKNOWN

$

$

Not available

296

Troy-Bilt 1100256

WASHER-.986X.437X.083 ZP
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

297

MTD 1755522

CUSHION

$

$

Not available

298

MTD 1772058

SUPT-RUNNING BOARD

$

$

Not available

299

MTD 1752250010

FOOTREST-LH

$

$

Not available

300

MTD 1752251010

FOOTREST-RH

$

$

Not available

301

MTD 1752893

PAD-FOOTREST LH

$

$

Not available

302

MTD 1752894

PAD-FOOTREST RH

$

$

Not available

303

MTD 1770239

KNOB

$

$

Not available

304

Troy-Bilt 1769101010

COVER-LH

$

$

Currently unavailable

305

MTD 1769102010

COVER-RH

$

$

Not available

306

Troy-Bilt 1767261

DECAL-SIDE COVER LH

$

$

Currently unavailable

307

Troy-Bilt 1767262

DECAL-SIDE COVER RH

$

$

Currently unavailable

308

MTD 1752181010

ASSM-GRILLE SUPT

$

$

Not available

309

MTD 1755517

ASSM-BUMPER STRAP

$

$

Not available

310

MTD 1755518

BUMPER-EXTRUSION

$

$

Not available

311

MTD 1754126

NUT-PUSH

$

$

Not available

312

MTD 1770881

PLATE-LOGO

$

$

Not available

313

MTD 1755515001

GRILLE-TRACTOR

$

$

Not available

314

Troy-Bilt 1772697

CAP-GRILL

$

$

Currently unavailable

314

MTD 1755628001

CAP-GRILLE

$

$

Not available

315

MTD 1739918

RIVET-POP

$

$

Not available

317

MTD 1753783010

SUPPORT

$

$

Not available

318

Troy-Bilt 1186309

SCR-HH 1/4-20X.625

$

$

Not available

319

Troy-Bilt 1185986

NUT-SPEED #10
(Superseded to 712-0147)

$6.49

$

Usually ships in 3-6 days

0

320

MTD 1755516

PAD-HOOD

$

$

Not available

321

0

N/A

$

$

Not available

322

MTD 1772695

PANEL-INSTRUMENT

$

$

Not available

323

MTD 1755933

DECAL-CHOKE

$

$

Not available

324

MTD 1755931

DECAL-THROTTLE

$

$

Not available

325

MTD 1756775

DECAL-IGNITION

$

$

Not available

328

MTD 1767130

DECAL-OPERATING INST

$

$

Not available

330

MTD 1901900

DECAL-AMERICAN LEGEND-LRG

$

$

Not available

331

Troy-Bilt 1772577001

ASSM-SEAT SUPPORT

$

$

Currently unavailable

332

Troy-Bilt 1754125

SCR-SHLDR 3/8-16X.25 G5ZP

$6.49

$

In Stock, Qty 7

0

333

Troy-Bilt 1752069

WASHER-1.375X.523X.059
(Superseded to 936-0456)

$4.49

$

In Stock, Qty 10

0

335

UNKNOWN

$

$

Not available

336

UNKNOWN

$

$

Not available

339

MTD 1753911

BLOCK-PIVOT

$

$

Not available

340

Troy-Bilt 1100799

SCR-HH 5/16-18X1.5 G5 ZP
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

341

Troy-Bilt 1723384

WASHER-1.5X.343X.104
(Superseded to 736-3089)

$

$

Not available

343

MTD 1769514

SEAT (TRACTOR)

$

$

Not available

344

Troy-Bilt 1755449

SPRING-COMPRESSION

$

$

Not available

345

MTD 1757366

DECAL-FUEL

$

$

Not available

346

MTD 1769535010

FENDER-REAR

$

$

Not available

347

MTD 1759102

DECAL-LOGO FENDER

$

$

Not available

348

Troy-Bilt 1772060

DECAL-LEFT FENDER

$

$

Currently unavailable

349

MTD 1772061

DECAL-RIGHT FENDER

$

$

Not available

351

Troy-Bilt 1736098

BOLT-CARR 5/16-18X.63 ZP
(Superseded to 710-0260A)

$3.99

$

In Stock, Qty 20+

0

352

Troy-Bilt 1713233

WASHER-1.25X.343X.059
(Superseded to 736-0362)

$4.49

$

In Stock, Qty 20+

0

357

MTD 1761008

BUTTON-RUBBER

$

$

Not available

362

MTD 1769991

DECAL-HOT SURFACE

$

$

Not available

369

Troy-Bilt 1100068

SCR-HH 3/8-16X.75 G5 ZP
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

370

MTD 1753950

BLOCK-SEALING

$

$

Not available

374

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.49

$

In Stock, Qty 20+

0

377

Troy-Bilt 1706782

WASHER-BOW .74X.52X.01

$2.49

$

In Stock, only 1 left!

0

378

Troy-Bilt 1893445

WASHER-FLAT
(Superseded to 936-0133)

$

$

Not available

402

MTD 1734269

KNOB

$

$

Not available

403

MTD 1756739

CAP

$

$

Not available

?407

Troy-Bilt 1772578

SCR SHLDR

$

$

Currently unavailable

408

MTD 1748415

SPRING-COMPRESSION

$

$

Not available

?409

MTD 1772573001

CHANNEL-SEAT SWITCH

$

$

Not available

500

MTD 1752900

LINK-HINGE

$

$

Not available

501

MTD 1752901

LINK-HINGE

$

$

Not available

502

MTD 1752902

RETAINER-HINGE LINK

$

$

Not available

503

MTD 1185130

SCR-SEMS MACH

$

$

Not available

504

Troy-Bilt 1752903001

BAFFLE-HOOD

$

$

Currently unavailable

506

MTD 1727127

LATCH-RUBBER

$

$

Not available

507

Troy-Bilt 1736359

WASHER-.88X.2X.059

$

$

Not available

508

MTD 1767110

DECAL-SERVICE INST

$

$

Not available

511

MTD 1759100

DECAL-LOGO

$

$

Not available

512

MTD 1767105

ASSM-HOOD

$

$

Not available

513

MTD 1753792

GROMMET

$

$

Not available

514

Troy-Bilt 1753799

RETAINER
(Superseded to 726-0201)

$6.49

$

In Stock, Qty 20+

0

?600

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$

$

Not available

?601

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$22.99

$

Usually ships in 3-6 days

0

602

MTD 1744065

BLOCK-SEALING

$

$

Not available

603

Troy-Bilt 1772706

BRKT-DOUBLER

$

$

Currently unavailable

604

UNKNOWN

$

$

Not available
