13101 - Troy-Bilt Hydro GTX Garden Tractor (SN: 131010100101 & Above) LIFT ASSEMBLY Parts Diagram

Hydro GTX Garden Tractor

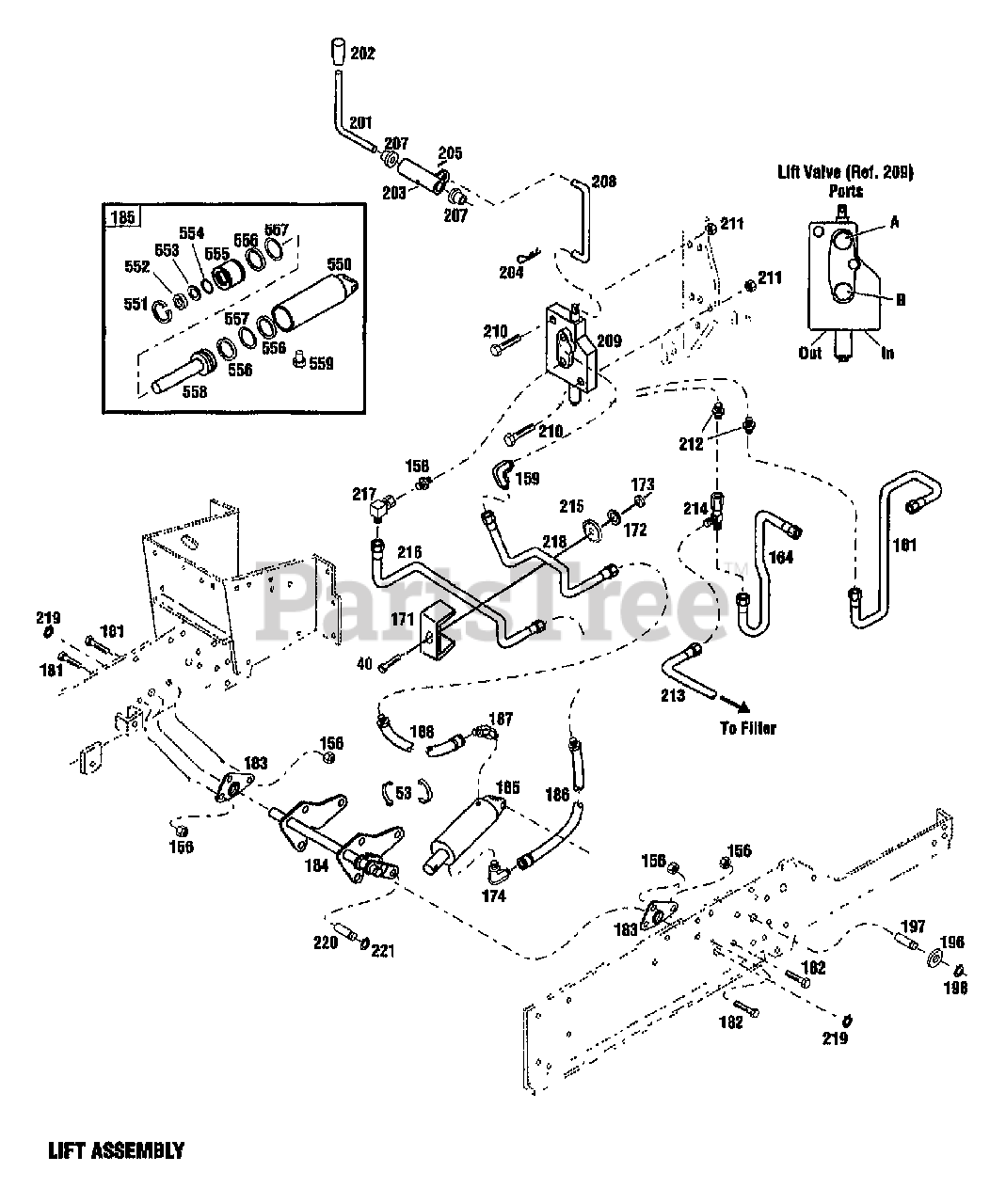

LIFT ASSEMBLY Parts Diagram

  • Title

40

Troy-Bilt 1100045

SCR-HH 5/16-18X1.0 G5 ZP
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 17

0

53

Troy-Bilt 1765531

LINER-CHUTE

$

$

Currently unavailable

156

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

158

MTD 1717563

CONNECTOR

$

$

Not available

159

Troy-Bilt 1185737

ELBOW
(Superseded to 727-3012)

$24.99

$

In Stock, only 4 left!

0

161

MTD 1767741

TUBE-HYD PB VALVE

$

$

Not available

164

MTD 1767536

TUBE-HYD S C U TANK

$

$

Not available

171

MTD 1722667

CLAMP

$

$

Not available

172

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

173

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

174

MTD 1185739

ELBOW

$

$

Not available

181

Troy-Bilt 1186330

SCR-LOCK
(Superseded to 710-04048)

$4.49

$

In Stock, Qty 7

0

182

Troy-Bilt 1186330

SCR-LOCK
(Superseded to 710-04048)

$4.49

$

In Stock, Qty 7

0

183

MTD 1767725

BEARING-LIFT SHAFT

$

$

Not available

184

MTD 1761400001

SHAFT

$

$

Not available

185

MTD 1747509

ASSM-CYL HYDRAULIC

$

$

Not available

186

MTD 1752648

ASSM-HOSE

$

$

Not available

187

MTD 1185903

ELBOW

$

$

Not available

188

MTD 1755198

ASSM-HOSE

$

$

Not available

196

Troy-Bilt 1708012

WASHER-1.5X.755X.062
(Superseded to 736-0188)

$3.99

$

In Stock, Qty 20+

0

197

MTD 1724703

PIN

$

$

Not available

198

Troy-Bilt 1113527

RING-RETAIN EXT .707 ID
(Superseded to 916-0101)

$3.49

$

In Stock, only 2 left!

0

201

MTD 1755460

LEVER-CONTROL

$

$

Not available

202

Troy-Bilt 1755473

KNOB-SHIFT LEVER
(Superseded to 920-0232)

$9.99

$

In Stock, only 4 left!

0

203

MTD 1771430

ARM-CONTROL

$

$

Not available

204

Troy-Bilt 1717897

PIN-CLIP .08

$3.49

$

Usually ships in 3-6 days

0

205

Troy-Bilt 1713457

PIN-DRIVE
(Superseded to 715-0120)

$9.99

$

In Stock, only 3 left!

0

207

MTD 1737018

BRG-FLANGE

$

$

Not available

208

MTD 1767406

LINK-VALVE

$

$

Not available

209

MTD 1767394

VALVE-HYDRAULIC

$

$

Not available

210

MTD 1186316

SCR-HFLK 1/4-20X2.00 G5ZP

$

$

Not available

211

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

212

MTD 1769391

CONNECTOR

$

$

Not available

213

MTD 1767537

TUBE-HYD RETURN

$

$

Not available

214

MTD 1762308

TEE-SWIVEL

$

$

Not available

215

Troy-Bilt 1701055

WASHER-FLAT 1.25X.406X.179

$5.99

$

Usually ships in 3-6 days

0

216

MTD 1767744

TUBE-HYD VALVE TO ROD

$

$

Not available

217

MTD 1727233

ELBOW

$

$

Not available

218

MTD 1767745

TUBE-HYD VALVE TO HEAD

$

$

Not available

219

Troy-Bilt 1118554

RING-RETAINING
(Superseded to 916-0102)

$4.99

$

In Stock, Qty 20+

0

220

MTD 1747512

PIN

$

$

Not available

221

Troy-Bilt 1118808

RING-RETAIN .625 ID

$

$

Not available

550

MTD 1729388

ASSM-CYL HYDRAULIC

$

$

Not available

551

Troy-Bilt 1118735

RING-RETAIN INT 2.210 DIA
(Superseded to 716-0188)

$

$

Not available

552

Troy-Bilt 1185266

SEAL-OIL
(Superseded to 921-0175)

$9.99

$

In Stock, Qty 20+

0

553

MTD 1186019

RING-BACK/UP

$

$

Not available

554

MTD 1177395

RING-O .984 ID

$

$

Not available

555

MTD 1724511

HEAD-CYLINDER

$

$

Not available

556

MTD 1186018

RING-BACK/UP

$

$

Not available

557

MTD 1186017

RING-O 1.6 ID

$

$

Not available

558

Troy-Bilt 1747043

ASSM-ROD HYDR CYLINDER

$

$

Currently unavailable

559

MTD 1186278

PLUG-PIPE

$

$

Not available

?560

MTD 1754414

KIT-SEAL

$

$

Not available
