13105 - Troy-Bilt Hydro LTX Lawn Tractor (SN: 131051200101 - 131051299999) 16 HP Engine Assembly Parts Diagram

Hydro LTX Lawn Tractor

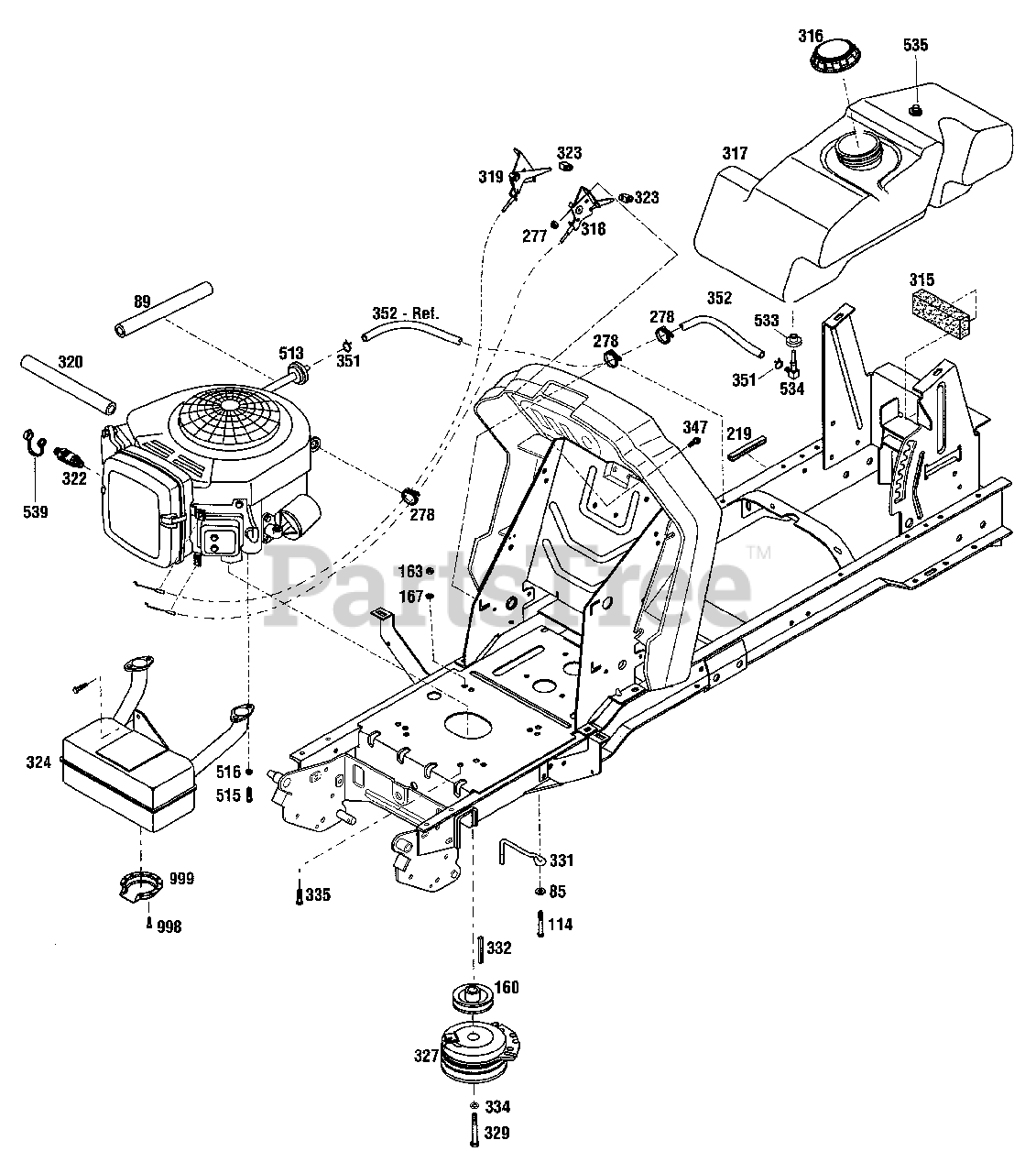

16 HP Engine Assembly Parts Diagram

  • Title

85

Troy-Bilt 1107383

Flat Washer, 318
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 9

0

89

MTD 1768830

Fuel Line Insulation

$

$

Not available

114

Troy-Bilt 1768194

Thread-Forming Screw, 318 x 1-1/2
(Superseded to 710-1007)

$6.99

$

In Stock, only 2 left!

0

160

Troy-Bilt 1766201

Engine Sheave

$

$

Currently unavailable

163

Troy-Bilt 1186231

Hex Nut, 3/8-16
(Superseded to 912-3017)

$4.49

$

Usually ships in 3-6 days

0

167

Troy-Bilt 1100243

Lockwasher, 3/8
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 10

0

219

MTD 1752694

Trim

$

$

Not available

277

Troy-Bilt 1185985

Keps Locknut,10-24
(Superseded to 712-0272)

$4.49

$

In Stock, only 2 left!

0

278

Troy-Bilt 1735531

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

315

MTD 1766341

Fuel Tank Pad

$

$

Not available

316

MTD 1766188

Fuel Cap

$

$

Not available

317

MTD 1772814

Fuel Tank

Note: (Incl. Refs. 533, 534 & 535)

$

$

Not available

318

MTD 1773575

Throttle Control

$

$

Not available

319

MTD 1773574

Choke Control

$

$

Not available

320

Troy-Bilt 1769006

Oil Drain Hose
(Superseded to 751-3141-14)

$12.99

$

In Stock, Qty 20+

0

322

Troy-Bilt 1768865

Oil Valve Assembly
(Superseded to 951-10517A)

Note: (Incl. Ref. 539)

$25.99

$

In Stock, Qty 18

0

323

MTD 1766121

Control Knob

$

$

Not available

324

Troy-Bilt 1772816A

Muffler (Twin Inlet)

$

$

Currently unavailable

327

Troy-Bilt 1772388

Electric Clutch
(Superseded to 917-1459)

$579.99

$

Usually ships in 3-6 days

0

329

Troy-Bilt 1744454

Hex Head Screw, 7/16-20 x 3-1/4
(Superseded to 710-0510)

$11.99

$

In Stock, only 2 left!

0

331

MTD 1772385

Clutch Retainer

$

$

Not available

332

Troy-Bilt 1104337

Square Key, 1/4 x 1-1/2
(Superseded to 714-0118)

$7.49

$

In Stock, only 3 left!

0

334

Troy-Bilt 1100244

Spring Lock Washer, 7/18
(Superseded to 936-0171)

$4.99

$

In Stock, only 4 left!

0

335

MTD 1762042

Hex Head Screw, 3/8-18 x 1

$

$

Not available

347

MTD 1773576

Machine Screw, 10-24 x 3/4

$

$

Not available

351

Troy-Bilt 1750687

Hose Clamp
(Superseded to 726-0205)

$4.49

$

In Stock, Qty 15

0

352

MTD 1767879

Fuel Line

$

$

Not available

513

Troy-Bilt 1727491

Fuel Filter
(Superseded to BS-298090S)

$5.49

$

In Stock, Qty 20+

0

515

Troy-Bilt 1100069

Hex Head Screw, 1/4-20 x 1
(Superseded to 710-0597)

$4.49

$

Usually ships in 3-6 days

0

516

Troy-Bilt 1100241

Lockwasher, 1/4
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 12

0

533

Troy-Bilt 1738433

Bushing
(Superseded to 935-0149)

$2.99

$

In Stock, Qty 20+

0

534

Troy-Bilt 1751477

Fuel Tank Show
(Superseded to 951-0171)

$21.99

$

In Stock, Qty 19

0

535

Troy-Bilt 1768804

Fuel Tank Vent
(Superseded to 737-0296)

$13.99

$

Usually ships in 3-6 days

0

539

MTD 1766326

Oil Drain Cap

$

$

Not available

998

Troy-Bilt 710-0148

Self Tapping Screw, #8-32 x 3/8

$4.49

$

In Stock, Qty 10

0

999

Troy-Bilt 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$14.99

$

In Stock, only 4 left!

0
