1312 G (1691658) - AGCO Rear-Engine Riding Mower, 12hp Differential & Front Wheels Group Parts Diagram

Rear-Engine Riding Mower, 12hp

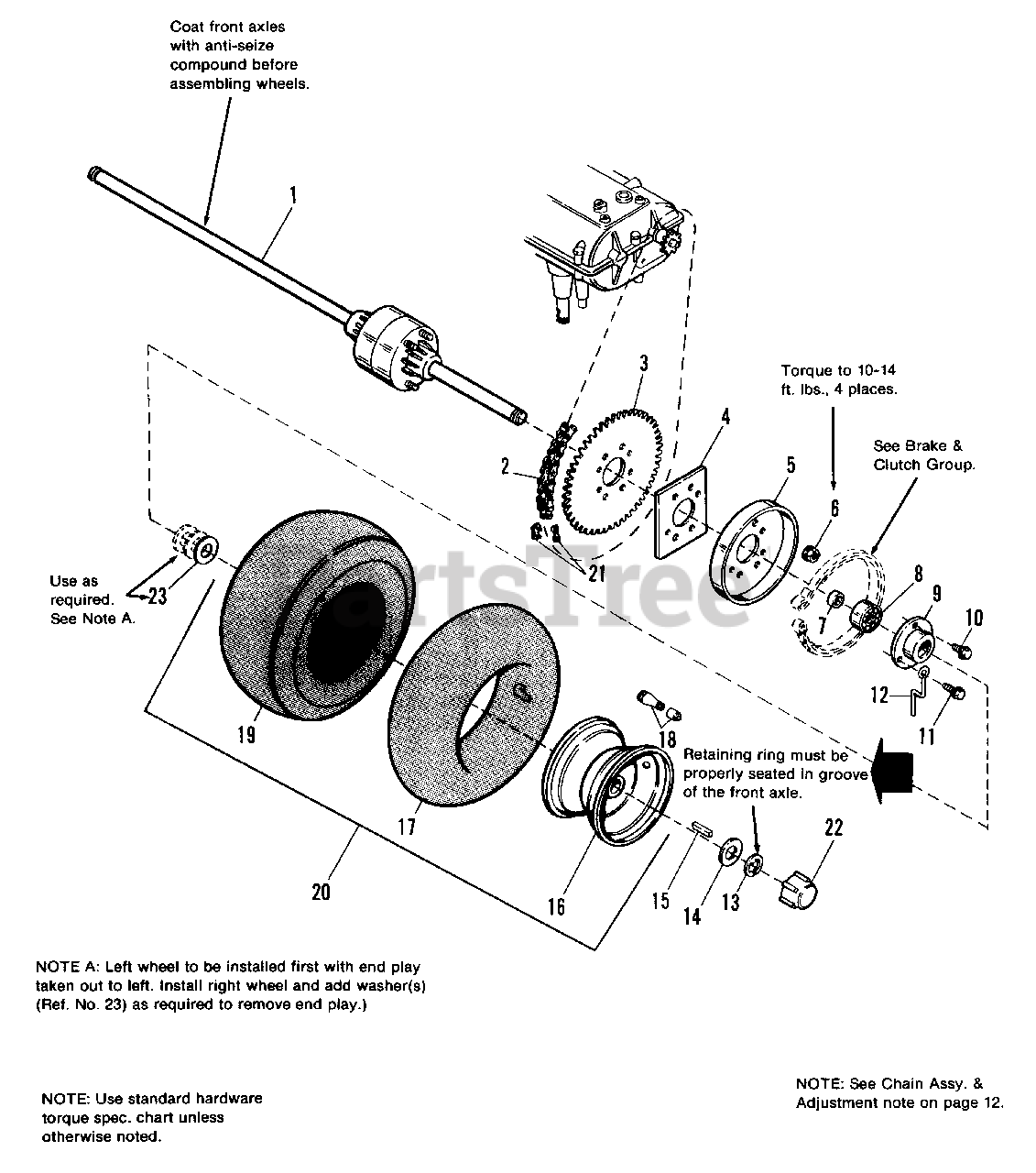

Differential & Front Wheels Group Parts Diagram

  • Title

1

AXLE ASSY., Differential, See page 42 for parts breakdown

$

$

Not available

2

Simplicity 1704297SM

CHAIN, Roller (#40)

$62.99

$

Usually ships in 2-12 days

0

3

Simplicity 1668296SM

SPROCKET, 54 Tooth

$170.99

$

Usually ships in 2-12 days

0

4

Simplicity 1678408

SHIM, Sprocket

$

$

Not available

5

Simplicity 1668295SM

DRUM, Brake

$22.99

$

Usually ships in 2-12 days

0

6

Simplicity 1931277SM

NUT, Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

7

Simplicity 1701772SM

SPACER, Axle

$8.49

$

Usually ships in 2-12 days

0

8

Simplicity 2108202SM

BEARING

$11.99

$

In Stock, Qty 20+

0

9

Simplicity 1665696SM

FLANGE, Bearing
(Superseded to 1725764SM)

$29.99

$

Usually ships in 2-12 days

0

10

Simplicity 1924856SM

SCREW, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, Qty 15

0

11

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 1678447

STOP, Brake Band

$

$

Not available

13

Simplicity 1611710SM

RING, Retaining, Wheel

$4.49

$

In Stock, Qty 18

0

14

Simplicity 2860202SM

WASHER, 34

$4.49

$

In Stock, Qty 13

0

15

Simplicity 1729279SM

KEY, 3/16 x 3/16 x 1-1/2
(Superseded to 703889)

$4.49

$

In Stock, Qty 5

0

16

Simplicity 1714238SM

WHEEL ASSY., White

$82.99

$

Usually ships in 2-12 days

0

16

Simplicity 1714238SM

WHEEL ASSY., Silver

$82.99

$

Usually ships in 2-12 days

0

17

Simplicity 2164247SM

TUBE (Service only, see note below)

$40.99

$

In Stock, only 1 left!

0

18

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

19

Simplicity 1709381SM

TIRE, 16 x 6.50-8

$

$

Not available

20

Simplicity 1705037

WHEEL & TIRE ASSY., White, 16 x 6.50-8 (Incl. Ref. Nos. 16, 18, 19)

$

$

Not available

20

Simplicity 1705038

WHEEL & TIRE ASSY., Silver, 16 x 6.50-8 (Incl. Ref. Nos.16, 18, 19)

$

$

Not available

21

Simplicity 1704893SM

MASTER LINK, Chain #40

$4.99

$

In Stock, only 1 left!

0

22

Simplicity 1673333SM

CAP, Threaded

$5.49

$

In Stock, Qty 8

0

23

Simplicity 1960114SM

WASHER, Shim, 3/4 x 1-1/16 (Use as needed)
(Superseded to 703151)

$3.49

$

In Stock, Qty 16

0
