1312 G (1691658) - AGCO Rear-Engine Riding Mower, 12hp Peerless Differential 100-080 Parts Diagram

Rear-Engine Riding Mower, 12hp

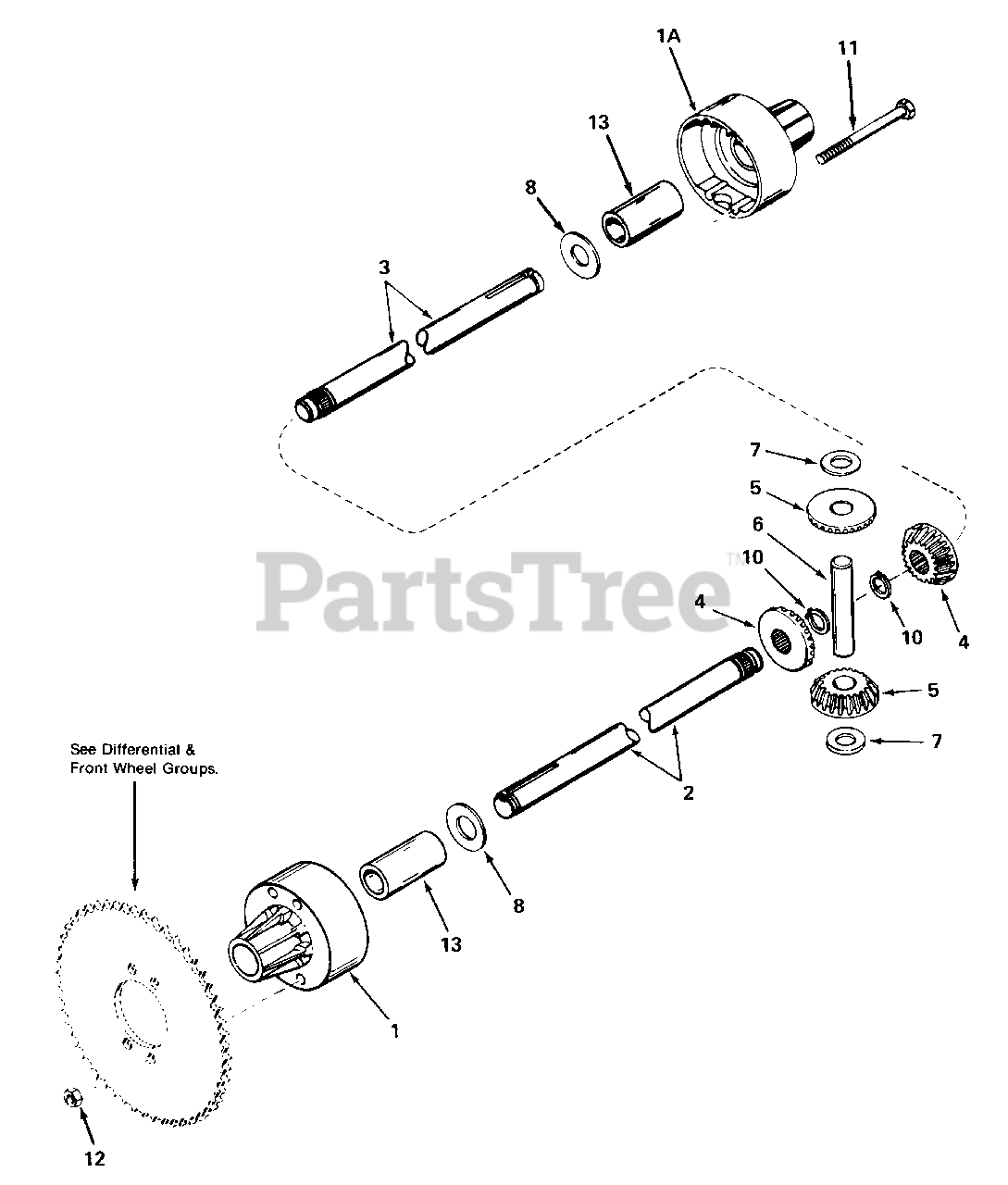

Peerless Differential 100-080 Parts Diagram

  • Title

1

Simplicity 774857

HOUSING, Differential Carrier (Incl. Ref. No. 13)

$

$

Not available

1A

Simplicity 774858

HOUSING, Differential Carrier (Incl. Ref. No. 13)

$

$

Not available

2

Simplicity 774704

AXLE (8-63/64" Long)

$

$

Not available

3

Simplicity 774705

AXLE (22-9/64" Long)

$

$

Not available

4

Simplicity 778221

GEAR, Bevel

$

$

Not available

5

Simplicity 778068

GEAR, Pinion

$

$

Not available

6

Simplicity 786093

PIN, Drive

$

$

Not available

7

Simplicity 780096

WASHER, Thrust

$

$

Not available

8

Simplicity 780001

WASHER

$

$

Not available

10

Simplicity 792125

RING, Snap (Pkg. of 2)

$

$

Not available

11

Simplicity 792044

SCREW, Flanged Hex Hd., 5/16-18 x 3-15/16

$

$

Not available

12

Simplicity 792042

NUT, Lock, 5/16-18

$

$

Not available

13

Simplicity 780077

BUSHING

$

$

Not available
