1312 H (1691679) - AGCO 42" Rear-Engine Riding Mower, 12hp Implement Lift Parts Diagram

42" Rear-Engine Riding Mower, 12hp

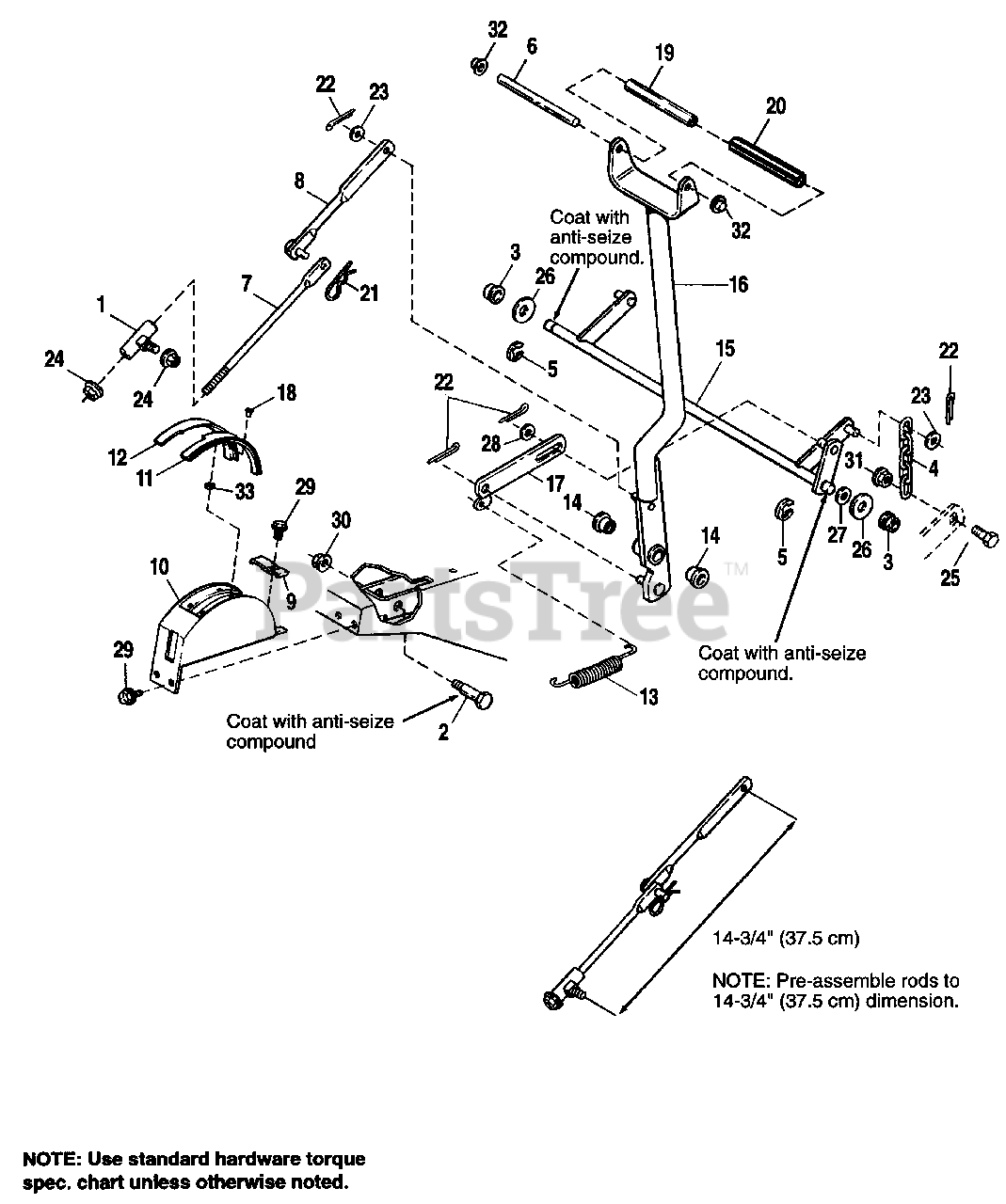

Implement Lift Parts Diagram

  • Title

1

Simplicity 2108166SM

YOKE ASSY., Pivot

$30.99

$

Usually ships in 2-12 days

0

2

Simplicity 2170135SM

BOLT, Shoulder

$

$

Not available

3

Simplicity 1668185SM

BUSHING, Nylon

$5.99

$

Usually ships in 2-12 days

0

4

Simplicity 1678337SM

CHAIN, Lift

$

$

Not available

5

Simplicity 1703805SM

KLIPRING, 1/2

$3.49

$

In Stock, only 4 left!

0

6

Simplicity 1704038SM

PIN

$

$

Not available

7

Simplicity 1704163SM

LIFT ROD, Lower

$

$

Not available

8

Simplicity 1704175SM

LIFT ROD ASSY.

$

$

Not available

9

Simplicity 1704199

CLAMP, Cover

$

$

Not available

10

Simplicity 1704363SM

COVER, Lift Lever

$

$

Not available

11

Simplicity 1704364

STRIP, Rubber, LH

$

$

Not available

12

Simplicity 1704365

STRIP, Rubber, RH

$

$

Not available

13

Simplicity 1704442SM

SPRING

$19.99

$

Usually ships in 2-12 days

0

14

Simplicity 1704505SM

BUSHING, Flanged

$

$

Not available

15

Simplicity 1704868SM

SHAFT ASSY., Lift

$101.99

$

Usually ships in 2-12 days

0

16

Simplicity 1704869SM

HANDLE ASSY., Lift

$

$

Not available

17

Simplicity 1704871SM

BAR ASSY., Lift

$

$

Not available

18

Simplicity 1704882

RIVET

$

$

Not available

19

Simplicity 1704915SM

SPACER

$15.99

$

Usually ships in 2-12 days

0

20

Simplicity 1705005SM

HANDLE

$6.99

$

Usually ships in 2-12 days

0

21

Simplicity 1918196SM

COTTER PIN, Hairpin
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 1918447SM

PIN, Cotter
(Superseded to 703312)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 1919326SM

WASHER

$4.49

$

Usually ships in 2-12 days

0

24

Simplicity 1919439SM

NUT, Hex, ESNA Lock, 3/8-16
(Superseded to 703117)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 1921333SM

CAPSCREW, 5/16-16 x 1
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 20+

0

26

Simplicity 1924359SM

WASHER, Plain

$

$

Not available

27

Simplicity 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

28

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

29

Simplicity 1929477SM

SCREW, Taptite #10-24 x 1/2
(Superseded to 704060)

$3.99

$

In Stock, Qty 20+

0

30

Simplicity 1931211SM

NUT, Whizlock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

31

Simplicity 1935048SM

NUT, Hex, Flange, Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

32

Simplicity 1960093SM

PUSHNUT
(Superseded to 703948)

$4.49

$

In Stock, Qty 19

0

33

Simplicity 1960521SM

PUSHNUT

$3.49

$

In Stock, Qty 20+

0
