1315 (130-222-100) - Cub Cadet Garden Tractor (SN: 147008 - 207400) Starting System - 9 Tooth Parts Diagram

Garden Tractor

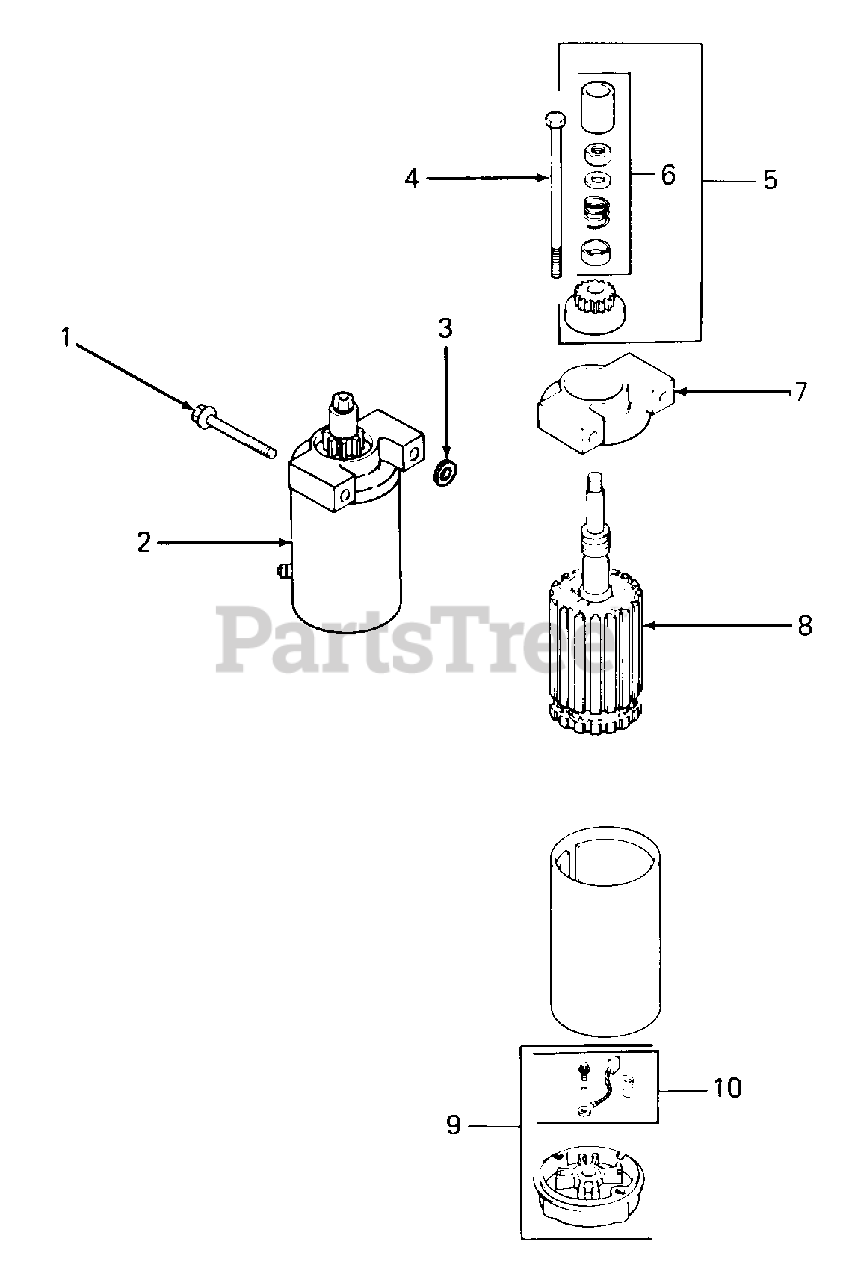

Starting System - 9 Tooth Parts Diagram

  • Title

1

Cub Cadet KH-SM-0839065

Screw, Bendix Starter, M8 X 1.25 X 65.5
(Superseded to KH-M-839070-S)

$9.49

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-12-098-05

Starter, Bendix Assy
(Superseded to KH-12-098-21-S)

Note: (Includes 3 thru 11)

$385.99

$

Usually ships in 2-5 days

0

3

~Not-Used

Washer, Flat

$

$

Not available

4

Cub Cadet KH-12-086-02

Screw, Hex Flange, 1/4-20 X 4-1/4

$

$

Not available

5

Cub Cadet KH-12-755-07

Kit, Drive

Note: (Includes Ref No. 6)

$

$

Not available

6

Cub Cadet KH-12-755-06

Kit, Drive Parts
(Superseded to KH-12-755-53)

$

$

Not available

7

Cub Cadet KH-12-227-01

Cap, Drive End
(Superseded to KH-12-227-16-S)

$

$

Not available

8

Cub Cadet KH-45-170-02

Armature

$

$

Not available

9

Cub Cadet KH-12-243-01

Cap, Commutator End Assy

Note: (Includes Ref No. 10)

$

$

Not available

10

Cub Cadet KH-48-755-15

Kit, Brush
(Superseded to KH-82-755-28)

$

$

Not available

Cub Cadet KH-52-357-01

Lubricant, Starter

Note: (Not Shown)

$

$

Not available
