1318 PSE (1690906) - Simplicity Walk-Behind Mower Deck & Cover Group Repair Parts Parts Diagram

Walk-Behind Mower

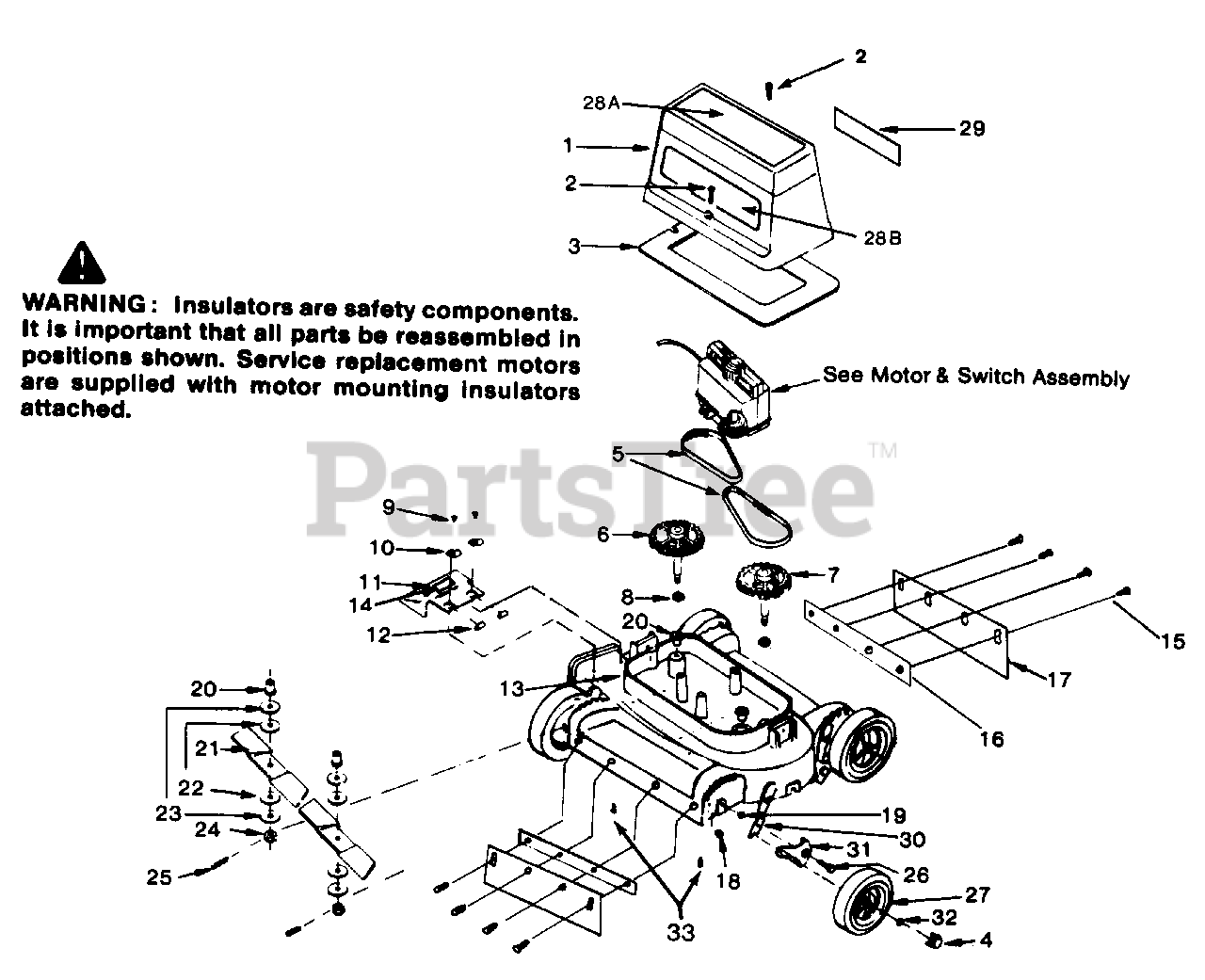

Deck & Cover Group Repair Parts Parts Diagram

  • Title

1

Simplicity 1675445

Motor Cover

$

$

Not available

2

Simplicity 1675462

Screw Motor Cover

$

$

Not available

3

Simplicity 1675452

Baffle Air

$

$

Not available

4

Simplicity 1675467

Hub Cap

$

$

Not available

5

Simplicity 1675437

Belt Drive

$

$

Not available

6

Simplicity 1675433

Blade Shaft/Pulley Long

$

$

Not available

7

Simplicity 1675432

Blade Shaft/Pulley Short

$

$

Not available

8

Simplicity 1675435

Washer, Pulley

$

$

Not available

9

Simplicity 1675442

Rivet, Blind

$

$

Not available

10

Simplicity 1675438

Hinge, Chute Guard

$

$

Not available

11

Simplicity 1675431

Chute Guard

$

$

Not available

12

Simplicity 1675439

Hinge Pin

$

$

Not available

13

Simplicity 1675428

Deck Assembly (Incl. Key #20)

$

$

Not available

14

Simplicity 1704276SM

Label-Danger

$

$

Not available

15

Simplicity 1675449

Rivet-Blind

$

$

Not available

16

Simplicity 1675443

Strap-Trail Shield

$

$

Not available

17

Simplicity 1675440

Trailing Guard

$

$

Not available

18

Simplicity 1923362SM

Nut
(Superseded to 703164)

$3.49

$

In Stock, Qty 10

0

19

Simplicity 1675459

Washer, Axle

$

$

Not available

20

Simplicity 1675429

Bearing, Blade Shaft

$

$

Not available

21

Simplicity 1675436

Blade-9"

$

$

Not available

22

Simplicity 1675434

Washer, Fibre

$

$

Not available

23

Simplicity 1675441

Washer, Flat

$

$

Not available

24

Simplicity 1675456

Nut, Blade

$

$

Not available

25

Simplicity 2818448

Cotter Pin

$

$

Not available

26

Simplicity 1675446

Shoulder Bolt

$

$

Not available

27

Simplicity 1675466

Wheel-6"

$

$

Not available

28A

Simplicity 1675296

Label-18" Twin Blade

$

$

Not available

28B

Simplicity 1722551SM

Label-"Simplicity"

$11.99

$

In Stock, only 2 left!

0

29

Simplicity 1675476

Caution & Data Label

$

$

Not available

30

Simplicity 1675455

Handle Height Adjustment

$

$

Not available

31

Simplicity 1675453

Bracket & Axle Assembly

$

$

Not available

32

Simplicity 1675461

Retaining Ring

$

$

Not available

33

Simplicity 1675430

Grease Fitting

$

$

Not available
