1318 PSE (1690906) - Simplicity Walk-Behind Mower Motor & Switch Group Repair Parts Parts Diagram

Walk-Behind Mower

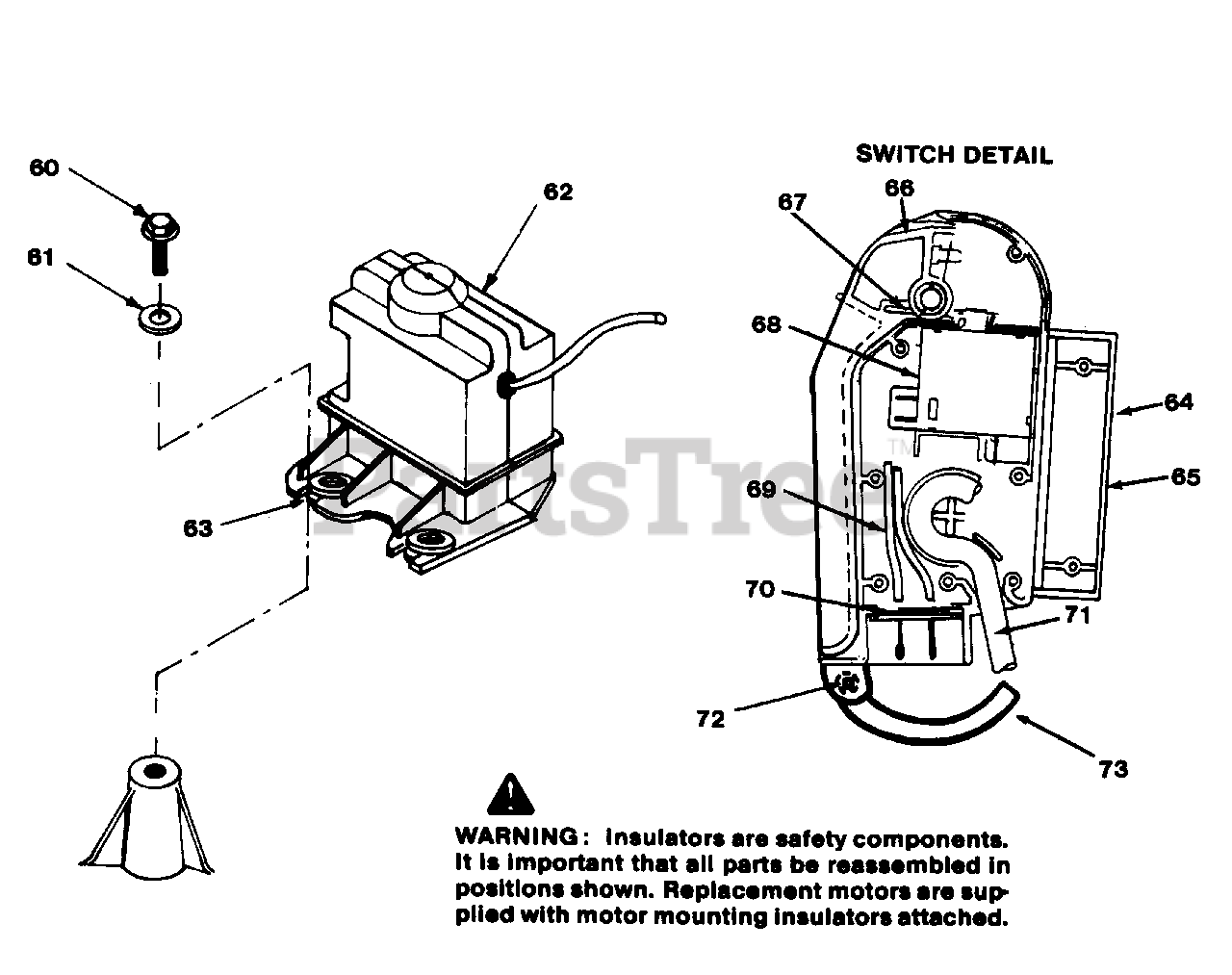

Motor & Switch Group Repair Parts Parts Diagram

  • Title

60

Simplicity 1675458

Bolt, Motor Mount

$

$

Not available

61

Simplicity 1675457

Washer-1/4" ID x 3/4" OD x 1/16" Thick

$

$

Not available

62

Simplicity 1675475

Motor & Switch Assy.

$

$

Not available

63

Simplicity 1675743

Insulator, Motor Housing (Part of Key No 62)

$

$

Not available

64

Simplicity 1675744

Housing-Upper Half

$

$

Not available

65

Simplicity 1675745

Housing-Lower Half (Not Shown)

$

$

Not available

66

Simplicity 1675746

Handle-Switch

$

$

Not available

67

Simplicity 1675747

Spring

$

$

Not available

68

Simplicity 1675748

Switch

$

$

Not available

69

Simplicity 1675749

Lead Ass'y (Black)

$

$

Not available

70

Simplicity 1675751

Prong Retainer (2-Pc)

$

$

Not available

71

Simplicity 1675752

Cord Ass'y.

$

$

Not available

72

Simplicity 1675753

Spring-Plug Ret

$

$

Not available

73

Simplicity 1675754

Plug Retainer

$

$

Not available

73

Simplicity 1675755

Jumper Lead (Yellow) (Not Shown)

$

$

Not available

Simplicity 1675756

Screw (Not Shown)

$

$

Not available
