132-4193 - Toro Automated Row Selection Kit for 2024 Directional Drill AUTOMATED ROW SELECTION ASSEMBLY NO. 132-4193 Parts Diagram

Automated Row Selection Kit for 2024 Directional Drill

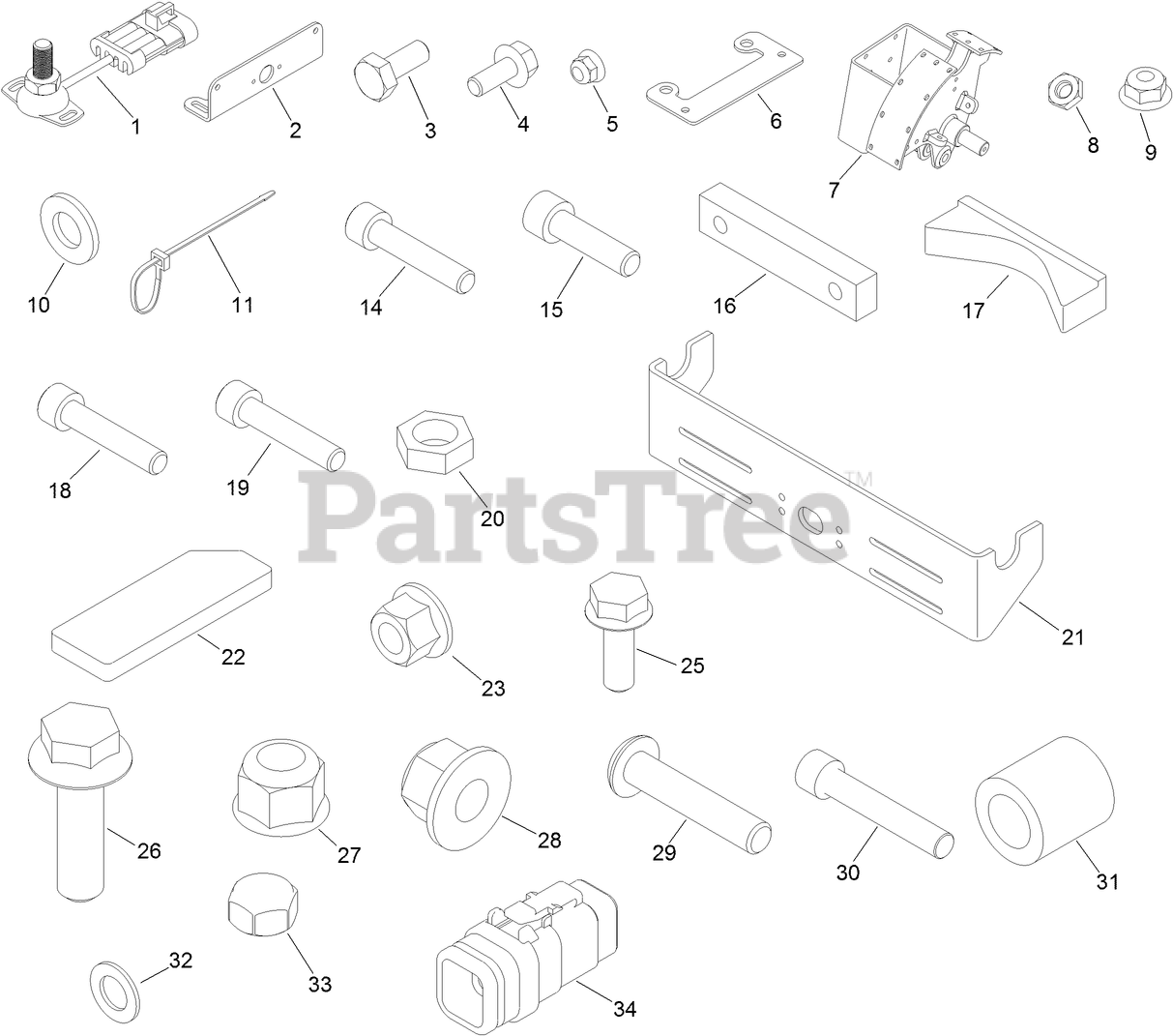

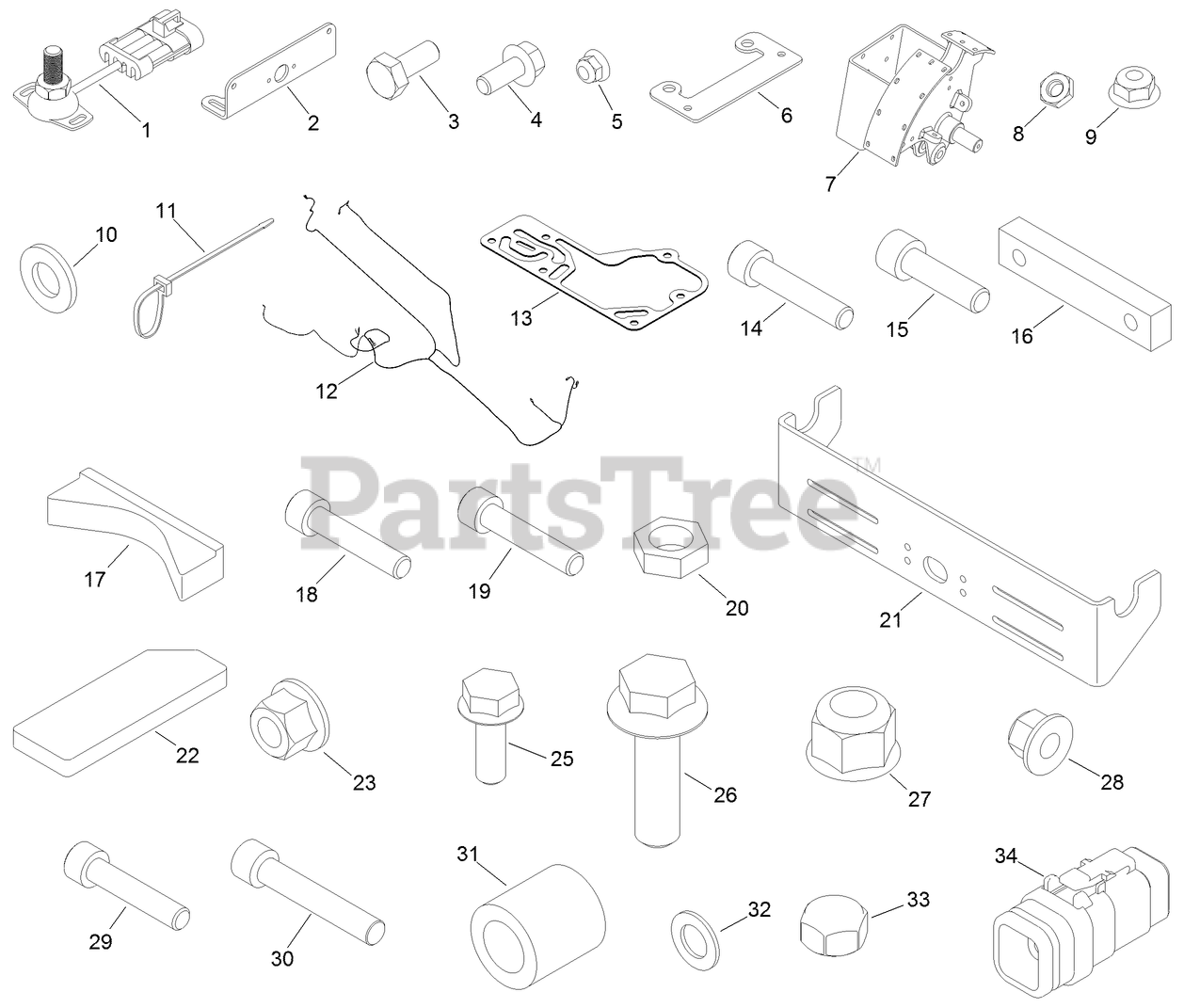

AUTOMATED ROW SELECTION ASSEMBLY NO. 132-4193 Parts Diagram

  • Title

1

Toro 131-0177

SENSOR-ROTARY

$

$

Not available

2

Toro 132-4179-03

BRACKET-SENSOR, ROTARY

$

$

Currently unavailable

3

Toro 60-6500

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

4

Toro 33104-020

SCREW-HHF

$3.99

$

In Stock, Qty 18

0

5

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

6

Toro 132-4170-03

BRACKET

$

$

Currently unavailable

7

Toro 132-4167-03

UPPER CAM ASM

$

$

Not available

8

Toro 112-8617

NUT-HEX

$

$

Currently unavailable

9

Toro 127-2018

NUT-HHF

$14.99

$

Usually ships in 3-6 days

0

10

Toro 106-9888

WASHER-FLAT

$0.99

$

In Stock, only 1 left!

0

11

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 6

0

12

Toro 122-0420

HARNESS-WIRE

Note: Not illustrated

$

$

Currently unavailable

13

Toro 131-7628

GASKET-CONTROL

Note: Not illustrated

$

$

Currently unavailable

14

Toro 131-0197

SCREW-HSH

$3.99

$

Usually ships in 3-6 days

0

15

Toro 94-3559

SCREW-HSH

$9.49

$

Usually ships in 3-6 days

0

16

Toro 132-4174-03

BLOCK-ADJUSTMENT

$

$

Currently unavailable

17

Toro 132-4175-03

BRACE-MOTOR, FLOATING

$

$

Currently unavailable

18

Toro 3274-1

SCREW-HSH

$9.49

$

Usually ships in 3-6 days

0

19

Toro 3274-7

SCREW-HSH

$2.99

$

Usually ships in 3-6 days

0

20

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 12

0

21

Toro 132-4201-03

PLATE-MOUNT, SWITCH

$

$

Currently unavailable

22

Toro 131-3406

PLATE-FLAG

$

$

Currently unavailable

23

Toro 81-0130

NUT-FLANGE, NI

$1.99

$

Usually ships in 3-6 days

0

25

Toro 33105-030

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

26

Toro 33105-035

SCREW-HHF

$4.49

$

Usually ships in 3-6 days

0

27

Toro 103-9511

NUT-LOCK, NI

$2.49

$

In Stock, only 3 left!

0

28

Toro 120-4580

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

29

Toro 125-4518

SCREW-HSBH

$

$

Currently unavailable

30

Toro 132-4185

SCREW-HSH

$

$

Currently unavailable

31

Toro 132-4184

SPACER

$

$

Currently unavailable

32

Toro 100-7336

WASHER

$5.99

$

Usually ships in 3-6 days

0

33

Toro 132-4186

CAP-VALVE, ALUMINUM

$

$

Currently unavailable

34

Toro 122-0677

CAP

$

$

Currently unavailable
