132-520-000 - MTD Lawn Tractor with 32" or 38" Decks (1992) Deck Assembly Parts Diagram

Lawn Tractor with 32" or 38" Decks

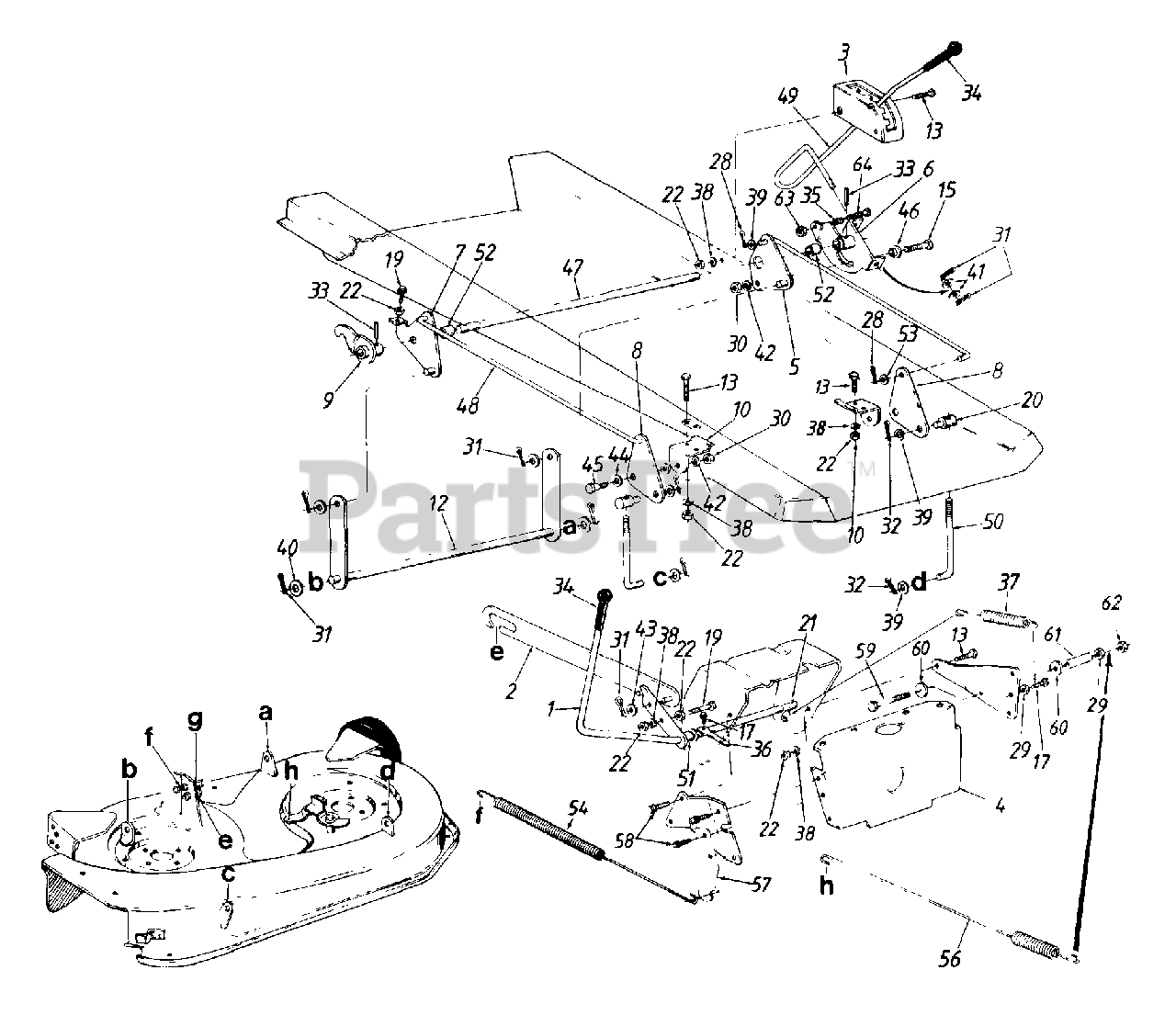

Deck Assembly Parts Diagram

  • Title

1

MTD 15568A

Blade Engagement Lever Ass'y.

$

$

Not available

2

MTD 15644A

Deck Drive Control Brkt. Ass'y.

Variations

MTD 15644A-0637

Deck Drive Control Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 16397

Deck Index Bracket

Variations

MTD 16397-0637

No Longer Available BRACKET-DE - POWDER BLACK (0637)

$

$

Not available

$

$

4

MTD 15613A

Pivot Bar Brkt.

Variations

MTD 15613A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 17108

Deck Lift Brkt. Ass'y.

$

$

Not available

6

MTD 17109

Deck Lift Handle Retainer Ass'y.

$

$

Currently unavailable

7

MTD 17111

Deck Lift Brkt. Ass'y.

$

$

Currently unavailable

8

MTD 17112

Deck Lift Bracket

$

$

Currently unavailable

9

MTD 17114A

Deck Lift Float Brkt Ass'y.

$

$

Not available

10

MTD 17115

Deck Lift Pivot Brkt.

$

$

Not available

12

MTD 17123

Stabilizer Shaft Ass'y.

$

$

Not available

13

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-0253

Hex Bolt 3/8-16 x 1" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

17

MTD 710-3243

Hex TT-Tap Scr. #12-24 x .5" Lg.

Note: New part

$

$

Currently unavailable

19

MTD 710-0817

Hex Wash.-Tap Scr. 5/16-18 x 1.25" Lg.

$6.99

$

In Stock, Qty 12

0

20

MTD 711-0198

Ferrule
(Superseded to 911-0198)

$14.99

$

In Stock, only 4 left!

0

21

MTD 711-0753

Clevis Pin

Note: (Special)

$

$

Not available

22

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

28

MTD 714-0507

Cotter Pin 3/32" Dia.

$4.99

$

In Stock, Qty 6

0

29

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

30

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

31

MTD 714-0101

Internal Cot. Pin 1/2" Dia.

$4.99

$

In Stock, only 2 left!

0

32

MTD 714-0145

Int. Cot. Pins 3/8" Dia.

$5.49

$

In Stock, Qty 20+

0

33

MTD 715-0114A

Spring Pin Spir. 1/4" Dia.
(Superseded to 915-0114)

$9.99

$

In Stock, Qty 20+

0

34

MTD 720-0223

Grip

$15.99

$

In Stock, Qty 5

0

35

MTD 732-0711

Compression Spring .9" Lg.

$

$

Not available

36

MTD 732-0435

Switch Actuator

$

$

Not available

37

MTD 732-0565

Ext. Spring 5.86" Lg.

$

$

Not available

38

MTD 736-0119

L-Wash 5/16" I.D
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

MTD 736-0140

Fl-Wash .385 I.D. x .62

$7.49

$

In Stock, Qty 13

0

40

MTD 736-0156

Fl-Wash .635 I.D. x 1.12

$4.99

$

In Stock, Qty 11

0

41

MTD 736-0160

Fl-Wash .531 I.D. x .930

$4.49

$

Usually ships in 3-6 days

0

42

MTD 736-0169

L-Wash 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

43

MTD 736-0300

Fl-Wash .385 I.D. x .87 O.D.

$4.99

$

In Stock, Qty 20+

0

44

MTD 736-0232

Spring Washer .530 I.D.

$4.99

$

In Stock, only 2 left!

0

45

MTD 738-0183

Shld Bolt .500" Dia x .215"
(Superseded to 938-0183)

$

$

Not available

46

MTD 738-0347

Shld Spacer .625" I.D.
(Superseded to 938-0347)

$10.99

$

In Stock, Qty 10

0

47

MTD 738-0550

Rear Hgt Adj. Shaft

$

$

Not available

48

MTD 747-0557

Connecting Rod

Variations

MTD 747-0557-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

$

$

49

MTD 747-0651

Deck Lift Handle

$

$

Not available

50

MTD 747-0690

J-Bolt 5.4" Lg

$

$

Not available

51

MTD 750-0515

Spacer .511 I.D.

$4.99

$

In Stock, Qty 14

0

52

MTD 750-0707

Spacer .885 I.D.

$

$

Not available

53

MTD 736-0264

Fl-Wash 5/16" I.D.

$7.49

$

In Stock, only 3 left!

0

54

MTD 732-0531

Ext. Spring 22.05" Lg.

$

$

Not available

56

MTD 732-0575

Ext. Spring - 15-5/8" (32" Deck)

$

$

Not available

MTD 732-0587

Ext. Spring - 17-3/4" (38" Deck)

$

$

Not available

57

MTD 17310

Spring Anchor

$

$

Not available

58

MTD 710-0776

Hex Wash Hd. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 8

0

59

MTD 710-0102

Hex Bolt 1/4-20 x 2.5" Lg.
(Superseded to 710-1122)

$7.99

$

Usually ships in 3-6 days

0

60

MTD 736-0176

Fl-Wash .25" I.D. x .93" O.D.

$4.99

$

In Stock, Qty 20+

0

61

MTD 750-0583

Spacer .255" I.D.

$

$

Not available

62

MTD 712-0291

Hex L-Nut 1/4-20 Thd.

$4.99

$

In Stock, only 4 left!

0

63

MTD 712-0291

Hex L-Nut 1/4-20 Thd.

$4.99

$

In Stock, only 4 left!

0

64

MTD 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$4.49

$

In Stock, Qty 12

0
