132-800H137 - Western Sun Lawn Tractor (1992) (Intermountain Farmer) Electrical System Parts Diagram

Lawn Tractor

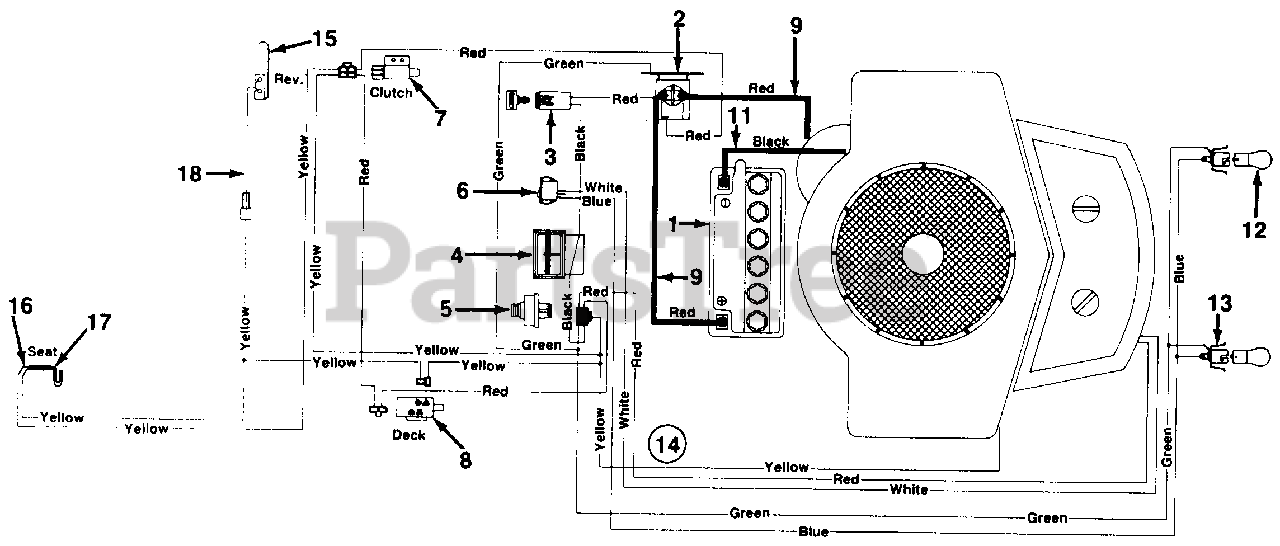

Electrical System Parts Diagram

  • Title

1

MTD 725-1635

Battery (275 Cold Crank Amps)
(Superseded to 753-0608)

$

$

Not available

2

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$28.99

$

In Stock, Qty 20+

0

3

MTD 725-1625

Fuse 7.5 Amp

$8.99

$

Usually ships in 3-6 days

0

4

MTD 725-0925

Ammeter
(Superseded to 925-0925)

Note: (Optional)

$31.99

$

In Stock, Qty 6

0

5

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$37.99

$

In Stock, Qty 20+

0

6

MTD 725-0634

Light Switch
(Superseded to 925-0634)

Note: (Optional)

$18.99

$

In Stock, Qty 5

0

7

MTD 725-3169A

Safety Switch (Clutch)
(Superseded to 925-04039)

$25.99

$

In Stock, Qty 20+

0

8

MTD 725-0465A

Safety Switch (PTO)
(Superseded to 925-0465A)

$32.99

$

In Stock, only 1 left!

0

9

MTD 725-0561

Electric Wire 14" Lg.
(Superseded to 629-0705)

$

$

Not available

11

MTD 725-0996

Ground Wire 7.5" Lg.

$

$

Not available

12

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.99

$

In Stock, Qty 20+

0

13

MTD 725-1649

Socket
(Superseded to 925-1649A)

Note: New Part; (Used on Styles 0, 6)

$12.99

$

In Stock, Qty 20+

0

MTD 725-1650

Socket
(Superseded to 925-1650)

Note: New Part; (Used on Styles 2, 3, 4, 8, 9)

$

$

Not available

14

MTD 629-0082

Wire Harness w/Ammeter

Note: New Part

$

$

Not available

MTD 629-0075

Wire Harness w/o Ammeter

Note: New Part

$

$

Not available

15

MTD 725-1643

Spring Switch (Reverse)

Note: New Part

$10.99

$

In Stock, only 2 left!

0

16

MTD 725-1303

Spring Switch (Seat)
(Superseded to 925-1303)

$6.99

$

In Stock, Qty 6

0

17

MTD 725-1439

Spring Switch (Seat)

$8.99

$

In Stock, Qty 9

0

18

MTD 725-1399

Ext. Wire

$

$

Not available
