132 HBV - Husqvarna Handheld Blower (1990-11) COVER Parts Diagram

Handheld Blower

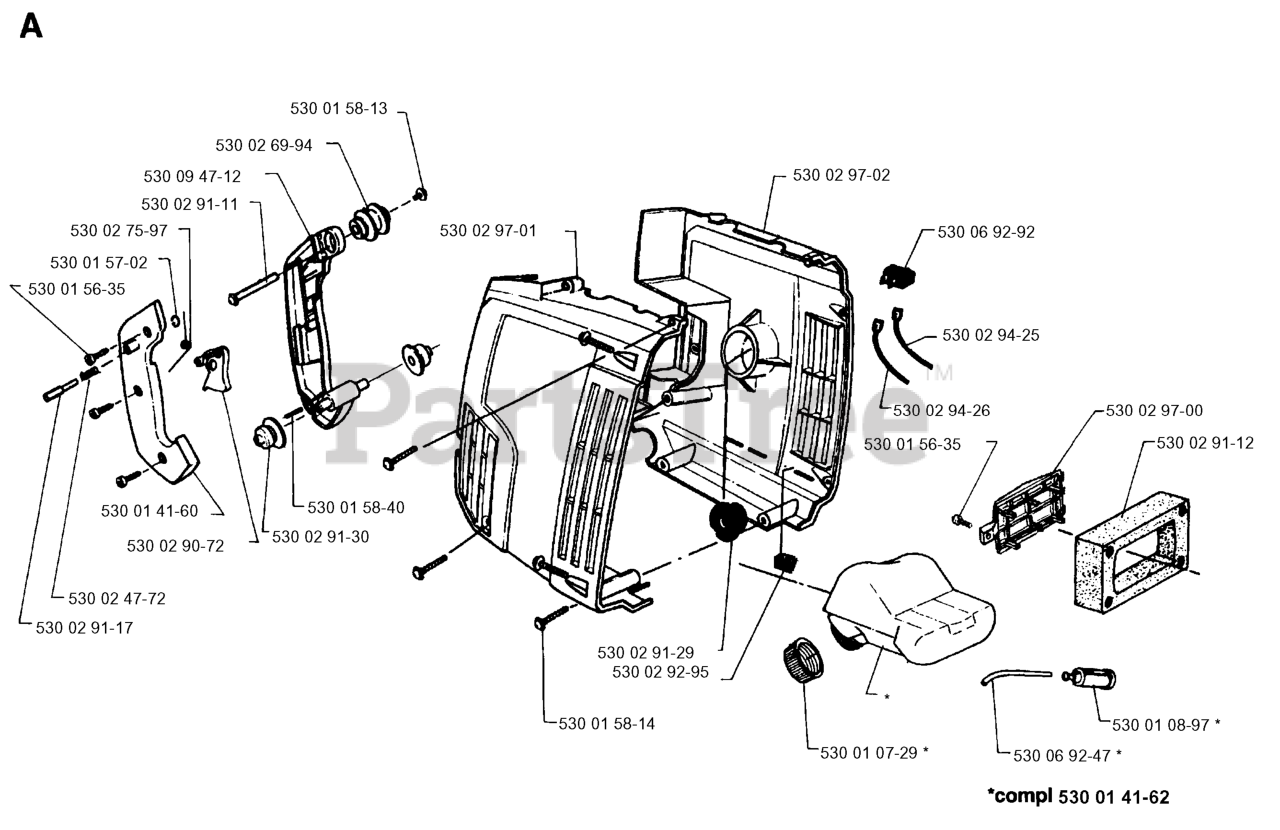

COVER Parts Diagram

  • Title

530 01 56-35

Husqvarna 530015635

SCREW-10-14X5/8 PHIL.FI

$4.99

$

Usually ships in 3-10 days

0

530 06 92-92

Husqvarna 530069292

STOP SWITCH
(Superseded to 530069572)

$8.99

$

In Stock, only 3 left!

0

530 06 92-47

Husqvarna 530069247

HOSE. FUEL

$6.49

$

In Stock, Qty 20+

0

530 02 97-00

Husqvarna 530029700

COVER-FILTER (ORANGE)
(Superseded to 530037847)

$

$

Not available

530 02 91-29

Husqvarna 530029129

ISOLATOR-ENGINE MOUNT

$3.99

$

Usually ships in 3-10 days

0

530 02 91-11

Husqvarna 530029111

SPACER-ISOLATOR

$1.99

$

Usually ships in 3-10 days

0

530 02 97-02

Husqvarna 530029702

SHROUD (L) (ORANGE)
(Superseded to 530037851)

$14.99

$

Usually ships in 3-10 days

0

530 02 92-95

Husqvarna 530029295

ISOLATOR-TANK

$0.99

$

Usually ships in 3-10 days

0

530 02 75-97

Husqvarna 530027597

SPRING-LEVER RETURN

$3.99

$

In Stock, only 4 left!

0

530 02 94-26

Husqvarna 530029426

WIRE-GROUND (SWITCH)

$1.99

$

Usually ships in 3-10 days

0

530 01 41-60

Husqvarna 530014160

ASSY-COVER & THROTTLE LOCK

$

$

Not available

530 01 08-97

Husqvarna 530010897

ASSY-FUEL PICK-UP
(Superseded to 530095646)

$4.99

$

In Stock, Qty 20+

0

530 02 91-12

Husqvarna 530029112

AIR FILTER

$

$

Not available

530 01 58-13

Husqvarna 530015813

SCREW-10-24 X 3/8

$0.99

$

Usually ships in 3-10 days

0

530 02 94-25

Husqvarna 530029425

WIRE-LEAD (SWITCH)

$1.99

$

Usually ships in 3-10 days

0

530 02 91-17

Husqvarna 530029117

BUTTON-THROTTLE LOCK

$

$

Not available

530 02 91-30

Husqvarna 530029130

ISOLATOR-HANDLE (REAR)

$3.99

$

In Stock, only 1 left!

0

530 09 47-12

Husqvarna 530094712

HANDLE (BLACK)
(Superseded to 530069863)

$

$

Not available

530 01 41-62

Husqvarna 530014162

Assy-Fuel Tank W/Retain

$

$

Not available

530 02 47-72

Husqvarna 530024772

SPRING-THROTTLE

$4.99

$

In Stock, only 1 left!

0

530 01 57-02

Husqvarna 530015702

C CLIP-THROTTLE LOCK

$

$

Not available

530 02 90-72

Husqvarna 530029072

Trigger

$

$

Not available

530 01 58-14

Husqvarna 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

530 01 07-29

Husqvarna 530010729

ASSY-FUEL CAP W/RETAINER
(Superseded to 530014347)

$8.99

$

In Stock, Qty 5

0

530 02 69-94

Husqvarna 530026994

Handle Isolator

$

$

Not available

530 01 58-40

Husqvarna 530015840

HANDLE PIN

$0.99

$

Usually ships in 3-10 days

0

530 02 97-01

Husqvarna 530029701

SHROUD (R) (ORANGE)
(Superseded to 530037850)

$17.99

$

Usually ships in 3-10 days

0
