132 HBV - Husqvarna Handheld Blower (1990-11) ENGINE Parts Diagram

Handheld Blower

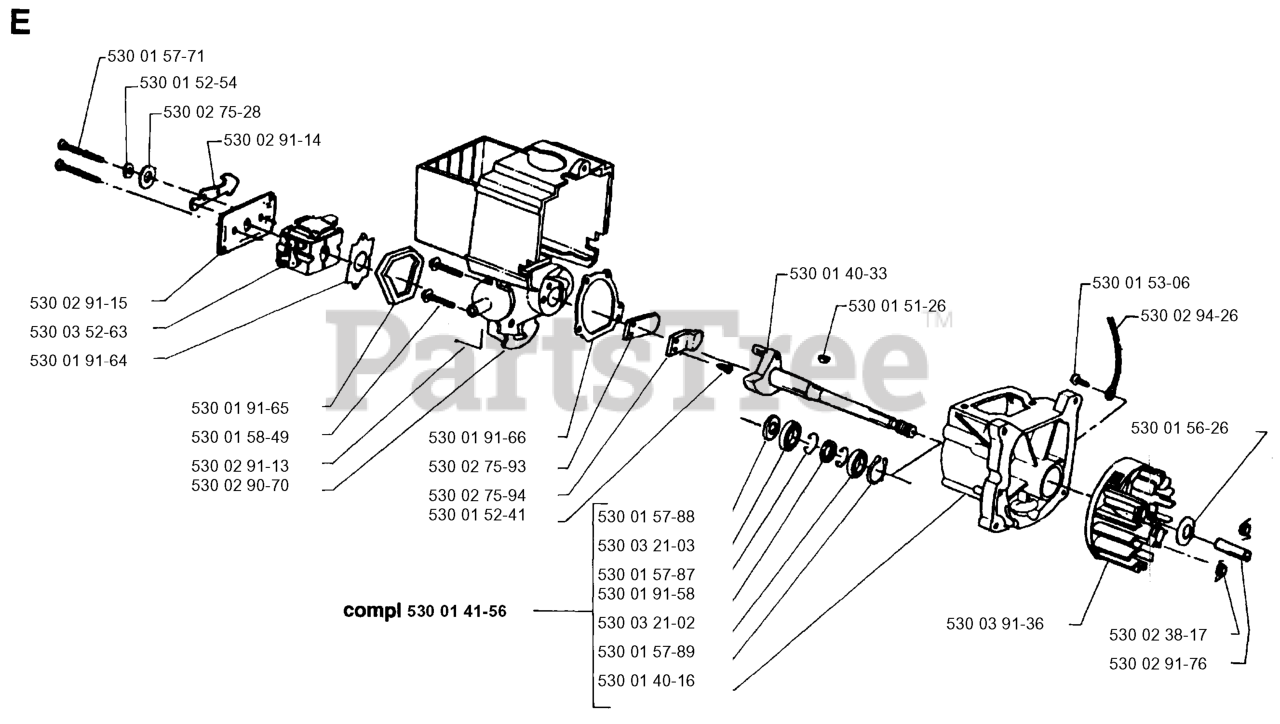

ENGINE Parts Diagram

  • Title

530 02 38-17

Husqvarna 530023817

SPRING STR DOG

$6.49

$

In Stock, Qty 5

0

530 01 91-65

Husqvarna 530019165

SEAL-FOAM/REED BLOCK

$3.99

$

In Stock, only 3 left!

0

530 01 41-56

Husqvarna 530014156

Crankcase/Crankshaft Assy.

$

$

Not available

530 01 53-06

Husqvarna 530015306

SCREW(10-24 X 7/16 HEX

$3.99

$

Usually ships in 3-10 days

0

530 02 94-26

Husqvarna 530029426

WIRE-GROUND (SWITCH)

$1.99

$

Usually ships in 3-10 days

0

530 01 57-89

Husqvarna 530015789

RING-RETAINING (SHAFT)

$4.99

$

Usually ships in 3-10 days

0

530 01 52-54

Husqvarna 530015254

WASHER

$3.99

$

In Stock, only 2 left!

0

530 01 56-26

Husqvarna 530015626

WASHER
(Superseded to 530016030)

$3.99

$

Usually ships in 3-10 days

0

530 02 75-28

Husqvarna 530027528

SPACER-CHOKE
(Superseded to 530015852)

$2.49

$

In Stock, only 1 left!

0

530 02 91-15

Husqvarna 530029115

PLATE-AIR FILTER MTG

$1.99

$

Usually ships in 3-10 days

0

530 01 40-33

Husqvarna 530014033

ASSY-CRANKSHAFT

$27.99

$

Usually ships in 3-10 days

0

530 01 57-88

Husqvarna 530015788

SPACER-BEARING

$0.99

$

Usually ships in 3-10 days

0

530 03 52-63

Husqvarna 530035263

CARBURETOR WT-141
(Superseded to 545081825)

$

$

Not available

530 02 90-70

Husqvarna 530029070

REED BLOCK/HEAT SHIELD
(Superseded to 530047696)

$

$

Not available

530 01 52-41

Husqvarna 530015241

SCREW-6-19X5/16PLAST PA
(Superseded to 545227101)

$4.99

$

In Stock, Qty 6

0

530 02 75-93

Husqvarna 530027593

VALVE-REED

$6.49

$

In Stock, only 4 left!

0

530 03 21-03

Husqvarna 530032103

Bearing-R8 (inner)

$

$

Not available

530 01 91-66

Husqvarna 530019166

GASKET-REED BLOCK/C'CAS

$3.99

$

Usually ships in 3-10 days

0

530 01 57-71

Husqvarna 530015771

SCREW 1/4-20 X 7/8 (TAP

$6.49

$

In Stock, Qty 6

0

530 02 91-76

Husqvarna 530029176

SPACER-FLYWHEEL

$2.99

$

Usually ships in 3-10 days

0

530 01 40-16

Husqvarna 530014016

Crankcase Ass'y.

$

$

Not available

530 01 91-64

Husqvarna 530019164

GASKET-CARB

$7.49

$

In Stock, only 4 left!

0

530 02 91-13

Husqvarna 530029113

WIRE-GROUND/STATIC

$0.99

$

Usually ships in 3-10 days

0

530 01 91-58

Husqvarna 530019158

SEAL-CRANKSHAFT

$6.49

$

Usually ships in 3-10 days

0

530 02 91-14

Husqvarna 530029114

Shutter-Choke

$

$

Not available

530 01 51-26

Husqvarna 530015126

KEY-FLYWHEEL

$3.99

$

Usually ships in 3-10 days

0

530 01 57-87

Husqvarna 530015787

RING-RETAINING

$3.99

$

Usually ships in 3-10 days

0

530 03 91-36

Husqvarna 530039136

ASSY-FLYWHEEL
(Superseded to 530039189)

$

$

Not available

530 02 75-94

Husqvarna 530027594

REED STOP

$4.99

$

Usually ships in 3-10 days

0

530 03 21-02

Husqvarna 530032102

BEARING-R8 (OUTER)

$

$

Not available

530 01 58-49

Husqvarna 530015849

SCREW

$6.49

$

In Stock, only 1 left!

0
