132 HBV - Husqvarna Handheld Blower (1991-11) Crankcase / Crankshaft & Flywheel Parts Diagram

Handheld Blower

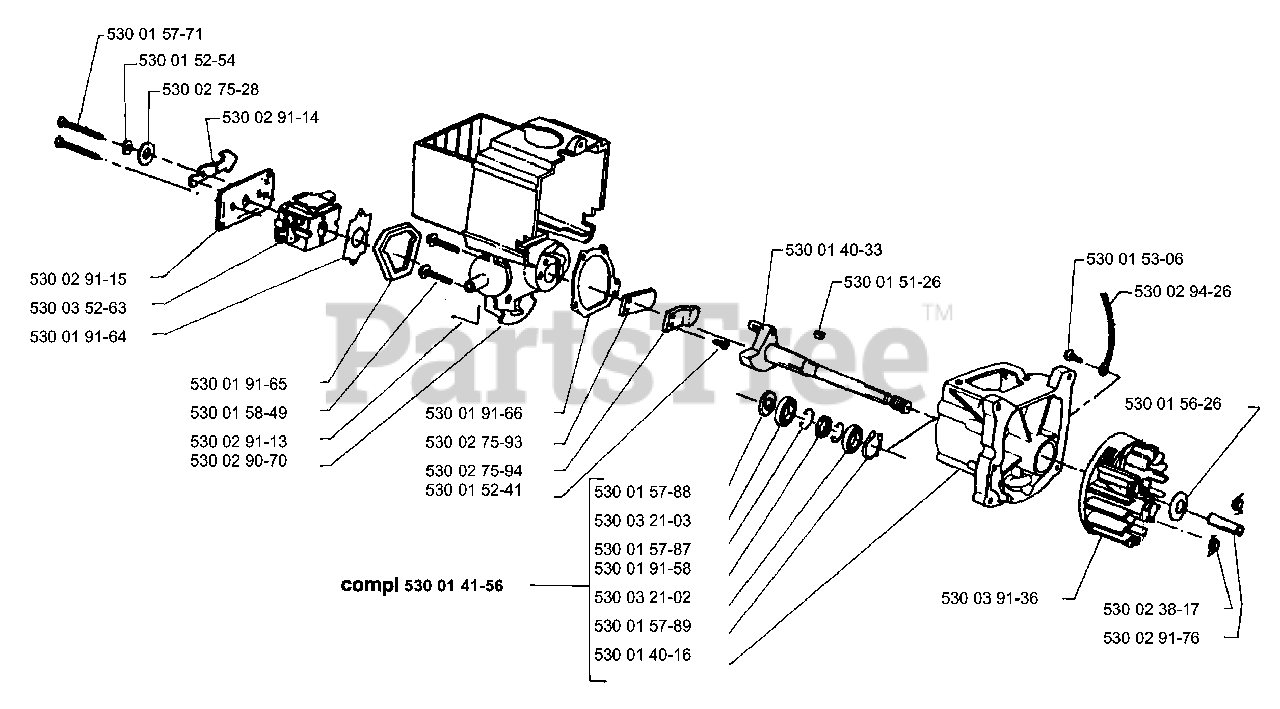

Crankcase / Crankshaft & Flywheel Parts Diagram

  • Title

530014016

Husqvarna 530014016

Assy-Crankcase

$

$

Not available

530014033

Husqvarna 530014033

Assy-Crankshaft

$27.99

$

Usually ships in 3-10 days

0

530014156

Husqvarna 530014156

Assy-C'case & C'shaft

$

$

Not available

530015126

Husqvarna 530015126

Key-Flywheel

$3.99

$

Usually ships in 3-10 days

0

530015241

Husqvarna 530015241

Screw-6-19x5/16plast Pa
(Superseded to 545227101)

$4.99

$

In Stock, Qty 6

0

530015254

Husqvarna 530015254

Washer

$3.99

$

In Stock, only 2 left!

0

530015306

Husqvarna 530015306

Screw(10-24 X 7/16 Hex

$3.99

$

Usually ships in 3-10 days

0

530015626

Husqvarna 530015626

WASHER
(Superseded to 530016030)

$3.99

$

Usually ships in 3-10 days

0

530015771

Husqvarna 530015771

Screw 1/4-20 X 7/8 (tap

$6.49

$

In Stock, Qty 6

0

530015787

Husqvarna 530015787

Ring-Retaining

$3.99

$

Usually ships in 3-10 days

0

530015788

Husqvarna 530015788

Spacer-Bearing

$0.99

$

Usually ships in 3-10 days

0

530015789

Husqvarna 530015789

Ring-Retaining (shaft)

$4.99

$

Usually ships in 3-10 days

0

530015849

Husqvarna 530015849

Screw

$6.49

$

In Stock, only 1 left!

0

530019158

Husqvarna 530019158

Seal-Crankshaft

$6.49

$

Usually ships in 3-10 days

0

530019164

Husqvarna 530019164

Gasket-Carb

$7.49

$

In Stock, only 4 left!

0

530019165

Husqvarna 530019165

Seal-Foam/Reed Block

$3.99

$

In Stock, only 3 left!

0

530019166

Husqvarna 530019166

Gasket-Reed Block/C'cas

$3.99

$

Usually ships in 3-10 days

0

530023817

Husqvarna 530023817

Spring Str Dog

$6.49

$

In Stock, Qty 5

0

530027528

Husqvarna 530027528

Spacer-Choke
(Superseded to 530015852)

$2.49

$

In Stock, only 1 left!

0

530027593

Husqvarna 530027593

Valve-Reed

$6.49

$

In Stock, only 4 left!

0

530027594

Husqvarna 530027594

Reed Stop

$4.99

$

Usually ships in 3-10 days

0

530029113

Husqvarna 530029113

Wire-Ground/Static

$0.99

$

Usually ships in 3-10 days

0

530029114

Husqvarna 530029114

Shutter-Choke

$

$

Not available

530029115

Husqvarna 530029115

Plate-Air Filter Mtg

$1.99

$

Usually ships in 3-10 days

0

530029070

Husqvarna 530029070

REED BLOCK/HEAT SHIELD
(Superseded to 530047696)

$

$

Not available

530029176

Husqvarna 530029176

Spacer-Flywheel

$2.99

$

Usually ships in 3-10 days

0

530029426

Husqvarna 530029426

Wire-Ground (switch)

$1.99

$

Usually ships in 3-10 days

0

530032102

Husqvarna 530032102

Bearing-R8 (outer)

$

$

Not available

530032103

Husqvarna 530032103

Bearing-R8 (inner)

$

$

Not available

530035263

Husqvarna 530035263

Carburetor Wt-141
(Superseded to 545081825)

$

$

Not available

530039136

Husqvarna 530039136

Assy-Flywheel
(Superseded to 530039189)

$

$

Not available
