132 HBV - Husqvarna Handheld Blower (1996-01) Carburetor Parts Diagram

Handheld Blower

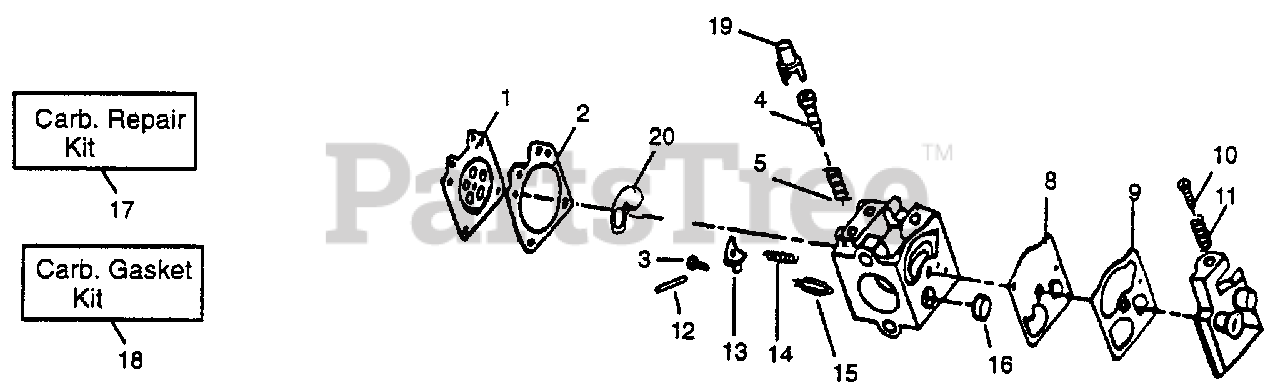

Carburetor Parts Diagram

  • Title

1

Husqvarna 530035014

Metering Diaphragm
(Superseded to 503896701)

$8.99

$

In Stock, only 2 left!

0

2

Husqvarna 530035151

Metering Diaphragm Gasket

$3.99

$

In Stock, Qty 8

0

3

Husqvarna 530035016

Metering Lever Pin Screw

$3.49

$

In Stock, Qty 6

0

4

Husqvarna 530035341

Mixture Needle

$

$

Not available

5

Husqvarna 530035376

Mixture Needle Spring

$

$

Not available

8

Husqvarna 530035166

Fuel Pump Diaphragm
(Superseded to 504130807)

$6.49

$

In Stock, Qty 11

0

9

Husqvarna 530035164

Fuel Pump Gasket
(Superseded to 504130906)

$4.99

$

In Stock, Qty 5

0

10

Husqvarna 530035203

Idle Speed Screw

$8.99

$

Usually ships in 3-10 days

0

11

Husqvarna 530035121

Idle Screw Spring

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 530035028

Metering Lever Pin
(Superseded to 505520125)

$3.49

$

In Stock, only 3 left!

0

13

Husqvarna 530035031

Metering Lever
(Superseded to 505520127)

$5.99

$

Usually ships in 3-10 days

0

14

Husqvarna 530037330

Metering Lever Spring

$

$

Not available

15

Husqvarna 530035106

Inlet Needle Valve
(Superseded to 503117001)

$11.99

$

In Stock, Qty 11

0

16

Husqvarna 530035178

Fuel Inlet Screen

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 530035264

Carb. Kwik Repair Kit

Note: (Includes items 1, 2, 3, 8, 9, 12 - 16, & 20)

$

$

Not available

18

Husqvarna 530035219

Carb. Gasket/Diaphragm Kit
(Superseded to 530069844)

Note: (Includes items 1, 2, 8, 9, & 20)

$18.99

$

Usually ships in 3-10 days

0

19

Husqvarna 530038403

Limiter Cap

$4.99

$

In Stock, only 2 left!

0

20

Husqvarna 530035211

Circuit Plate Gasket

$

$

Not available
