132 HBV - Husqvarna Handheld Blower (1996-01) Carburetor Parts Diagram

Handheld Blower

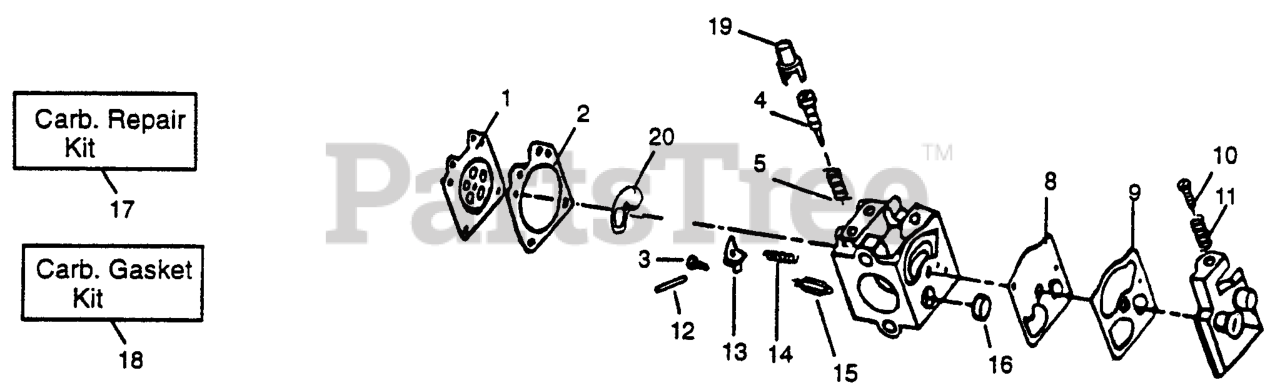

Carburetor Parts Diagram

  • Title

1

Husqvarna 530035014

DIAPHRAGM
(Superseded to 503896701)

$56.99

$

In Stock, Qty 9

0

2

Husqvarna 530035151

GASKET-METER DIAP

$4.99

$

In Stock, Qty 7

0

3

Husqvarna 530035016

SCREW

$7.99

$

Usually ships in 3-10 days

0

4

Husqvarna 530035341

Mixture Needle

$

$

Not available

5

Husqvarna 530035376

Mixture Needle Spring

$

$

Not available

8

Husqvarna 530035166

DIAP FUEL PUMP
(Superseded to 504130807)

$37.99

$

In Stock, Qty 18

0

9

Husqvarna 530035164

GASKET-FUEL PUMP
(Superseded to 504130906)

$13.99

$

In Stock, only 2 left!

0

10

Husqvarna 530035203

SCREW-IDLE SPEED

$

$

Not available

11

Husqvarna 530035121

IDLE SCREW SPRING

$

$

Not available

12

Husqvarna 530035028

PIN
(Superseded to 505520125)

$7.99

$

Usually ships in 3-10 days

0

13

Husqvarna 530035031

LEVER
(Superseded to 505520127)

$

$

Not available

14

Husqvarna 530037330

Metering Lever Spring

$

$

Not available

15

Husqvarna 530035106

INLET NEEDLEVALVE
(Superseded to 503117001)

$26.99

$

In Stock, Qty 6

0

16

Husqvarna 530035178

SCREEN-DUTCH TWILL INLE

$

$

Not available

17

Husqvarna 530035264

KIT-CARB. KWIK REPAIR

Note: (Includes items 1, 2, 3, 8, 9, 12 - 16, & 20)

$

$

Not available

18

Husqvarna 530035219

INQUGASKET DIAPHRAGM
(Superseded to 530069844)

Note: (Includes items 1, 2, 8, 9, & 20)

$22.99

$

In Stock, Qty 14

0

19

Husqvarna 530038403

LIMITER CAP

$3.49

$

Usually ships in 3-10 days

0

20

Husqvarna 530035211

GASKET

$

$

Not available
