132 HBV - Husqvarna Handheld Blower (1996-01) Main Assembly Parts Diagram

Handheld Blower

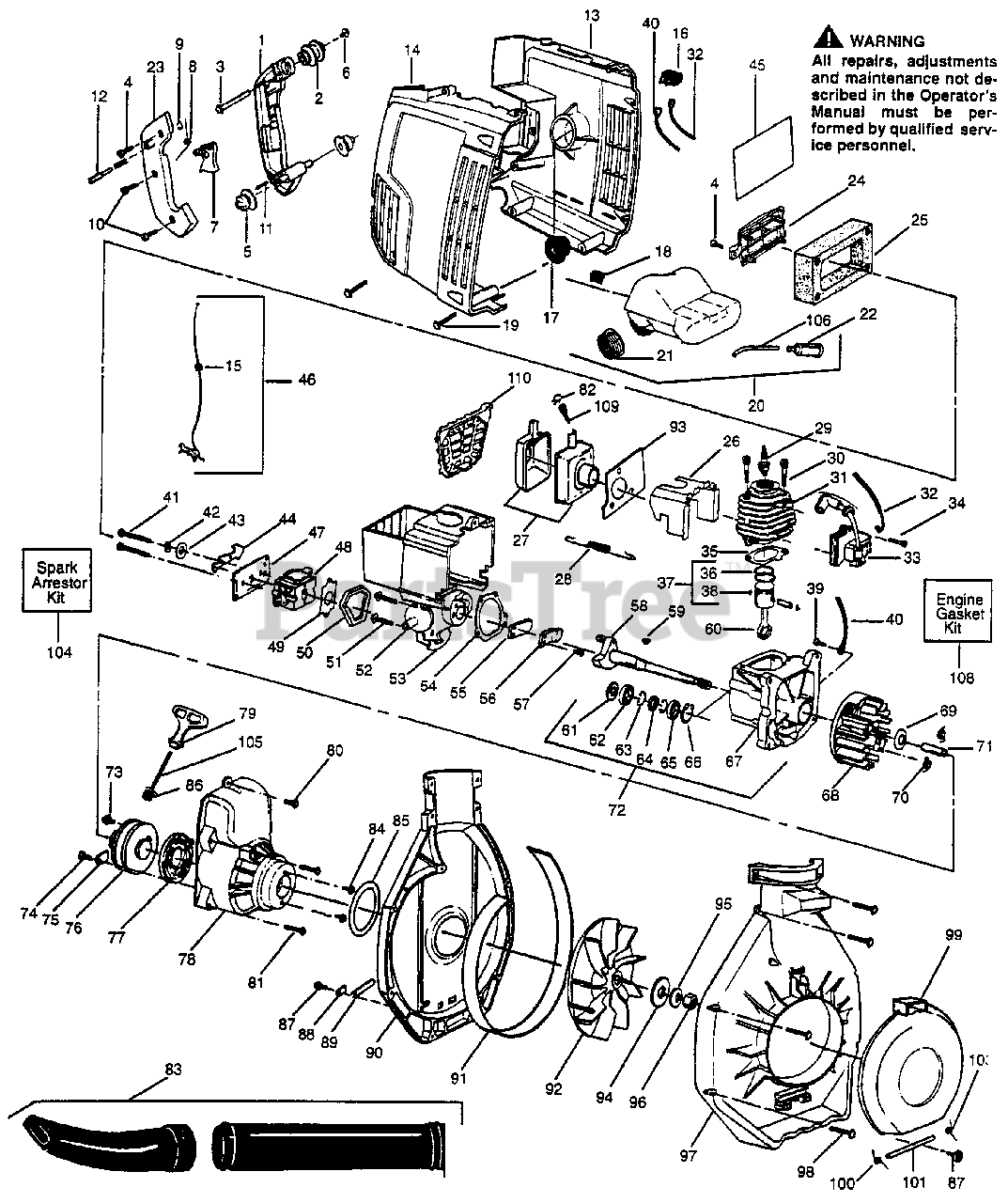

Main Assembly Parts Diagram

  • Title

1

Husqvarna 530094712

HANDLE (BLACK)
(Superseded to 530069863)

$

$

Not available

2

Husqvarna 530026994

Front isolator

$

$

Not available

3

Husqvarna 530029111

SPACER-ISOLATOR

$

$

Not available

4

Husqvarna 530015635

SCREW-10-14X5/8 PHIL.FI

$7.49

$

Usually ships in 3-10 days

0

5

Husqvarna 530029130

ISOLATOR-HANDLE (REAR)

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 530015813

SCREW-10-24 X 3/8

$

$

Not available

7

Husqvarna 530029072

Trigger

$

$

Not available

8

Husqvarna 530027597

SPRING-LEVER RETURN

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 530015702

C CLIP-THROTTLE LOCK

$

$

Not available

10

Husqvarna 530029117

BUTTON-THROTTLE LOCK

$

$

Not available

11

Husqvarna 530015840

HANDLE PIN

$

$

Not available

12

Husqvarna 530024772

SPRING-THROTTLE

$

$

Not available

13

Husqvarna 530037851

SHROUD-LEFT

$

$

Not available

14

Husqvarna 530037850

SHROUD-RIGHT

$

$

Not available

15

Husqvarna 530019168

GROMMET-CARB. BOX

$

$

Not available

16

Husqvarna 530069572

SWITCH

$9.99

$

In Stock, only 1 left!

0

17

Husqvarna 530029129

ISOLATOR-ENGINE MOUNT

$

$

Not available

18

Husqvarna 530029295

ISOLATOR-TANK

$

$

Not available

19

Husqvarna 530015814

SCREW

$3.49

$

In Stock, Qty 5

0

20

Husqvarna 530014162

Fuel Tank Ass'y.

Note: (Incl. #21, 22 & 106)

$

$

Not available

21

Husqvarna 530014347

CAP ASSY W/ RETAINER

$9.49

$

In Stock, Qty 10

0

22

Husqvarna 530014362

FUEL PICK UP ASSY
(Superseded to 530095646)

$7.49

$

In Stock, Qty 20+

0

23

Husqvarna 530014160

ASSY-COVER & THROTTLE LOCK

Note: (Incl. 9, 10 & 12)

$

$

Not available

24

Husqvarna 530037847

FILTER COVER

$

$

Not available

25

Husqvarna 530029112

AIR FILTER

$

$

Not available

26

Husqvarna 530029404

AIR BAFFLE

$

$

Not available

27

Husqvarna 530069293

MUFFLER

$

$

Not available

28

Husqvarna 530029116

SPRING-MUFFLER

$

$

Not available

29

Husqvarna 530030075

Spark Plug (RCJ-8Y)

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 530015239

SCREW-1/4-20 X 13/16

$

$

Not available

31

Husqvarna 530069628

CYLINDER
(Superseded to 530071581)

Note: New part number for this IPL.

$

$

Not available

32

Husqvarna 530029425

WIRE-LEAD (SWITCH)

$

$

Not available

33

Husqvarna 530039137

IGNITION MODULE

$53.99

$

Usually ships in 3-10 days

0

34

Husqvarna 530015816

SCREW 8-32 X 3/4

$

$

Not available

35

Husqvarna 530019178

GASKET-CYL W/ADHESIVE
(Superseded to 530019267)

$4.99

$

In Stock, only 4 left!

0

36

Husqvarna 530025875

RING-PISTON (HOOKED)

$

$

Not available

37

Husqvarna 530069277

KIT-PISTON (32CC)

Note: (Incl. #36, 38, & Pin)

$

$

Not available

38

Husqvarna 530015162

WRIST PIN RET.

$3.49

$

In Stock, only 2 left!

0

39

Husqvarna 530015306

SCREW(10-24 X 7/16 HEX

$

$

Not available

40

Husqvarna 530029426

WIRE-GROUND (SWITCH)

$

$

Not available

41

Husqvarna 530015849

SCREW

$3.49

$

In Stock, only 2 left!

0

42

Husqvarna 530015254

WASHER

$

$

Not available

43

Husqvarna 530015852

CHOKE SPACER

$

$

Not available

44

Husqvarna 530029114

Choke Shutter

$

$

Not available

45

Husqvarna 530047413

DECAL-INSTRUCTION

$

$

Not available

46

Husqvarna 530037492

THROTTLE CABLE

Note: (Incl. #45)

$

$

Not available

47

Husqvarna 530029115

PLATE-AIR FILTER MTG

$

$

Not available

48

Husqvarna 530069644

CARB ASS'Y WT-141A
(Superseded to 545081825)

$

$

Not available

49

Husqvarna 530019164

GASKET-CARB

$2.49

$

In Stock, only 2 left!

0

50

Husqvarna 530019165

SEAL-FOAM/REED BLOCK

$3.99

$

In Stock, only 1 left!

0

51

Husqvarna 530015771

SCREW 1/4-20 X 7/8 (TAP

$3.99

$

In Stock, only 2 left!

0

52

Husqvarna 530029113

WIRE-GROUND/STATIC

$

$

Not available

53

Husqvarna 530047696

REED BLOCK/HEAT SHIELD

Note: New part number for this IPL.

$

$

Not available

54

Husqvarna 530019166

GASKET-REED BLOCK/C'CAS

$

$

Not available

55

Husqvarna 530027593

VALVE-REED

$5.99

$

In Stock, only 1 left!

0

56

Husqvarna 530027594

REED STOP

$

$

Not available

57

Husqvarna 530016064

SCREW
(Superseded to 545227101)

$3.99

$

In Stock, Qty 10

0

58

Husqvarna 530014033

ASSY-CRANKSHAFT

Note: -See Service Reference 2

$

$

Not available

59

Husqvarna 530015126

KEY-FLYWHEEL

$

$

Not available

60

Husqvarna 530010960

ASS'Y-CONNECTING ROD

$

$

Not available

61

Spacer

Note: -See Service Reference 2; Refer to the service reference indicated for more information.

$

$

Not available

62

Husqvarna 530032103

Inner Bearing

$

$

Not available

63

Husqvarna 530015787

RING-RETAINING

$

$

Not available

64

Husqvarna 530019158

SEAL-CRANKSHAFT

$

$

Not available

65

Husqvarna 530032102

BEARING-R8 (OUTER)

$

$

Not available

66

Husqvarna 530015789

RING-RETAINING (SHAFT)

$

$

Not available

67

Husqvarna 530014016

Crankcase Ass'y.

$

$

Not available

68

Husqvarna 530039189

FLYWHEEL

$

$

Not available

69

Husqvarna 530034798

Washer

$

$

Currently unavailable

70

Husqvarna 530023817

SPRING STR DOG

$3.99

$

In Stock, only 2 left!

0

71

Husqvarna 530038386

SPACER-FLYWHEEL

Note: New part number for this IPL.

$

$

Not available

72

Husqvarna 530014156

Crankcase/Crankshaft Assy.

$

$

Not available

73

Husqvarna 530016080

SCREW

$3.99

$

In Stock, Qty 20+

0

74

Husqvarna 530015496

SCREW-10-16 X 1/2 HI-LO

$

$

Not available

75

Husqvarna 530027523

RETAINER

$4.99

$

In Stock, only 1 left!

0

76

Starter Pulley

Note: (Incl.73)-See Service Reference 1

$

$

Not available

77

Husqvarna 530029395

SPRING-STARTER
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

78

Husqvarna 530069714

FAN HOUSING KIT

Note: (Incl. Starter Pulley) New part number for this IPL.

$

$

Not available

79

Husqvarna 530027569

HANDLE-STARTER

$4.99

$

Usually ships in 3-10 days

0

80

Husqvarna 530015775

SCREW 8-16 X 9/16 (PLAS

$3.99

$

In Stock, only 2 left!

0

81

Husqvarna 530015769

SCREW-10-24X1-3/8-TAPTI

$

$

Not available

82

Husqvarna 530029228

CLAMP-SPARK ARRESTOR

$

$

Not available

83

Husqvarna 530038508

Tube and Nozzle As'y.

$

$

Not available

84

Husqvarna 530015805

SCREW-10-14 X 1/2 PLASTITE

$3.49

$

Usually ships in 3-10 days

0

85

Husqvarna 530019167

O-RING SEAL

$

$

Not available

86

Husqvarna 530029182

EYELET-FLANGE

$

$

Not available

87

Husqvarna 530015815

SCREW-10-16X1/2 HI-LO(S

$0.99

$

Usually ships in 3-10 days

0

88

Husqvarna 530027523

RETAINER

$4.99

$

In Stock, only 1 left!

0

89

Husqvarna 530029119

TUBE-ROPE RETAINER

$

$

Not available

90

Husqvarna 530094710

HSG-BLOWER (UPPER) (BL)

$

$

Not available

91

Husqvarna 530029173

BAND-BLOWER HSG

$

$

Not available

92

Husqvarna 530014157

ASSY-IMPELLER
(Superseded to 530047077)

$

$

Not available

93

Husqvarna 530019232

MUFFLER GASKET
(Superseded to 530058957)

Note: New part number for this IPL.

$7.49

$

Usually ships in 3-10 days

0

94

Husqvarna 530015818

WASHER-IMPELLAR

$

$

Not available

95

Husqvarna 530015441

WASHER CONICAL

$

$

Not available

96

Husqvarna 530001733

NUT

$

$

Not available

97

Husqvarna 530047736

BLOWER HOUSING ASSY - BLACK

Note: (Incl. 99-103) New part number for this IPL.

$

$

Not available

98

Husqvarna 530015814

SCREW

$3.49

$

In Stock, Qty 5

0

99

Husqvarna 530047700

DOOR

Note: New part number for this IPL.

$

$

Not available

100

Husqvarna 530015667

SPRING-TORSION (RIGHT)

$

$

Not available

101

Husqvarna 530015647

PIN-PIVOT

$1.49

$

Usually ships in 3-10 days

0

103

Husqvarna 530015672

SPRING-TORSION (LEFT)

$

$

Not available

104

Husqvarna 530069348

SPARK ARRESTOR KIT

$

$

Not available

105

Husqvarna 530069232

KIT-ROPE

$7.49

$

Usually ships in 3-10 days

0

106

Husqvarna 530069247

HOSE. FUEL

$8.49

$

In Stock, Qty 20+

0

108

Husqvarna 530069294

KIT-GASKET

$

$

Not available

109

Husqvarna 530029227

SCREEN-SPARK ARRESTOR

$

$

Not available

110

Husqvarna 530069692

MUFFLER GUARD

$5.99

$

Usually ships in 3-10 days

0

Operator Manual

Note: Not Shown

$

$

Not available

Husqvarna 530083094

French/English

Note: Not Shown

$

$

Not available

Husqvarna 530083427

European

Note: Not Shown

$

$

Not available

Husqvarna 530083428

Scandinavian

Note: Not Shown

$

$

Not available

Husqvarna 530031159

HEX WRENCH 5/32

Note: Not Shown

$3.99

$

In Stock, only 1 left!

0
