132 RB - Husqvarna Brush Cutter (SN: 19931400001 & Above) HARNESS Parts Diagram

Brush Cutter

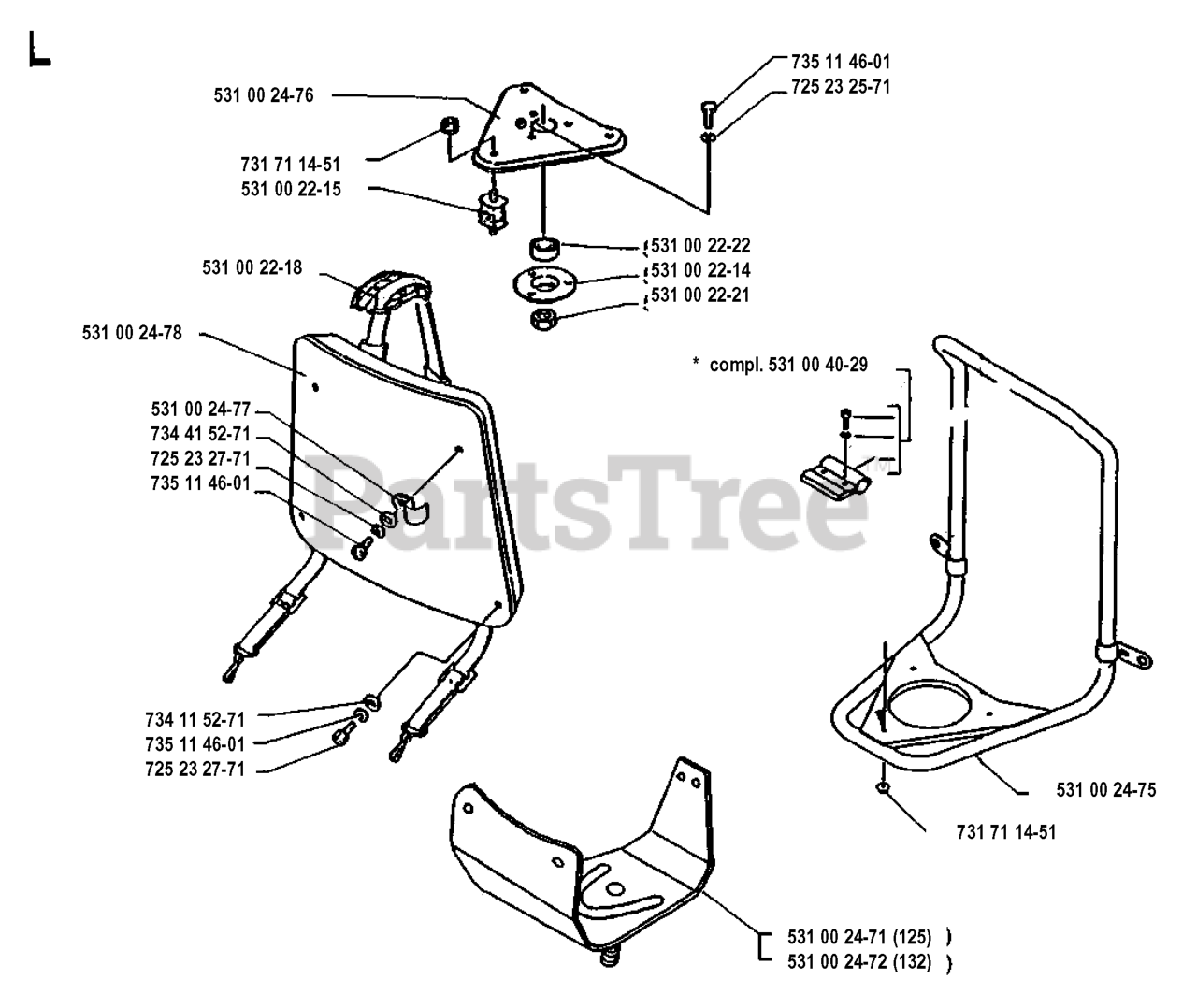

HARNESS Parts Diagram

  • Title

531 00 24-72

Husqvarna 531002472

HOLDER

Note: 132

$

$

Not available

725 23 27-71

Husqvarna 725232771

SCREW
(Superseded to 503200003)

$6.49

$

Usually ships in 3-10 days

0

735 11 46-01

Husqvarna 735114601

SPRING WASHER
(Superseded to 819070816)

$5.99

$

In Stock, only 3 left!

0

531 00 24-75

Husqvarna 531002475

FRAME

$

$

Not available

725 23 25-71

Husqvarna 725232571

SCREW

$

$

Not available

531 00 24-76

Husqvarna 531002476

BRACKET

$

$

Not available

531 00 22-15

Husqvarna 531002215

Absorber

$

$

Not available

531 00 24-77

Husqvarna 531002477

BRACKET

$

$

Not available

531 00 22-22

Husqvarna 531002222

BEARING

$

$

Not available

531 00 40-29

Husqvarna 531004029

BRACKET

$

$

Not available

731 71 14-51

Husqvarna 731711451

NUT

$6.49

$

In Stock, only 3 left!

0

531 00 22-14

Husqvarna 531002214

BEARING HOUSING

$

$

Not available

531 00 22-18

Husqvarna 531002218

BELT

$

$

Not available

734 11 52-71

Husqvarna 734115271

$

$

Currently unavailable

531 00 24-71

Husqvarna 531002471

HOLDER

Note: 125

$

$

Not available

734 41 52-71

Husqvarna 734415271

$

$

Currently unavailable

531 00 22-21

Husqvarna 531002221

NUT

$

$

Not available

531 00 24-78

Husqvarna 531002478

SUPPORT

$

$

Not available
