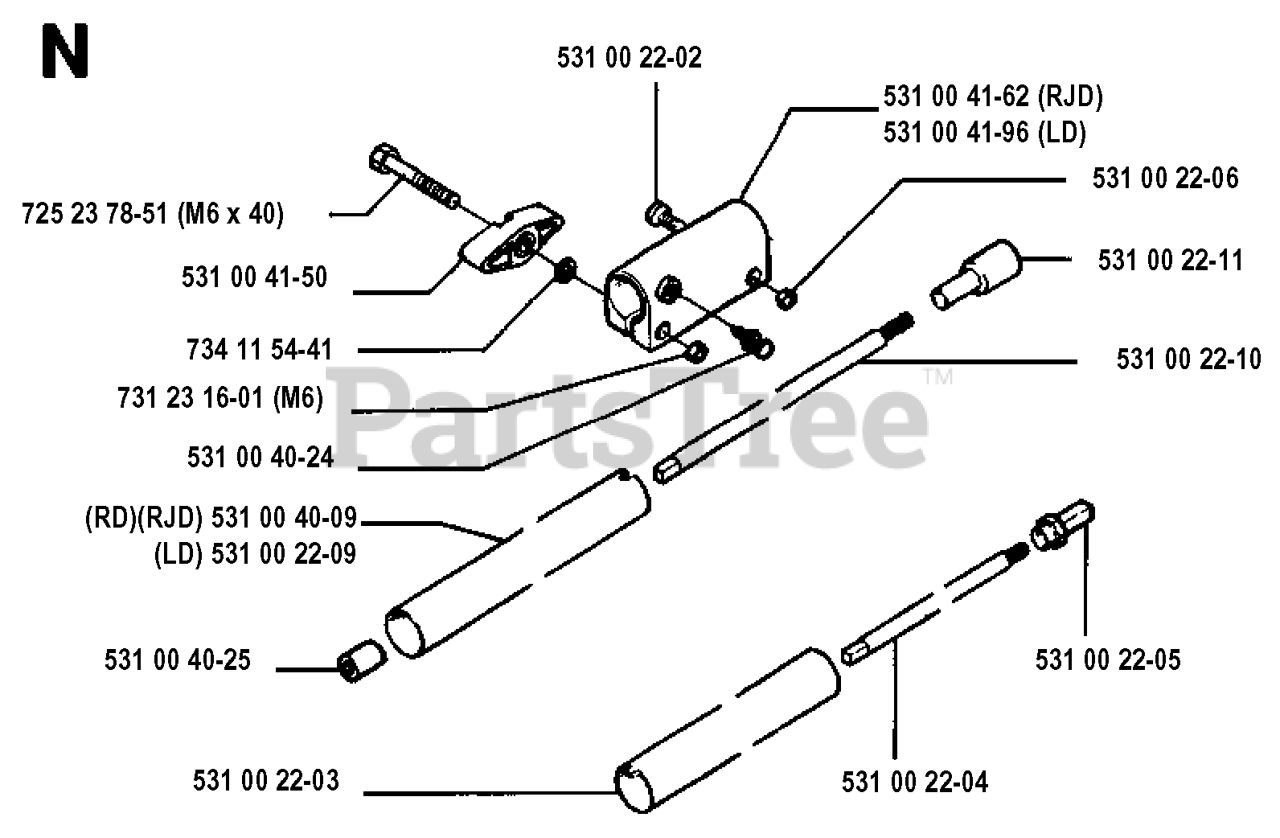

132 RD - Husqvarna String Trimmer (SN: 19931400001 & Above) SHAFT 2 Parts Diagram

String Trimmer

SHAFT 2 Parts Diagram

  • Title

531 00 22-10

Husqvarna 531002210

DRIVE SHAFT

$

$

Not available

531 00 41-50

Husqvarna 531004150

WING NUT
(Superseded to 502203801)

$8.99

$

In Stock, only 2 left!

0

531 00 22-11

Husqvarna 531002211

ADAPT LOWER

$

$

Not available

531 00 41-62

Husqvarna 531004162

Note: RJD

$

$

Currently unavailable

531 00 22-03

Husqvarna 531002203

Upper Drive Tube

$

$

Not available

734 11 54-41

Husqvarna 734115441

WASHER - 26X6.5X1.6
(Superseded to 531003379)

$3.49

$

In Stock, only 2 left!

0

531 00 22-06

Husqvarna 531002206

NUT

$

$

Not available

531 00 22-02

Husqvarna 531002202

SCREW

$

$

Not available

725 23 78-51

Husqvarna 725237851

SCREW

Note: M6 X 40

$5.99

$

In Stock, only 2 left!

0

531 00 40-09

Husqvarna 531004009

TUBE

Note: RD RJD

$

$

Not available

531 00 40-25

Husqvarna 531004025

BUSHING

$

$

Not available

531 00 22-05

Husqvarna 531002205

ADAPT UPPER

$

$

Not available

731 23 16-01

Husqvarna 731231601

NUT

Note: M6

$3.49

$

In Stock, Qty 12

0

531 00 41-96

Husqvarna 531004196

Note: LD

$

$

Currently unavailable

531 00 22-09

Husqvarna 531002209

DRIVER TUBE LOWER

Note: LD

$

$

Not available

531 00 22-04

Husqvarna 531002204

DRIVE SHAFT

$

$

Not available

531 00 40-24

Husqvarna 531004024

SCREW

$

$

Not available
