1321 PP (1690907) - Simplicity Walk-Behind Mower Repair Parts List Parts Diagram

Walk-Behind Mower

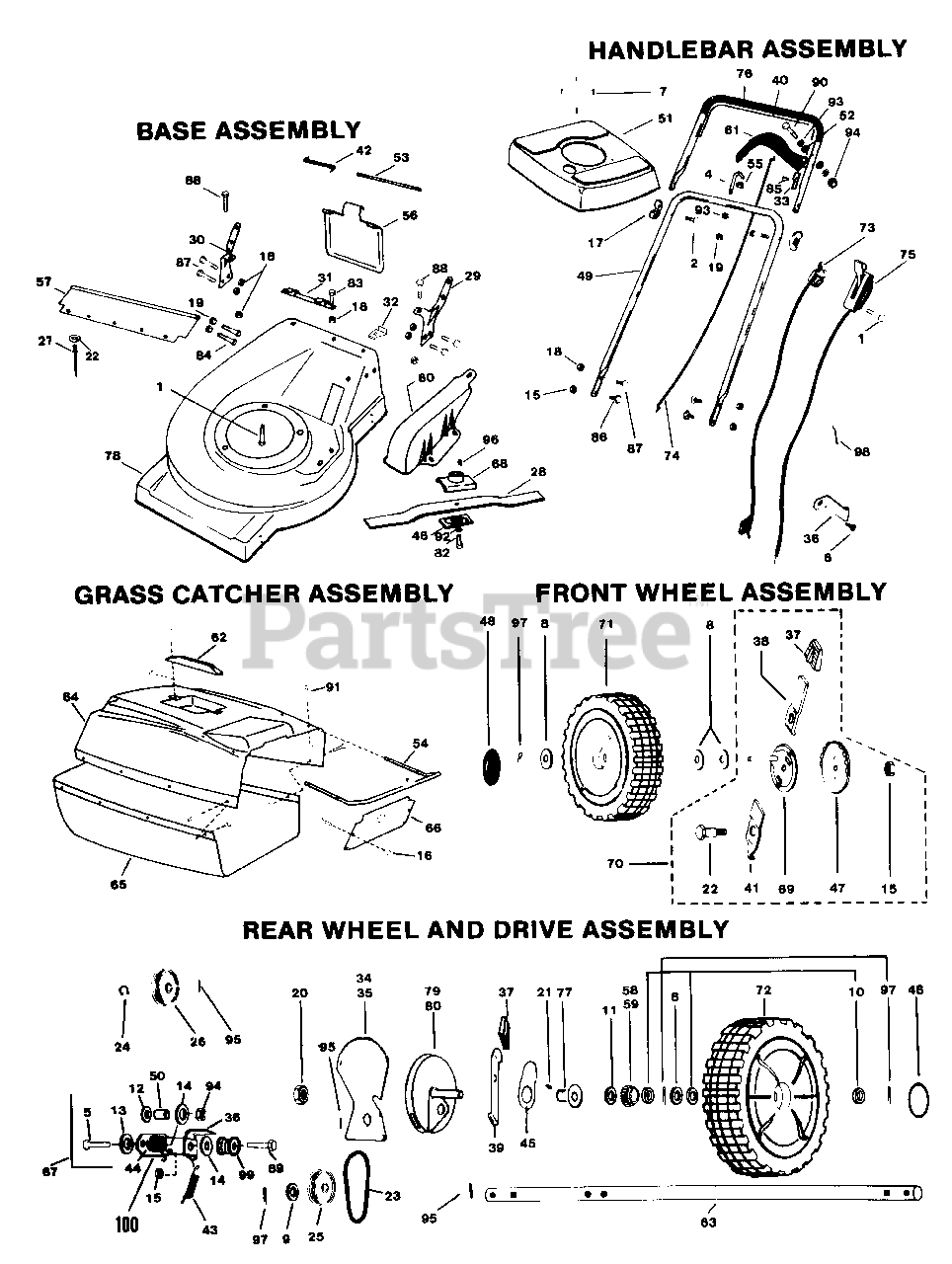

Repair Parts List Parts Diagram

  • Title

1

Simplicity 1674893

Screw .375-16 x 1.00 Ind. Hex Hd.

$

$

Not available

2

Simplicity 1674972

Saddle Bolt .312-18 x .750

$

$

Not available

3

Simplicity 1675021

Screw .250-20 x .750

$

$

Not available

4

Simplicity 1674849

J-Bolt

$

$

Not available

5

Simplicity 1675023

Screw .250-20 x 1.250

$

$

Not available

6

Simplicity 1674974

Screw #10-32 x .375

$

$

Not available

7

Simplicity 1931646SM

Screws-Engine Shroud

$4.49

$

In Stock, only 4 left!

0

8

Simplicity 2153072

Washer

$

$

Not available

9

Simplicity 1675014

Washer

$

$

Not available

10

Simplicity 1675019

Washer

$

$

Not available

11

Simplicity 1960020SM

Washer

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 1675024

Washer

$

$

Not available

13

Simplicity 1675022

Washer

$

$

Not available

14

Simplicity 1675020

Washer

$

$

Not available

15

Simplicity 1674894

Nut .375-16 Keps

$

$

Not available

16

Simplicity 1675010

Nut #10-32 Keps

$

$

Not available

17

Simplicity 1670578SM

Wing Nut

$13.99

$

In Stock, only 2 left!

0

18

Simplicity 1674896

Nut .312-18 Keps

$

$

Not available

19

Simplicity 1923358SM

Nut .250-20 Keps
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

20

Simplicity 1960259SM

1" Jam Nut

$3.99

$

Usually ships in 2-12 days

0

21

Simplicity 1674979

Key-Drive

$

$

Not available

22

Simplicity 1674885

Shoulder Bolt .375-16 x 1.00

$

$

Not available

23

Simplicity 1675005

V-Belt

$

$

Not available

24

Simplicity 1675018

Retaining Ring

$

$

Not available

25

Simplicity 1674976

Driven Pulley

$

$

Not available

26

Simplicity 1674981

Drive Pulley

$

$

Not available

27

Simplicity 1674991

Pop Rivet

$

$

Not available

28

Simplicity 1674957

Blade-21"

$

$

Not available

29

Simplicity 1674988

Lug-Handle-LH.

$

$

Not available

30

Simplicity 1674987

Lug-Handle-RH.

$

$

Not available

31

Simplicity 1674995

Attaching Bracket

$

$

Not available

32

Simplicity 1675009

Brkt.-Attaching

$

$

Not available

33

Simplicity 1674841

Brkt.-Bail Stop

$

$

Not available

34

Simplicity 1674960

Plate-Rear-RH.

$

$

Not available

35

Simplicity 1674961

Plate-Rear-LH.

$

$

Not available

36

Simplicity 1675016

Retainer .250

$

$

Not available

37

Simplicity 1674835

Knob-Red

$

$

Not available

38

Simplicity 1674888

Lever

$

$

Not available

39

Simplicity 1674963

Lever

$

$

Not available

40

Simplicity 1674973

Bail Lever

$

$

Not available

41

Simplicity 1674886

Spring

$

$

Not available

42

Simplicity 1674996

Spring Door

$

$

Not available

43

Simplicity 1674998

Drive Spring

$

$

Not available

44

Simplicity 1674984

Idler Return Spring

$

$

Not available

45

Simplicity 1674962

Spring

$

$

Not available

46

Simplicity 1674831

Retainer Plate

$

$

Not available

47

Simplicity 1674887

Plate

$

$

Not available

48

Simplicity 1675006

Hubcap

$

$

Not available

49

Simplicity 1674971

Handle-Lower

$

$

Not available

50

Simplicity 1674983

Idler Bracket Bushing

$

$

Not available

51

Simplicity 1675000

Shroud-Engine

$

$

Not available

52

Simplicity 1674966

Spacer-Clutch Handle

$

$

Not available

53

Simplicity 1674997

Rear Door Hinge

$

$

Not available

54

Simplicity 1675007

Support Rod

$

$

Not available

55

Simplicity 1674848

Rope Guide

$

$

Not available

56

Simplicity 1674992

Rear Door

$

$

Not available

57

Simplicity 1674993

Drag Pan-20"

$

$

Not available

58

Simplicity 1674978

Drive Gear-LH.

$

$

Not available

59

Simplicity 1674977

Drive Gear-R.H

$

$

Not available

60

Simplicity 1675004

Belt Cover

$

$

Not available

61

Simplicity 1674965

Clutch Handle

$

$

Not available

62

Simplicity 1675008

Handle

$

$

Not available

63

Simplicity 1674975

Axle

$

$

Not available

64

Simplicity 1675011

Top-Catcher

$

$

Not available

65

Simplicity 1675012

Bottom-Catcher

$

$

Not available

66

Simplicity 1675013

Back-Catcher

$

$

Not available

67

Simplicity 1674982

Idler Assembly

$

$

Not available

68

Simplicity 1676781

Blade Adaptor

$

$

Not available

69

Simplicity 1674889

Plates Pin

$

$

Not available

70

Simplicity 1674833

Height Adj. Ass'y.

$

$

Not available

71

Simplicity 1677785SM

Wheel Ass'y.-8"

$

$

Not available

72

Simplicity 1674958

Wheel Ass'y.-10"

$

$

Not available

73

Simplicity 1674968

Zone Restart Cable

$

$

Not available

74

Simplicity 1674967

Traction Control Cable

$

$

Not available

75

Simplicity 1677788SM

Throttle Control

$31.99

$

Usually ships in 2-12 days

0

76

Simplicity 1674964

Handle-Upper

$

$

Not available

77

Simplicity 1674980

Support Hubs Brg. Ass'y.

$

$

Not available

78

Simplicity 1674990

Deck-21"

$

$

Not available

79

Simplicity 1674986

Dust Cover-LH.

$

$

Not available

80

Simplicity 1674985

Dust Cover-RH.

$

$

Not available

81

Simplicity 2821958

Capscrew, Hex HD. .250-20 x .50

$

$

Not available

82

Simplicity 920352

Capscrew, Hex HD. .375-24 x 1.250

$

$

Not available

83

Simplicity 2827618

Bolt, Carriage .250-20 x .50

$

$

Not available

84

Simplicity 2823333

Bolt, Carriage .250-20 x .625

$

$

Not available

85

Simplicity 917452

Screw #10-32 x.50

$

$

Not available

86

Simplicity 2821965

Capscrew, Hex HD. .375-16 x .750

$

$

Not available

87

Simplicity 2831333

Bolt, Carriage .312-18 x .750

$

$

Not available

88

Simplicity 2825205

Capscrew, Hex HD. .312-18 x .625

$

$

Not available

89

Simplicity 2821963

Capscrew, Hex HD. .250-20 x 2.00

$

$

Not available

90

Simplicity 2821962

Capscrew, Hex HD. .250-20 x 1.750

$

$

Not available

91

Simplicity 918148

Screw #10-32 x .625

$

$

Not available

92

Simplicity 1916965SM

Lockwasher .375
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

93

Simplicity 2817377

Flatwasher .250

$

$

Not available

94

Simplicity 2823358

Nut, Lock .250-20

$

$

Not available

95

Simplicity 2816001SM

Roll Pin .187 x 1.00

$4.49

$

In Stock, only 1 left!

0

96

Simplicity 2810224SM

Key, Woodruff .156 x .625

$3.99

$

Usually ships in 2-12 days

0

97

Simplicity 2818451

Pin, Cotter .125 x .750

$

$

Not available

98

Simplicity 923747

Cable Tie

$

$

Not available

99

Simplicity 1676283

Idler Pulley Half

$

$

Not available

100

Simplicity 1676285

Idler Bracket

$

$

Not available

100

Simplicity 1675003

Decal-Engine Shroud

$

$

Not available

100

Simplicity 1674994

Decal-Model

$

$

Not available

100

Simplicity 1675001

Decal-21"

$

$

Not available

100

Simplicity 1674970

Decal-Clutch

$

$

Not available

100

Simplicity 1704276SM

Decal-Danger

$

$

Not available

100

Simplicity 1674865

Decal-Start & Stop

$

$

Not available

100

Simplicity 1674862

Decal-Caution

$

$

Not available

100

Simplicity 1674989

Decal-Caution

$

$

Not available

100

Simplicity 1722551SM

Decal-Simplicity

$11.99

$

In Stock, only 2 left!

0
