1322 PS (1690905) - Simplicity Walk-Behind Mower Repair Parts List Model 1322PS Mfg. No. 1690905 Parts Diagram

Walk-Behind Mower

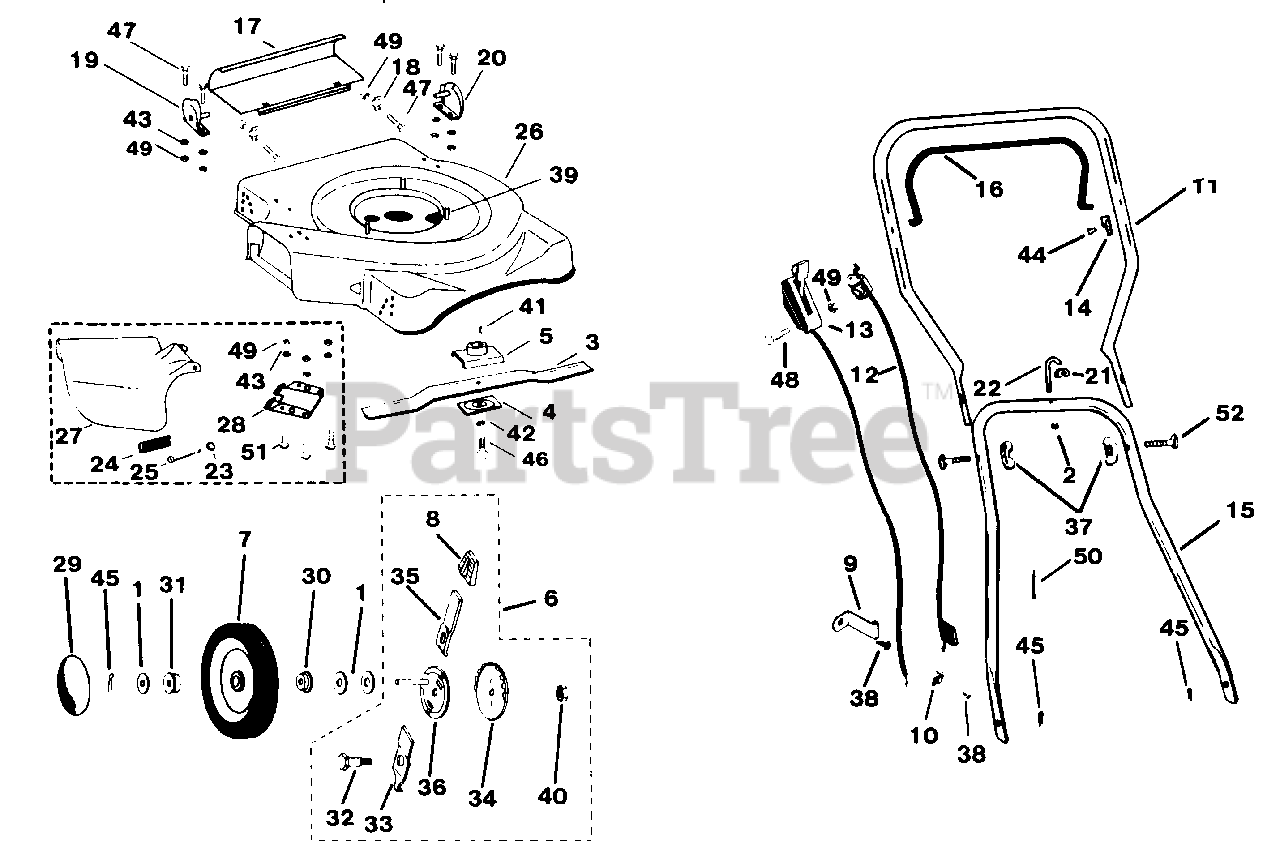

Repair Parts List Model 1322PS Mfg. No. 1690905 Parts Diagram

  • Title

1

Simplicity 2153072

Washer

$

$

Not available

2

Simplicity 1923358SM

Nut- .250-20 Keps
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

3

Simplicity 1674830

Blade-22"

$

$

Not available

4

Simplicity 1674831

Retainer Plate

$

$

Not available

5

Simplicity 1674832

Blade Adaptor

$

$

Not available

6

Simplicity 1674833

Height Adj. Ass'y.

$

$

Not available

7

Simplicity 1677785SM

Wheel Ass'y.-8"

$

$

Not available

8

Simplicity 1674835

Knob-Red

$

$

Not available

9

Simplicity 1674836

Guide-Throttle Cable

$

$

Not available

10

Simplicity 1674837

Clamp-Throttle Control

$

$

Not available

11

Simplicity 1674838

Handle-Upper

$

$

Not available

12

Simplicity 1674839

Zone Restart Cable

$

$

Not available

13

Simplicity 1674840

Throttle Control

$

$

Not available

14

Simplicity 1674841

Brkt.-Bail Stop

$

$

Not available

15

Simplicity 1674842

Handle-Lower

$

$

Not available

16

Simplicity 1674843

Bail

$

$

Not available

17

Simplicity 1674844

Drag Guard-22"

$

$

Not available

18

Simplicity 1674845

Brkt.-Drag Pin Hinge

$

$

Not available

19

Simplicity 1674846

Brkt.-Handle-R.H.

$

$

Not available

20

Simplicity 1674847

Brkt.-Handle-L.H.

$

$

Not available

21

Simplicity 1674848

Rope Guide

$

$

Not available

22

Simplicity 1674849

J-Bolt

$

$

Not available

23

Simplicity 1674851

Push Nut

$

$

Not available

24

Simplicity 1674852

Spring-Torsion

$

$

Not available

25

Simplicity 1674853

Pin

$

$

Not available

26

Simplicity 1674854

Deck-22"

$

$

Not available

27

Simplicity 1674855

Chute

$

$

Not available

28

Simplicity 1674856

Hinge Bracket

$

$

Not available

29

Simplicity 1674857

Hubcap

$

$

Not available

30

Simplicity 1674883

Bearing-Inner

$

$

Not available

31

Simplicity 1674884

Bearing-Outer

$

$

Not available

32

Simplicity 1674885

Shoulder Bolt- .375-16 x 1.00

$

$

Not available

33

Simplicity 1674886

Spring

$

$

Not available

34

Simplicity 1674887

Plate

$

$

Not available

35

Simplicity 1674888

Lever

$

$

Not available

36

Simplicity 1674889

Plates Pin

$

$

Not available

37

Simplicity 1670578SM

Wing Nut

$13.99

$

In Stock, only 1 left!

0

38

Simplicity 1674891

Screw-#10 x .625

$

$

Not available

39

Simplicity 1674893

Screw- .375-16 x 1.00 Ind. Hex HD.

$

$

Not available

40

Simplicity 1674894

Nut-.375-16 Keps

$

$

Not available

41

Simplicity 2810224SM

Key, Woodruff .156 x .625

$3.99

$

Usually ships in 2-12 days

0

42

Simplicity 1916965SM

Lockwasher- .375
(Superseded to 703454)

$3.49

$

In Stock, Qty 10

0

43

Simplicity 2817377

Washer .250

$

$

Not available

44

Simplicity 917452

Screw-#10-32 x .50

$

$

Not available

45

Simplicity 2818451

Pin, Cotter .125 x .750

$

$

Not available

46

Simplicity 920352

Capscrew, Hex Hd.-.375-24 x 1.250

$

$

Not available

47

Simplicity 2821958

Capscrew, Hex Hd.-.250-20 x .50

$

$

Not available

48

Simplicity 2821963

Capscrew, Hex Hd.-.250-20 x 2.00

$

$

Not available

49

Simplicity 2823358

Nut, Lock .250-20

$

$

Not available

50

Simplicity 2832747SM

Plastic Cable Tie

$3.99

$

Usually ships in 2-12 days

0

51

Simplicity 2827618

Bolt, Carriage .250-20 x .50

$

$

Not available

52

Simplicity 1675297

Saddle Bolt- .312 18 x 1.750

$

$

Not available

52

Simplicity 1704276SM

Decal-Danger (Side deck in Front of discharge opening)

$

$

Not available

52

Simplicity 1722551SM

Decal-Simplicity (Top of Deck)

$11.99

$

In Stock, only 2 left!

0

52

Simplicity 1674858

Decal-22" (On front lip of Deck)

$

$

Not available

52

Simplicity 1674860

Decal-Be Careful (Rear top of Deck)

$

$

Not available

52

Simplicity 1674861

Decal-Caution (On Guard)

$

$

Not available

52

Simplicity 1674862

Decal-Caution (By Deflector)

$

$

Not available

52

Simplicity 1674865

Decal-Start & Stop (On top of upper handle)

$

$

Not available
