1322 PS (1691191) - Simplicity Walk-Behind Mower Parts List for Simplicity 1322PS (1691191) Parts Diagram

Walk-Behind Mower

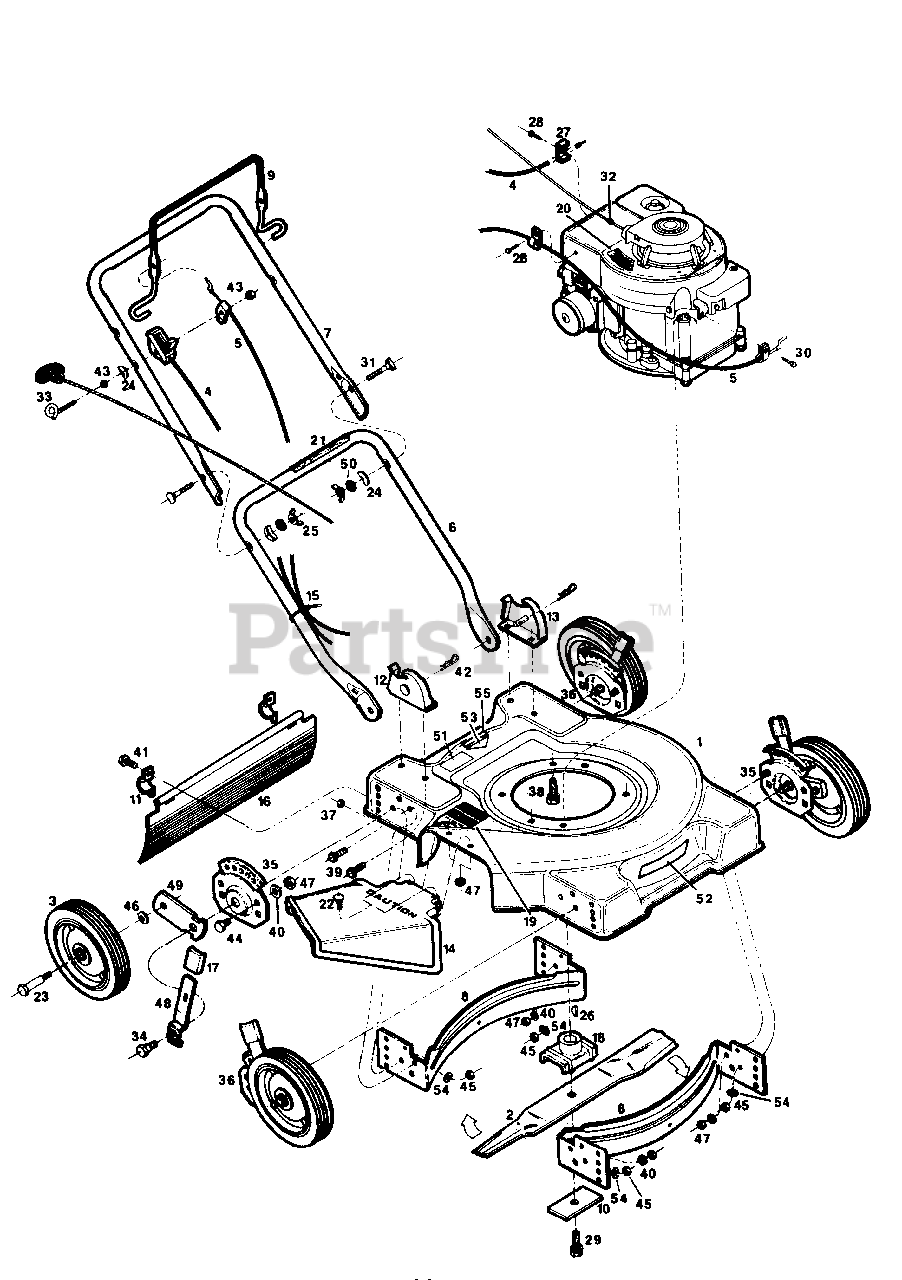

Parts List for Simplicity 1322PS (1691191) Parts Diagram

  • Title

1

Simplicity 1679122

Deck-22"

$

$

Not available

2

Simplicity 1679123

Blade-22"

$

$

Not available

3

Simplicity 1677785SM

Wheel-8x1.75

$

$

Not available

4

Simplicity 1679125

Control-Throttle with Cable

$

$

Not available

5

Simplicity 1677786

Cable-Engine/Blade Control

$

$

Not available

6

Simplicity 1677790

Handle-Lower

$

$

Not available

7

Simplicity 1679126

Handle-Upper

$

$

Not available

8

Simplicity 1679127

Baffle-Deck

$

$

Not available

9

Simplicity 1677798

Bail-Engine/Blade Control

$

$

Not available

10

Simplicity 1677792

Washer-Blade

$

$

Not available

11

Simplicity 1677793

Clip-Trailing Shield

$

$

Not available

12

Simplicity 1677794

Bracket-Handle, RH

$

$

Not available

13

Simplicity 1677795

Bracket-Handle, LH

$

$

Not available

14

Simplicity 1679128

Deflector-Discharge Chute

$

$

Not available

15

Simplicity 1701011SM

Cable Tie

$5.49

$

In Stock, only 2 left!

0

16

Simplicity 1679129

Shield-Trailing, 22"

$

$

Not available

17

Simplicity 1677802

Tip-Adjusting Lever

$

$

Not available

18

Simplicity 1664060

Adapter-Blade

$

$

Not available

19

Simplicity 1677959

Decal-Danger

$

$

Not available

20

Simplicity 1677975

Decal-Blade Warning

$

$

Not available

21

Simplicity 1677963

Decal-Starting Instructions

$

$

Not available

22

Simplicity 1960252SM

Bolt-Carriage 1/4-20 x 5/8

$3.99

$

In Stock, only 2 left!

0

23

Simplicity 1668701

Bolt-Wheel See 1319PS

$

$

Not available

24

Simplicity 1717312SM

Washer-Curved, 5/16

$

$

Not available

25

Simplicity 918468

Wingunt-5/16-18

$

$

Not available

26

Simplicity 2810224SM

Key-Woodruff #6

$3.99

$

Usually ships in 2-12 days

0

27

Simplicity 1677808

Clamp-Throttle Cable

$

$

Not available

28

Simplicity 1677805

Screw-Self Tap, #10-5/8

$

$

Not available

29

Simplicity 1677810

Bolt-Blade w/Lockwasher

$

$

Not available

30

Simplicity 1654998

Screw-Hex #10-32 x 3/8

$

$

Not available

31

Simplicity 1665221

Bolt-Curved Head, 5/16-18 x 1-3/4

$

$

Not available

32

Simplicity 1677809

Stop-Rope

$

$

Not available

33

Simplicity 1677811

Eyebolt-Rope Guide

$

$

Not available

34

Simplicity 1664066

Bolt-Shoulder 3/8-16

$

$

Not available

35

Simplicity 1677813

Plate-Adjuster RH Rear, LH Front

$

$

Not available

36

Simplicity 1677814

Plate-Adjuster LH Rear, RH Front

$

$

Not available

37

Simplicity 2833896

Nut-Hex #10-24 Nylok

$

$

Not available

38

Simplicity 1927187SM

Bolt-Hex 3/8-16 x 7/8 Thd. Form

$4.49

$

In Stock, only 4 left!

0

39

Simplicity 1925003SM

Bolt-Self Tap, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

40

Simplicity 1921319SM

Washer-Flat 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0

41

Simplicity 1933737SM

Bolt-Hex #10-24 x 1/2

$3.49

$

In Stock, only 2 left!

0

42

Simplicity 1960074SM

Hitchpin #3
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

43

Simplicity 2828372SM

Nut-Hex 1/4-20 Keps
(Superseded to 703914)

$3.49

$

In Stock, Qty 18

0

44

Simplicity 1923341SM

Bolt-Hex 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

45

Simplicity 1930645SM

Nut-Hex 3/8-16 Lock
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

46

Simplicity 1677816

Washer-Belleville

$

$

Not available

47

Simplicity 1923358SM

Nut-Hex 1/4-20 Lock
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

48

Simplicity 1664080

Setting Lever-Height Adjustment

$

$

Not available

49

Simplicity 1677821

Arm-Wheel

$

$

Not available

50

Simplicity 1923300SM

Washer-Shakeproof 5/16

$3.99

$

In Stock, only 4 left!

0

51

DECAL, Model Number

$

$

Not available

52

Simplicity 106719

Decal-Simplicity, Front

$

$

Not available

53

DECAL, OPEI

$

$

Not available

54

Simplicity 2819326

Washer-Flat 3/8

$

$

Not available

55

DECAL, "Meets C.P.S.C. Standards"

$

$

Not available
