1330-0 - Generac 2,000 PSI Pressure Washer Main Unit Parts Diagram

2,000 PSI Pressure Washer

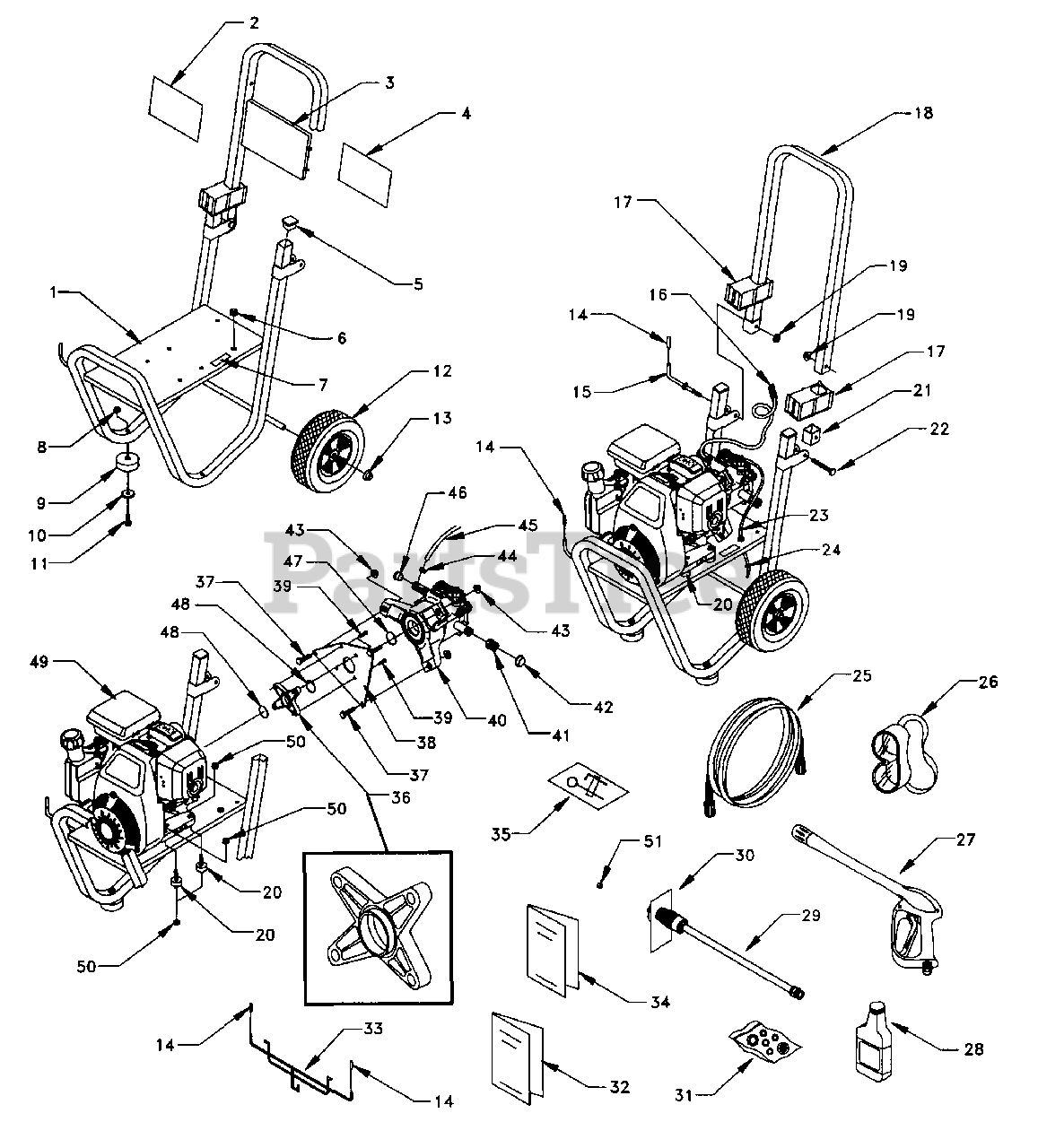

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton AB2789

FRAME, Weldment
(Superseded to AB2789GS)

$151.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B4324

DECAL, 2000 PSI
(Superseded to B4324GS)

$11.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B1631A

BILLBOARD, Plastic
(Superseded to B1631AGS)

$35.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton B2796

DECAL, Start Instructions
(Superseded to B2796GS)

$11.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 46476

CAPLUG, 1 Sq. x 16 GA
(Superseded to 46476GS)

$2.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 30809

GROMMET, 1/8" - 11/16"
(Superseded to 30809GS)

$4.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 20566

DECAL, 1-800 #
(Superseded to 20566GS)

$1.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 52858

NUT, Locking M8 1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 3 left!

0

9

Briggs & Stratton 27007

VIB MOUNT, Donut Type
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 8

0

10

Briggs & Stratton 50190

FLAT WASHER, 10 GA
(Superseded to 50190GS)

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 39287

HHCS, M8 1.25 x 45
(Superseded to 39287GS)

$3.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton B2142

WHEEL, Black Mag 2" x 9"
(Superseded to B2142GS)

$19.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 75402

PUSHNUT, 1/2" Dia.
(Superseded to 194062GS)

$4.49

$

In Stock, only 4 left!

0

14

Briggs & Stratton B1460

CAP, Black Vinyl
(Superseded to B1460GS)

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton B2759

HOOK, Square Neck Gun
(Superseded to B2759GS)

$3.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton A1041

FILTER, Chemical Hose
(Superseded to 709496)

$6.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton B1779

COVER, Hinge
(Superseded to B1779GS)

$8.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton AB2534

HANDLE, Vertical
(Superseded to AB2534GS)

$94.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton B2071

NUT, Locking Flange 1/4" - 20
(Superseded to 194005GS)

$2.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 21217

MOUNT, Rubber Shock
(Superseded to 21217GS)

$7.49

$

In Stock, only 1 left!

0

21

Briggs & Stratton B2347

CAP, End of Tube
(Superseded to B2347GS)

$2.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 31669

CARRIAGE BOLT, 1/4" - 20 x 1-3/4"
(Superseded to 31669GS)

$3.49

$

In Stock, only 2 left!

0

23

Briggs & Stratton B3107

HOSE, Thermal Drain
(Superseded to B3107GS)

$12.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 48031B

CLAMP, Hose 3/8" Band
(Superseded to 48031BGS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton B3607

HOSE, 1/4" x 25'

$

$

Currently unavailable

26

Briggs & Stratton 87815

GOGGLES, Safety
(Superseded to 87815GS)

$12.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B3263

GUN, High Pressure
(Superseded to 704312)

$93.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton BB3061B

OIL, Engine
(Superseded to 100005)

$8.99

$

In Stock, Qty 8

0

29

Briggs & Stratton B3335

WAND, Adjustable Nozzle
(Superseded to 205015CGS)

$67.99

$

In Stock, only 3 left!

0

30

Briggs & Stratton 97566

TAG, Nozzle Instruction
(Superseded to 97566GS)

$1.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton B3057

KIT, Maintenance

$

$

Currently unavailable

32

Briggs & Stratton B4319

MANUAL, Owners 1330-0
(Superseded to B4319GS)

$14.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton B2168

WIREFORM

$

$

Currently unavailable

34

Briggs & Stratton B3294

MANUAL, Engine Honda
(Superseded to B3294GS)

$14.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton B2163

KIT, Nozzle Cleaning

$

$

Currently unavailable

36

Briggs & Stratton B2486

ADAPTER, Engine
(Superseded to B2486GS)

$47.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 42909

HHCS, M8 - 1.25 x 30
(Superseded to 42909GS)

$3.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 97739

PLATE, Pump Mounting
(Superseded to 97739GS)

$18.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 30209

HHCS, 5/16" - 24 x 1 1/4"
(Superseded to 30209GS)

$2.49

$

Usually ships in 2-12 days

0

40

-----

ASSY., PUMP EG Horizontal

Note: (For Replacement, order 198347GS)

$

$

Not available

40

Briggs & Stratton 198347GS

REPLACEMENT PUMP ASSEMBLY
(Superseded to 317054GS)

$457.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 21424

CONNECTOR, Garden Hose
(Superseded to 5022163)

$1985.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton A1408

CAP, Garden Hose Connector
(Superseded to A1408GS)

$2.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton B1880

NUT, M8 with Washer
(Superseded to B1880GS)

$3.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 48031G

CLAMP, Hose 3/16" Band
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton A1040A

HOSE, Chemical 42" Clear
(Superseded to A1040AGS)

$10.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 97100

CAP, High Pressure Adaptor
(Superseded to 97100GS)

$3.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 98300

SEAL, Engine Donut
(Superseded to 98300GS)

$11.99

$

In Stock, only 1 left!

0

48

Briggs & Stratton B2218

O-RING, 1.625" I.D. x .103"
(Superseded to B2218GS)

$3.99

$

In Stock, only 2 left!

0

49

Briggs & Stratton ~NSP

ENGINE, Honda 5HP

$

$

Currently unavailable

50

Briggs & Stratton 67989

NUT, M8 Flange Serr.
(Superseded to 67989GS)

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 21761

NOZZLE, 1.05 Yellow Replacement

$

$

Not available
