1330 (132-233F100) - Cub Cadet Garden Tractor (SN: 207401 - 239300) Electrical Parts Diagram

Garden Tractor

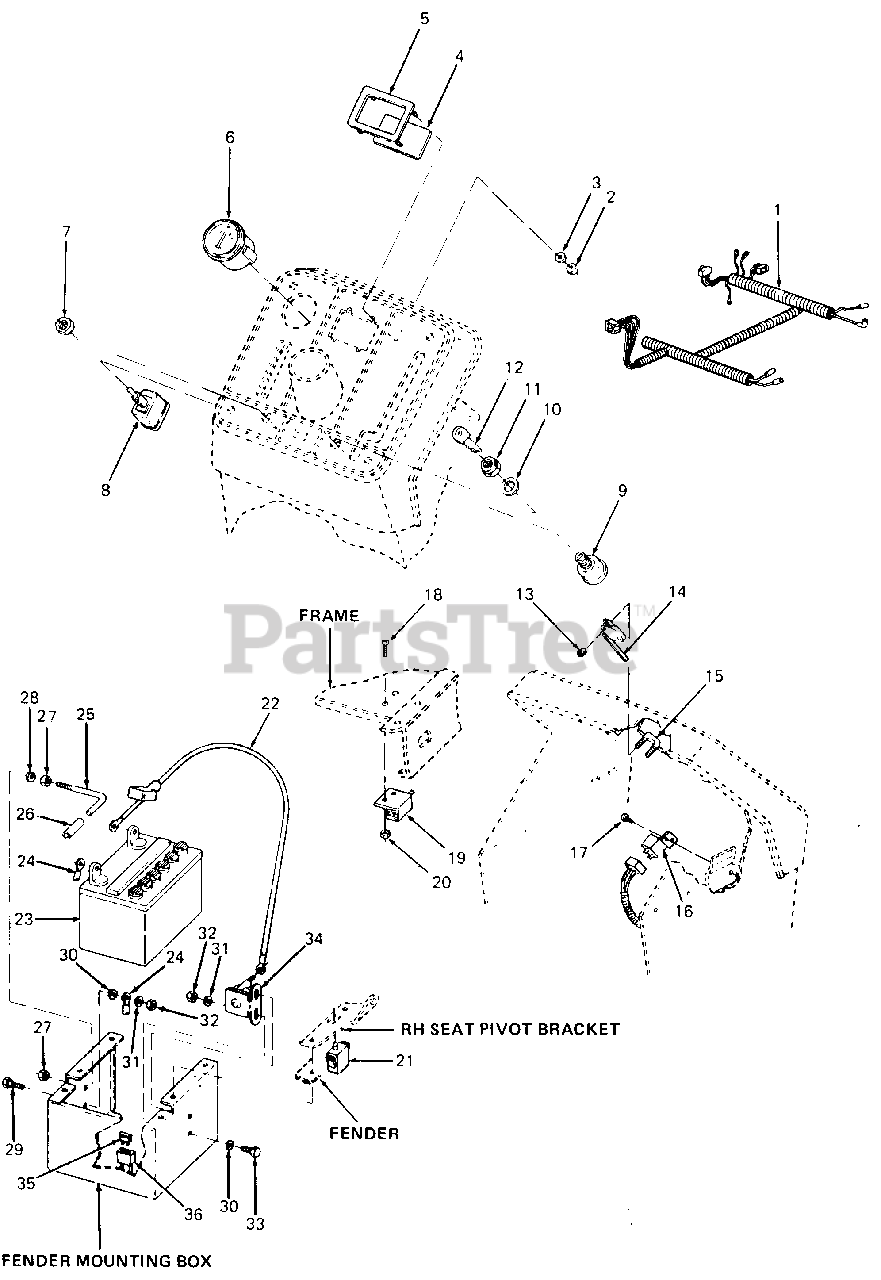

Electrical Parts Diagram

  • Title

1

Cub Cadet 725-3170

Harness, Wire
(Superseded to 925-3170)

$

$

Not available

2

Cub Cadet 712-3060

Nut, Self-Threading Pal

$

$

Not available

3

Cub Cadet 735-0640

Washer, Rubber, .18 X .50 X .06 Thk

$

$

Not available

4

Cub Cadet 779-3293

Label, Indicator

$

$

Not available

5

Cub Cadet 731-3049

Bezel, Light

$

$

Not available

6

Cub Cadet 725-3141

Ammeter
(Superseded to 925-3141)

$66.99

$

In Stock, only 4 left!

0

7

Cub Cadet 712-3014

Nut, Hex, 1/2-27 X .100 Thk

$

$

Not available

8

Cub Cadet 725-0893

Switch, PTO
(Superseded to 925-0893)

$87.99

$

In Stock, Qty 11

0

9

Cub Cadet 725-3026

Switch, Ignition Key
(Superseded to 925-3026)

$46.99

$

In Stock, Qty 7

0

10

Cub Cadet 736-0302

Washer, Flat

$

$

Not available

11

Cub Cadet 712-3013

Nut, Ignition Switch

$

$

Not available

12

Cub Cadet 759-3476A

Key, Ignition (Set of 2)
(Superseded to 925-0201)

$9.99

$

In Stock, Qty 9

0

13

Cub Cadet 712-3052

Nut, Hex Insert Lock, #4-40

$

$

Not available

14

Cub Cadet 725-3066

Switch, Micro
(Superseded to 925-3066)

$

$

Not available

15

Cub Cadet 711-3259

Screw, Switch

$

$

Not available

16

Cub Cadet 725-1375

Relay
(Superseded to 925-1375)

$75.99

$

In Stock, Qty 5

0

17

Cub Cadet 710-0748

Screw, Pan Hd Tapp, #12 X .50 Lg

$

$

Not available

18

Cub Cadet 710-0519

Screw, #10-24 X .50 Lg

$

$

Not available

19

Cub Cadet 725-3169A

Switch, Double Poled Plunger
(Superseded to 925-04039)

$25.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-0998

Nut, Hex Center Lock, #10-24

$3.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 725-3164

Switch, Interlock
(Superseded to 925-3164A)

$42.99

$

In Stock, Qty 10

0

22

Cub Cadet 725-0221

Wire, Positive Battery

$

$

Currently unavailable

23

Cub Cadet 725-3061

Battery, 12 Volt
(Superseded to 925-1707D)

$

$

Not available

Cub Cadet 710-0451

Bolt, Carriage, 5/16-18 X .75 Lg

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-3010

Nut, Hex, 5/16-18

$4.99

$

In Stock, Qty 20+

0

24

Cub Cadet 725-0977

Wire, Ground, 11.5 Lg

$

$

Not available

25

Cub Cadet 747-0216

Pin, Locking

$

$

Not available

26

Fuel Line, 2 in. Long

Note: (Use Bulk Fuel Line Part No. 759-3330, 10 ft. Lg)

$

$

Not available

27

Cub Cadet 712-3057

Nut, Hex, 5/16-24 GR5
(Superseded to 912-3057)

$7.49

$

In Stock, Qty 8

0

28

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

29

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 X .62 Lg GR5

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 736-3006

Washer, Int Ext Lock, 1/4 X 3/4

$6.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-0173

Washer, Flat, .281 X .73 X .063 Thk

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 712-0107

Nut, Hex Patch Lock, 1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

33

Cub Cadet 710-3013

Screw, Hex Cap, 1/4-20 X .50 Lg GR5

$4.99

$

In Stock, Qty 7

0

34

Cub Cadet 725-1426

Solenoid, 12 Volt
(Superseded to 925-1426A)

$28.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 16

0

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR5

$4.99

$

In Stock, Qty 11

0

35

Cub Cadet 725-1381

Fuse, Auto Type, 20 Amp
(Superseded to 925-1381)

$6.99

$

In Stock, Qty 10

0

36

Cub Cadet 729-0207

Fuse Holder

$

$

Not available

Cub Cadet 729-0209

Clip, Fuse Holder Mtg

$

$

Not available
