1330 (133-233F100) - Cub Cadet Garden Tractor (SN: 207401 - 239300) Brake Pedal & Connections Parts Diagram

Garden Tractor

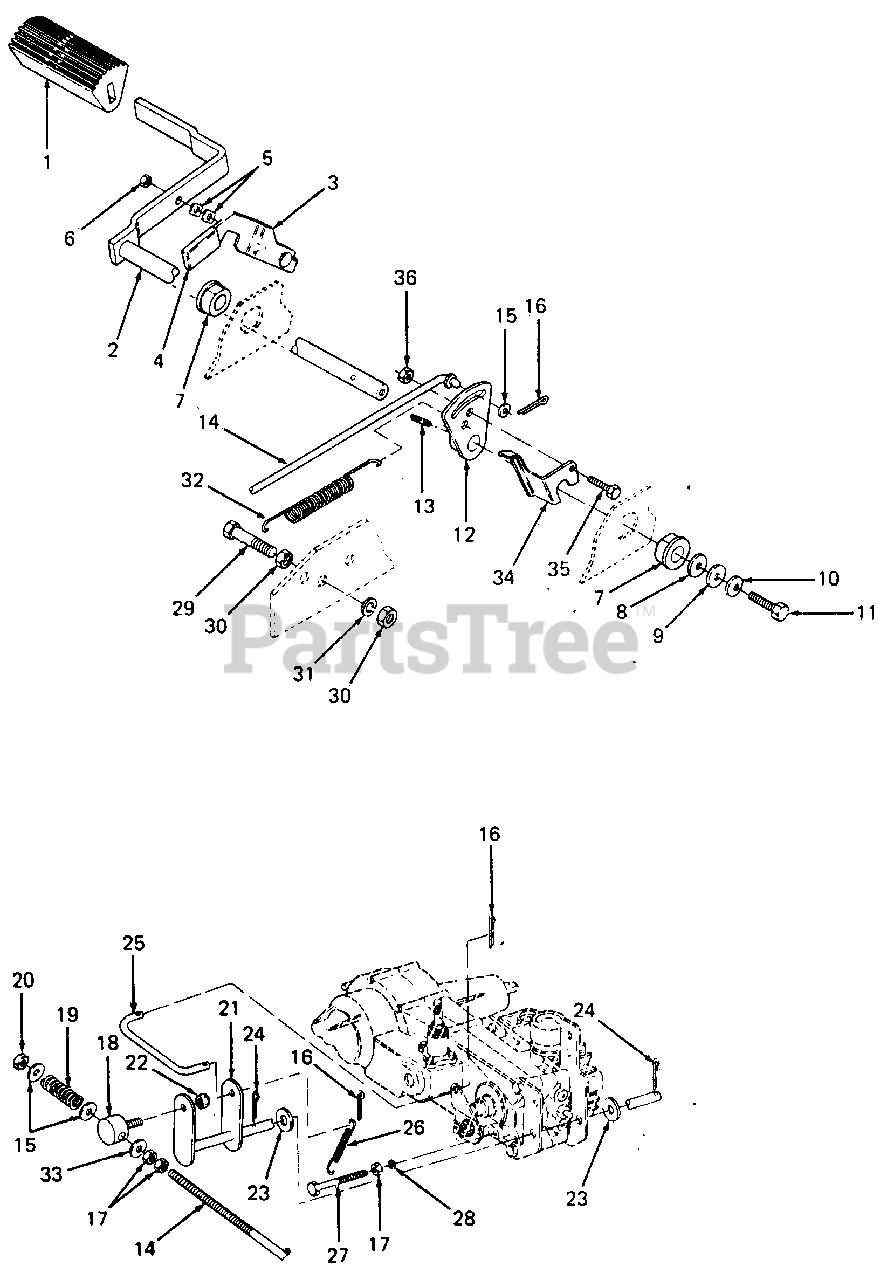

Brake Pedal & Connections Parts Diagram

  • Title

1

Cub Cadet 735-0189

Pad, Foot

$

$

Not available

2

Cub Cadet 703-1532

Pedal, Brake

Variations

703-1532-0498

Cub Cadet 703-1532-0498

BRAKE PEDAL ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

$

$

3

Cub Cadet 703-1393

Bracket, Parking Brake

Variations

703-1393-0498

Cub Cadet 703-1393-0498

BRACKET ASSEMBLY-PARKING (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

4

Cub Cadet 720-3019

Grip, Parking Brake
(Superseded to 920-3019)

$

$

Not available

5

Cub Cadet 736-3001

Washer, Wave

$

$

Not available

6

Cub Cadet 712-0324

Nut, Hex Insert Lock, 1/4-20

$3.99

$

In Stock, only 2 left!

0

7

Cub Cadet 748-0209

Bearing, Flange
(Superseded to 948-0209)

$23.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 736-0156

Washer, Flat, .635 X 1.12 X .090 Thk

$4.99

$

In Stock, Qty 11

0

9

Cub Cadet 736-0176

Washer, Flat, .26 X .93 X .120 Thk

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 736-0270

Washer, Bell, .265 X .75 X .062 Thk

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 X .75 Lg GR5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 703-1558A

Cam, Brake

$

$

Currently unavailable

13

Cub Cadet 715-0134

Pin, Spiral Spring, 3/16 Dia X 1.5 Lg
(Superseded to 915-0134)

$

$

Not available

14

Cub Cadet 747-3131

Rod, Brake

$17.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 736-0173

Washer, Flat, .281 X .73 X .063 Thk

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 714-0507

Pin, Cotter, 3/32 X .75 Lg

$4.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 712-0298

Nut, Hex Jam, 1/4-20
(Superseded to 912-0298)

$6.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 711-0471

Ferrule

$

$

Not available

19

Cub Cadet 732-0330

Spring, Compression, .58 OD X 2.00 Lg
(Superseded to 932-0330)

$

$

Not available

20

Cub Cadet 712-0291

Nut, Hex Center Lock, 1/4-20

$4.99

$

In Stock, only 3 left!

0

21

Cub Cadet 703-1634

Shaft, Brake

$

$

Not available

22

Cub Cadet 712-0429

Nut, Hex Insert Lock, 5/16-18

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 736-0272

Washer, Flat, .510 X 1.0 X .060 Thk

$5.49

$

In Stock, Qty 20+

0

24

Cub Cadet 714-0115

Pin, Cotter, 1/8 Dia X 1.0 Lg

$4.49

$

In Stock, only 2 left!

0

25

Cub Cadet 747-3130

Link, Brake

$

$

Not available

26

Cub Cadet 732-0339

Spring, Extension
(Superseded to 932-0339)

$

$

Not available

27

Cub Cadet 710-3201

Screw, Hex Patch, 1/4-20 X 1.5 Lg GR5

$

$

Not available

28

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 12

0

29

Cub Cadet 710-0194

Screw, Hex Cap, 3/8-16 X 3.0 Lg

$

$

Not available

30

Cub Cadet 712-3017

Nut, Hex, 3/8-16 GR5

$4.49

$

In Stock, only 2 left!

0

31

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 11

0

32

Cub Cadet 732-0429A

Spring, Extension, .50 OD X 3.97 Lg
(Superseded to 932-0429A)

$9.49

$

In Stock, Qty 20+

0

33

Cub Cadet 736-0142

Washer, Flat, .281 X .50 OD X .063 Thk

$4.99

$

In Stock, Qty 20+

0

34

Cub Cadet 703-1897

Bracket, Switch Actuator

Note: (For tractors w/serial no. 170,600 and above)

Variations

703-1897-0637

Cub Cadet 703-1897-0637

BRACKET-SWITCH ACTUAT - POWDER BLACK (0637)

$

$

Not available

$

$

35

Cub Cadet 710-0289

Screw, Hex Cap, 1/4-20 X .50 Lg
(Superseded to 910-0289)

Note: (For tractors w/serial no. 170,600 and above)

$3.99

$

In Stock, only 3 left!

0

36

Cub Cadet 712-0107

Nut, Hex Patch Lock, 1/4-20
(Superseded to 912-0107)

Note: (For tractors w/serial no. 170,600 and above)

$4.99

$

Usually ships in 3-6 days
