1330 SB (961930042-00) - Husqvarna 30" Snow Blower (2008-11) Control Panel / Discharge Chute Parts Diagram

30" Snow Blower

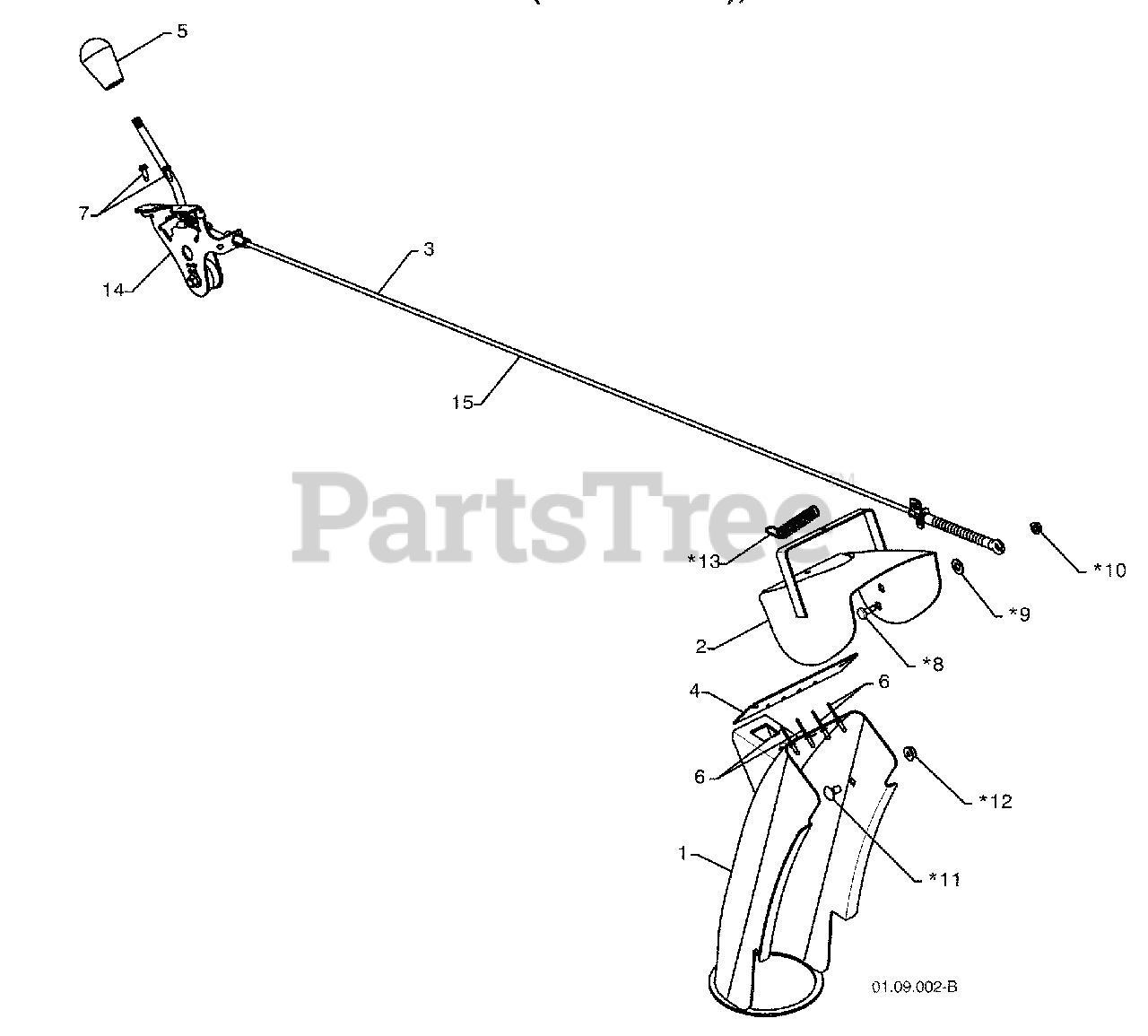

Control Panel / Discharge Chute Parts Diagram

  • Title

1

Husqvarna 532407650

CHUTE WELDMENT
(Superseded to 532444041)

$78.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532184113

DEFLECTOR WELDMENT
(Superseded to 588077802)

$120.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532420673

DEFLECTOR CONTROL ASSEMBLY
(Superseded to 587030801)

$80.99

$

In Stock, Qty 6

0

4

Husqvarna 532420325

DEFLECTOR SEAL

$7.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532414280

KNOB BLACK

$7.49

$

In Stock, only 1 left!

0

6

Husqvarna 532128415

POP RIVET

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 817501010

SCREW 10-24 X .625

$

$

Not available

8

Husqvarna 532179829

SHOULDER SCREW

$6.49

$

In Stock, Qty 11

0

9

Husqvarna 532179246

PLASTIC WASHER

$7.49

$

In Stock, Qty 12

0

10

Husqvarna 532191730

NUT 1/4-20

$7.49

$

In Stock, Qty 8

0

11

Husqvarna 872250505

CARRIAGE BOLT 5/16-18 X .50
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 532751153

NUT 5/16-18

$4.99

$

In Stock, Qty 9

0

13

Husqvarna 532184505

DEFLECTOR SPRING

$7.49

$

In Stock, Qty 20+

0

14

Husqvarna 532420679

SERVICE PART) DEFLECTOR CONTROL HEAD
(Superseded to 587030801)

$80.99

$

In Stock, Qty 6

0

15

Husqvarna 532420672

SERVICE PART) DEFLECTOR CONTROL CABLE
(Superseded to 587030901)

$80.99

$

In Stock, only 1 left!

0
