1330 SBE OV (961930023-00) - Husqvarna 30" Snow Blower (2008-01) Chassis / Engine / Pulleys Parts Diagram

30" Snow Blower

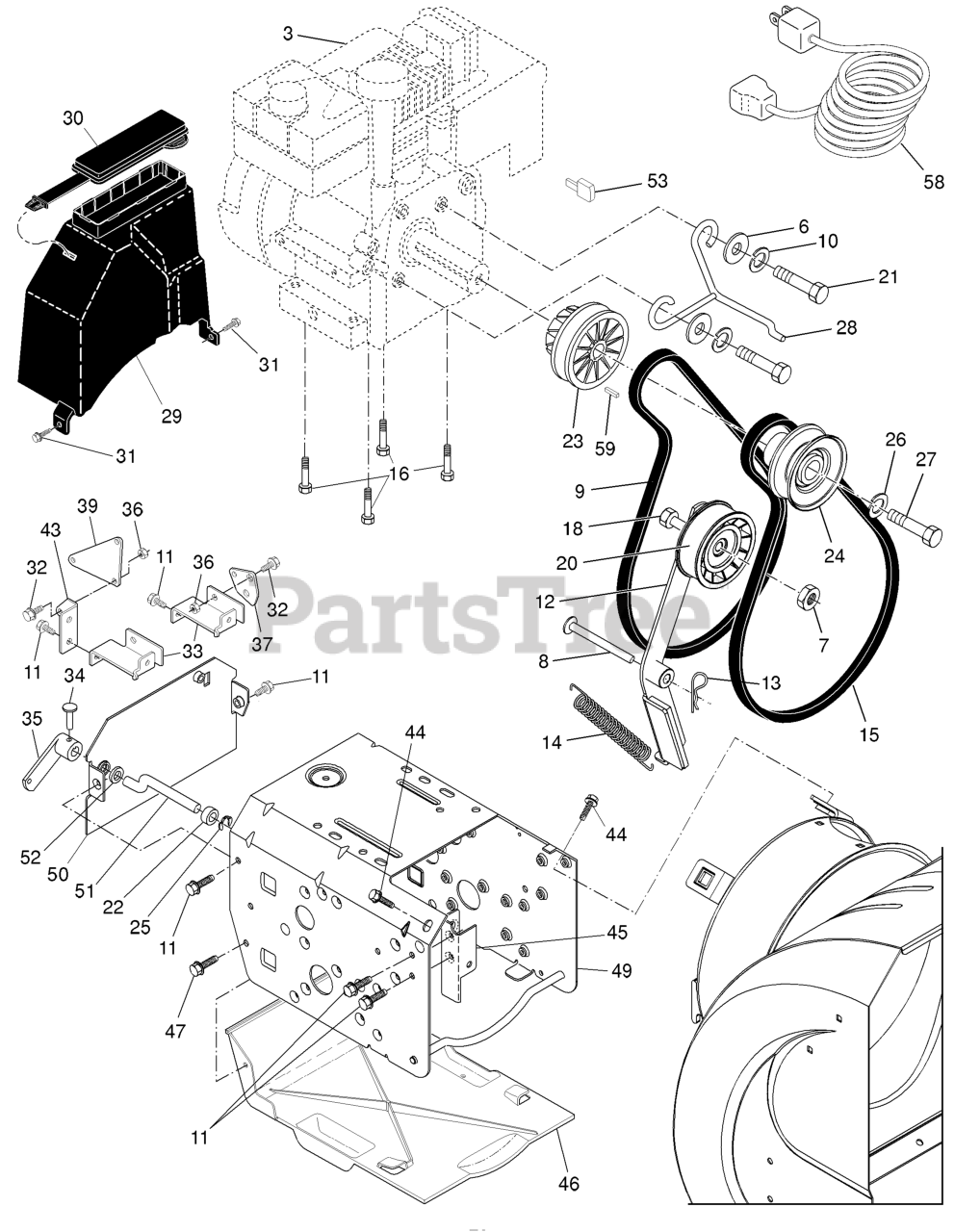

Chassis / Engine / Pulleys Parts Diagram

  • Title

3

Engine, Tecumseh, Model Number OH358SA

Note: (For engine service and replacement parts, call Tecumseh Products at 1-800-558-5402)

$

$

Not available

6

Husqvarna 532155415

WASHER.20X8.5

$3.49

$

In Stock, only 2 left!

0

7

Husqvarna 532166785

LOCKNUT 5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, Qty 15

0

8

Husqvarna 532175330

PIN, IDLER PIVOT

$5.99

$

In Stock, Qty 10

0

9

Husqvarna 532411931

BELT.VARIATOR.TRACT.GT

$

$

Not available

10

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 817490508

Screw, Hex Head 5/16-18 x 1/2
(Superseded to 539990858)

$

$

Not available

12

Husqvarna 532410420

ARM PAD ASSY
(Superseded to 532422111)

$

$

Not available

13

Husqvarna 532085179

RETAINER CLIP PM

$

$

Not available

14

Husqvarna 532178828

SPRING, BRAKE

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532403842

BELT.V.IMPELLER.13HPHS.SNOW

$45.99

$

In Stock, only 2 left!

0

16

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$5.99

$

In Stock, Qty 12

0

18

Husqvarna 874780524

HEX BOLT
(Superseded to 539976935)

$1.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532180523

PULLEY.W/SPACER.2.75
(Superseded to 594095301)

Note: (2-3/4)

$13.99

$

Usually ships in 3-10 days

0

21

Husqvarna 874610516

SCREW

$4.99

$

In Stock, only 4 left!

0

22

Husqvarna 532179062

ROLLER.ACTUATOR

$

$

Not available

23

Husqvarna 532411212

PULLEY.VARIATOR.ENGINE.

$

$

Not available

24

Husqvarna 532411192

PULLEY.IMPELLER.DRIVE.HS.GT

$

$

Not available

25

Husqvarna 532192147

RING.CRESENT

$

$

Not available

26

Husqvarna 532850263

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 532191760

BOLT.HD.HEAD.3/8-24X2.50 (2 2)

$6.99

$

In Stock, only 1 left!

0

28

Husqvarna 532411594

GUIDE.BELT.IMP.GT.HS

$

$

Not available

29

Husqvarna 532192213

COVER.ASM.BELT/STORAGE
(Superseded to 532443030)

Note: (Includes Toolbox Cover)

$

$

Not available

30

Husqvarna 532178830

COVER.STORAGE.SNOW

$

$

Not available

29

Husqvarna 532409161

COVER.BELT.HS

$

$

Not available

31

Husqvarna 817490408

SCREW
(Superseded to 596437001)

$3.49

$

In Stock, only 1 left!

0

32

Husqvarna 532402881

BOLT.SHOULDER.3/X.25

$3.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532411211

BRACKET.CABLE.REAR.GT

$

$

Not available

34

Husqvarna 532198580

CLEVIS PIN

$3.49

$

In Stock, only 1 left!

0

35

Husqvarna 532405484

ARM.CONTROL.AUGER

$

$

Not available

36

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$3.99

$

In Stock, only 4 left!

0

37

Husqvarna 532415435

PLATE.CLUTCH.BZP

$

$

Not available

39

Husqvarna 532411210

PLATE.SPEED.PIVOT.GT.

$

$

Not available

43

Husqvarna 532414462

BRACKET.SPEED.PIVOT.PLATE.GT

$

$

Not available

44

Husqvarna 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 20+

0

45

Husqvarna 532184074

BRACKET, IDLER PIVOT
(Superseded to 532422762)

$102.99

$

In Stock, only 1 left!

0

46

Husqvarna 532410877

PAN.BOTTOM.PLASTIC

$26.99

$

In Stock, only 2 left!

0

47

Husqvarna 532184471

SCREW, HEX HEAD, TAPPING
(Superseded to 594975601)

$2.49

$

In Stock, only 2 left!

0

49

Husqvarna 532417895

FRAME.WELDMENT.GT.TEC.13.PNT
(Superseded to 532411874)

$

$

Not available

50

Husqvarna 532417690

PLATE.END.GT.PNT

$

$

Not available

51

Husqvarna 532191997

CONTROL.SHAFT.WELDMENT

$

$

Not available

52

Husqvarna 532057079

THRUST WASHER

$2.49

$

In Stock, Qty 13

0

53

Husqvarna 532189282

KEY, SQUARE 1/4 X .875

$5.99

$

In Stock, only 3 left!

0

58

Husqvarna 532198563

CORD.ELECTRIC.10FT.120V.SNOW

$26.99

$

In Stock, only 4 left!

0

59

Husqvarna 532198651

KEY.NLA -ORDER FROM ENGINE MFR

$

$

Not available
