1330 SBE OV (961930023-00) - Husqvarna 30" Snow Blower (2008-01) Drive Parts Diagram

30" Snow Blower

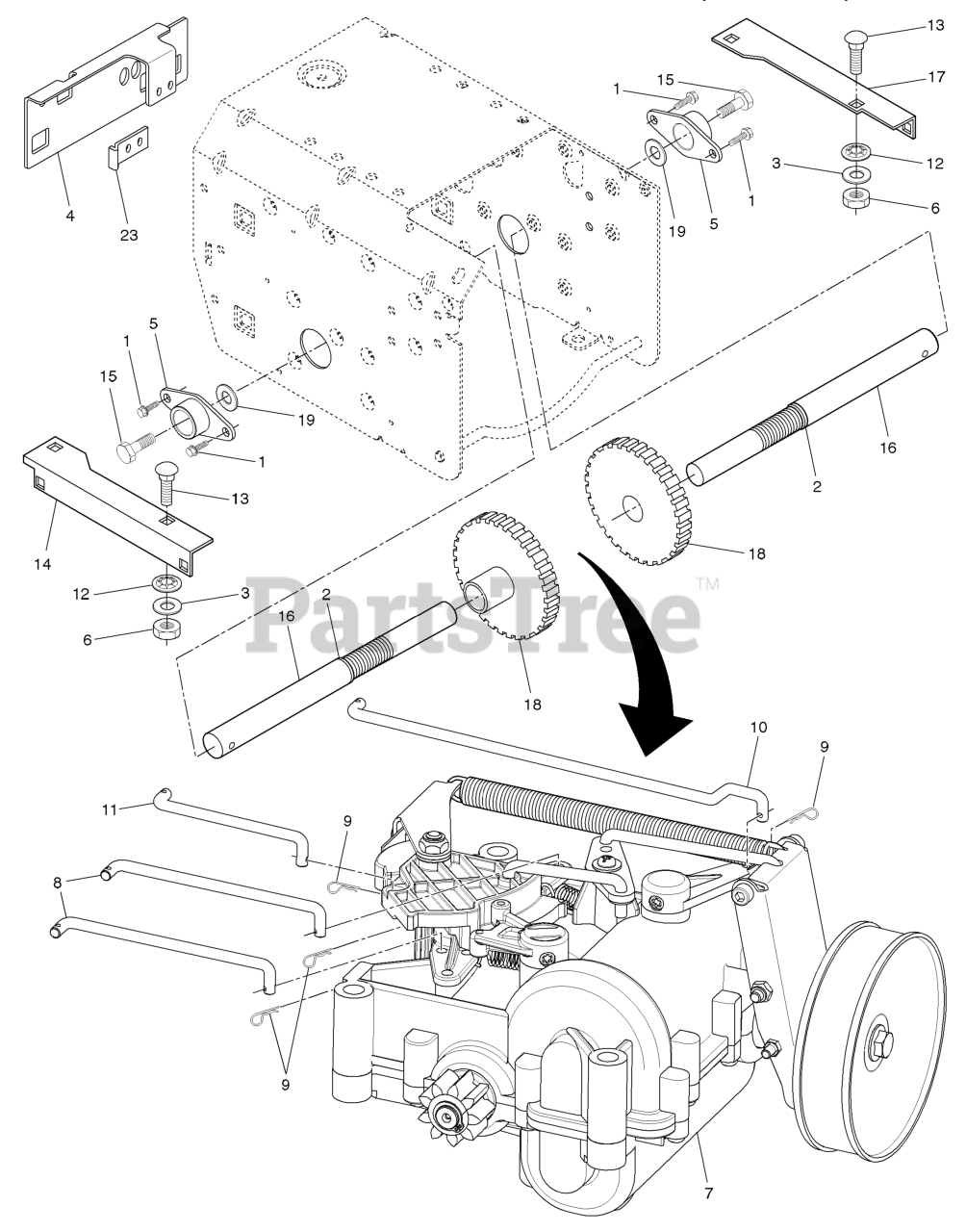

Drive Parts Diagram

  • Title

1

Husqvarna 817490508

Screw, Hex Head 5/16-18 x 3/4
(Superseded to 539990858)

$

$

Not available

2

Husqvarna 812000004

Ring, Retaining

$

$

Not available

3

Husqvarna 819191316

Washer, Flat

$

$

Currently unavailable

4

Husqvarna 532413271

PLATE.ROD.ALIGNMENT.SNOW

$

$

Not available

5

Husqvarna 532402195

BEARING.AXLE.3/4

$

$

Not available

6

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

7

Husqvarna 532411195

TRANSMISSION.GT.SNOW.FS

$

$

Not available

8

Husqvarna 532411203

ROD.CONTROL.STEERING.GT

$

$

Not available

9

Husqvarna 532700279

RETAINER CLIP

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532411205

ROD.CONTROL.CLUTCH.GT

$

$

Not available

11

Husqvarna 532411202

ROD.SPEED.CONTROL.GT

$

$

Not available

12

Husqvarna 532401220

PUSH.NUT.ROUND.3/8.DIAM

$

$

Not available

13

Husqvarna 872110626

BOLT.SS.CARR.3/8-16X3.25.GR5

$

$

Not available

14

Husqvarna 532411196

BRACKET.TRANS.GT.RH

$

$

Not available

15

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

16

Husqvarna 532412286

SHAFT.AXLE.SNOW.GT.3/4

$

$

Not available

18

Husqvarna 532411213

GEAR.AXLE.NYLON.GT

$

$

Not available

17

Husqvarna 532411197

BRACKET.TRANS.GT.LH

$

$

Not available

19

Husqvarna 532412810

WASHER.THRUST.3/4X.031

$

$

Not available

23

Husqvarna 532419212

SPRING.LEAF.GT.TRANS

$

$

Not available
