1330 SBE XP (961930019-03) - Husqvarna 30" Snow Blower (2007-11) Chassis / Engine / Pulleys Parts Diagram

30" Snow Blower

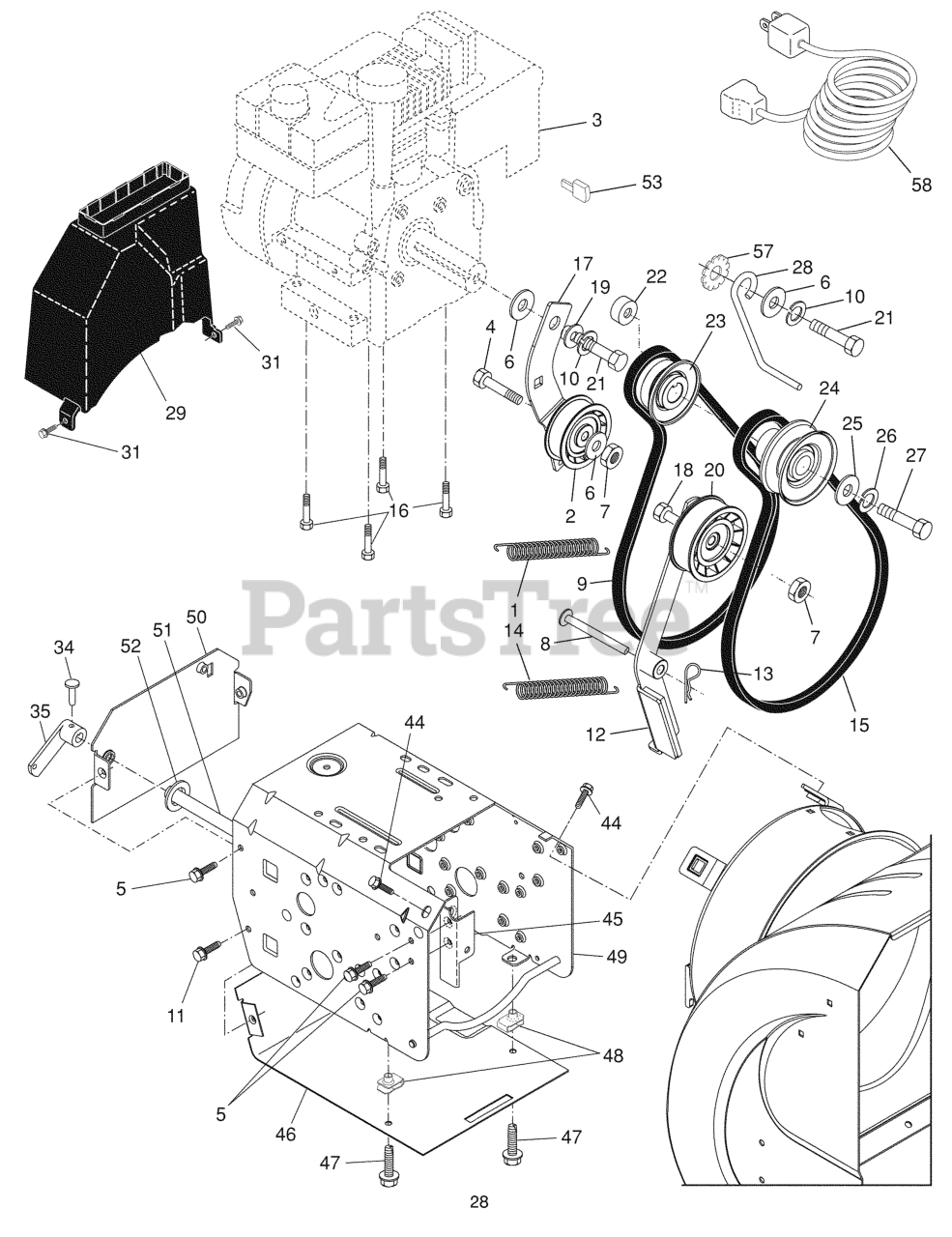

Chassis / Engine / Pulleys Parts Diagram

  • Title

1

Husqvarna 532192873

SPRING, TRACTION IDLER

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532180522

PULLEY.W/SPACER.2.25

$28.99

$

In Stock, Qty 5

0

3

Engine, Tecumseh, Model Number OH358SA (For engine service and replacement parts, call, Tecumseh Products at 1-800-558-5402)

$

$

Not available

4

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 595305701)

$4.99

$

In Stock, only 2 left!

0

5

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

6

Husqvarna 532059289

STEEL WASHER

$4.99

$

In Stock, Qty 5

0

7

Husqvarna 532166785

LOCKNUT 5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, Qty 15

0

8

Husqvarna 532175330

PIN, IDLER PIVOT

$5.99

$

In Stock, Qty 10

0

9

Husqvarna 532405029

V-BELT.TRACTION.DRIVE.SNOW.13H

$

$

Not available

10

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 817490508

Screw, Hex Head 5/16-18 x 1/2
(Superseded to 539990858)

$

$

Not available

12

Husqvarna 532410420

ARM PAD ASSY
(Superseded to 532422111)

$

$

Not available

13

Husqvarna 532085179

RETAINER CLIP PM

$

$

Not available

14

Husqvarna 532178828

SPRING, BRAKE

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532403842

BELT.V.IMPELLER.13HPHS.SNOW

$45.99

$

In Stock, only 2 left!

0

16

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$5.99

$

In Stock, Qty 12

0

17

Husqvarna 532187786

ARM, IDLER
(Superseded to 585238401)

$34.99

$

In Stock, only 2 left!

0

18

Husqvarna 874780524

HEX BOLT
(Superseded to 539976935)

$1.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532175331

RP BUSHING, IDLER PIVOT
(Superseded to 587343701)

$6.99

$

In Stock, only 3 left!

0

20

Husqvarna 532180523

PULLEY.W/SPACER.2.75
(Superseded to 594095301)

$13.99

$

Usually ships in 3-10 days

0

21

Husqvarna 874610516

SCREW

$4.99

$

In Stock, only 4 left!

0

22

Husqvarna 532409475

SPACER.ENGINE.PULLEY

$

$

Not available

23

Husqvarna 532180478

PULLEY,ENGINE TRACTION DRIVE
(Superseded to 595926601)

$37.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532178813

PULLEY.ENG.IMPELLER.SNOW
(Superseded to 532426492)

$

$

Not available

25

Husqvarna 532400026

WASHER, FLAT 3/8

$9.49

$

In Stock, only 2 left!

0

26

Husqvarna 532850263

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 532193607

GUIDE, BELT

$13.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532409161

COVER.BELT.HS

$

$

Not available

31

Husqvarna 817490408

SCREW
(Superseded to 596437001)

$3.49

$

In Stock, only 1 left!

0

34

Husqvarna 532198580

CLEVIS PIN

$3.49

$

In Stock, only 1 left!

0

35

Husqvarna 532405484

ARM.CONTROL.AUGER

$

$

Not available

44

Husqvarna 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 20+

0

45

Husqvarna 532407849

BRACKET, PIVOT, IDLER

$

$

Not available

46

Husqvarna 532403732

PAN.BOTTOM.PLASTIC
(Superseded to 532410877)

$26.99

$

In Stock, only 2 left!

0

47

Husqvarna 532184471

SCREW, HEX HEAD, TAPPING
(Superseded to 594975601)

$2.49

$

In Stock, only 2 left!

0

48

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$3.49

$

In Stock, only 4 left!

0

49

Husqvarna 532415307

FRAME.WELD.SNOWBLOWER.ORANGE

$

$

Not available

50

Husqvarna 532407868

PLATE.REAR.HYDRO.ORANGE

$

$

Not available

51

Husqvarna 532406109

SHAFT, AUGER CONTROL
(Superseded to 532429668)

$37.99

$

In Stock, only 3 left!

0

52

Husqvarna 532057079

THRUST WASHER

$2.49

$

In Stock, Qty 13

0

53

Husqvarna 532035062

KEY, SAFETY IGNITION
(Superseded to 531300340)

$

$

Not available

57

Husqvarna 811050500

WASHER EXT TOOTH LOCK 5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

58

Husqvarna 532198563

CORD.ELECTRIC.10FT.120V.SNOW

$26.99

$

In Stock, only 4 left!

0
