1330 SBE XP (961930019-03) - Husqvarna 30" Snow Blower (2007-11) Drive Parts Diagram

30" Snow Blower

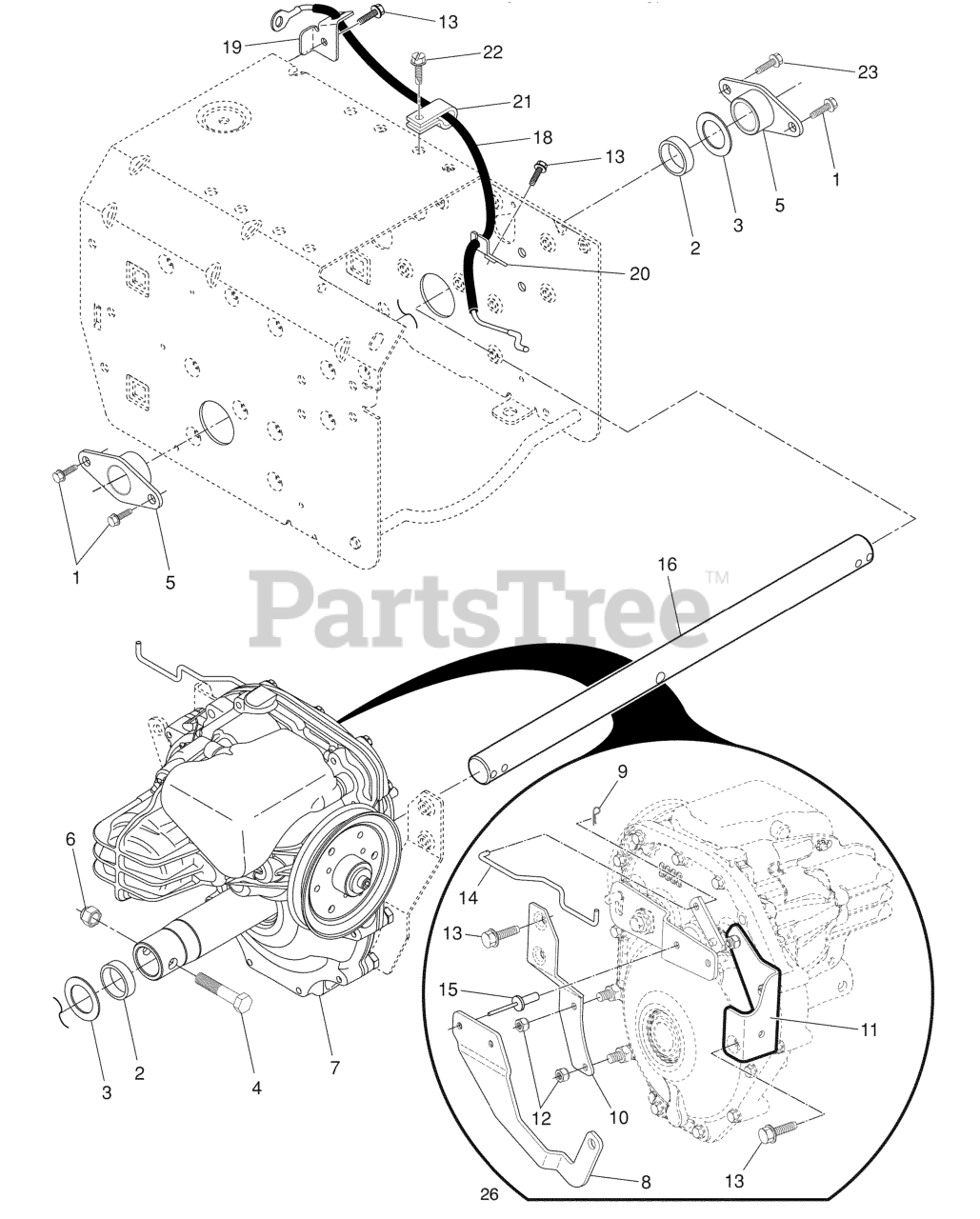

Drive Parts Diagram

  • Title

1

Husqvarna 817490508

Screw, Hex Head 5/16-18 x 3/4
(Superseded to 539990858)

$

$

Not available

2

Husqvarna 532187794

SPACER.AXLE.RH

$9.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532174697

WASHER TRUST 1"
(Superseded to 532007396)

$

$

Not available

4

Husqvarna 874780632

CAP.SCREW.HEX.HD.3/8-16
(Superseded to 596564403)

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532179830

BEARING, AXLE

$22.99

$

In Stock, only 2 left!

0

6

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$

$

Not available

7

Husqvarna 532187776

TRANSMISSION.HYDRO.SNOW

$

$

Not available

8

Husqvarna 532187787

ARM.CONTROL.HYDRO.SNOW

$

$

Not available

9

Husqvarna 532700279

RETAINER CLIP

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532188101

TORQUE STRAP
(Superseded to 532414771)

$13.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532407858

BRACKET, ANTI-ROTATE
(Superseded to 532436754)

$20.99

$

Usually ships in 3-10 days

0

12

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

13

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

14

Husqvarna 532193256

ROD, BYPASS VALVE

$

$

Not available

15

Husqvarna 532191995

RIVET.POP.1/4X.475

$

$

Not available

16

Husqvarna 532404308

SHAFT.AXLE.POWER.STEERING.HYD

$79.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532198466

CABLE.DRIVE.CONTROL.SNOW

$

$

Not available

19

Husqvarna 532192000

BRACKET.CABLE.REAR.SNOW

$

$

Not available

20

Husqvarna 532191993

BRACKET, CABLE, FRONT

$

$

Not available

21

Husqvarna 532087930

GUIDE CLIP PM

$

$

Not available

22

Husqvarna 817391208

SCREW, SLOTTED HEX HEAD 1/8 X

$

$

Not available

23

Husqvarna 532146315

SCREW

$11.99

$

Usually ships in 3-10 days

0
