1330 SE (1695812) - John Deere 30" Snow Thrower (2010) Chute & Rotation Group Parts Diagram

30" Snow Thrower

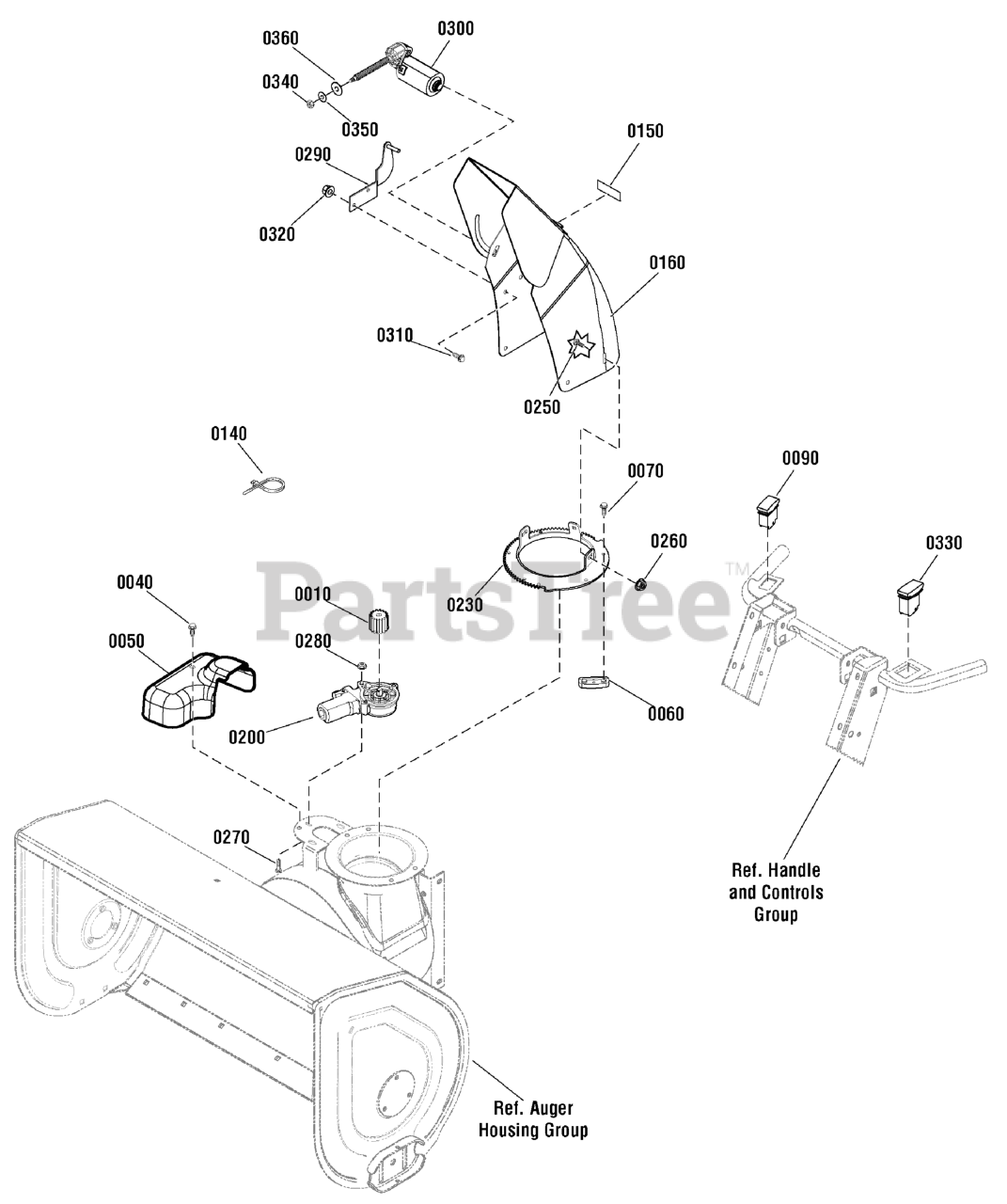

Chute & Rotation Group Parts Diagram

  • Title

0010

Murray 1728967SM

PINION, 1.417 OD .296 Slot 1-1/4 Long 16T Powdered Metal

$18.99

$

In Stock, Qty 5

0

0040

Murray 1925592SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$4.49

$

In Stock, Qty 20+

0

0050

Murray 1752877YP

COVER, Electric Chute Rotation

$17.99

$

In Stock, only 2 left!

0

0060

Murray 7011938SM

RETAINER, Spout

$4.49

$

Usually ships in 2-12 days

0

0070

Murray 1960001SM

CAPSCREW, Hex Washer Head Taptite, #10C x 5/8 GR5 BZ
(Superseded to 703062)

$4.99

$

In Stock, Qty 20+

0

0090

Murray 1737378YP

SWITCH, Chute Rotation
(Superseded to 1687904)

$87.99

$

In Stock, only 3 left!

0

0140

Murray 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

0150

Murray 1734738SM

DECAL, Hinge Upper

$11.99

$

Usually ships in 2-12 days

0

0160

Murray 1738231FYP

CHUTE
(Superseded to 1752841FYP)

$190.99

$

Usually ships in 2-12 days

0

0200

Murray 1728965SM

MOTOR, Spout Rotator

$181.99

$

In Stock, only 2 left!

0

0230

Murray 1737962BMYP

GEAR, Chute

$43.99

$

Usually ships in 2-12 days

0

0250

Murray 1931317SM

CARRIAGE BOLT, 1/4-20 x 3/4, G5
(Superseded to 703101)

$4.49

$

In Stock, only 3 left!

0

0260

Murray 2860694SM

NUT, Hex Flange, 1/4-20
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

0270

Murray 2860604SM

SCREW, Hex Washer Head, #10 x 1-1/4

$4.99

$

In Stock, Qty 20+

0

0280

Murray 1960745SM

NUT, Hex Flange Whiz Lock, #10-24
(Superseded to 703917)

$3.99

$

In Stock, Qty 20+

0

0290

Murray 1738267BMYP

BRACKET, Weld Stud

$32.99

$

Usually ships in 2-12 days

0

0300

Murray 1737941YP

MOTOR, Chute Deflector

$144.99

$

In Stock, only 2 left!

0

0310

Murray 1960715SM

SCREW, Truss Head, Torx Drive, 1/4-20 x 3/4
(Superseded to 770135)

$4.49

$

In Stock, Qty 15

0

0320

Murray 1960694SM

NUT, Hex Flange, Esna, 1/4-20
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

0330

Murray 1737379YP

SWITCH / COVER
(Superseded to 1687905)

$87.99

$

In Stock, only 2 left!

0

0340

Murray 1738244YP

WASHER, Rubber

$4.99

$

In Stock, Qty 9

0

0350

Murray 1738245YP

NUT, Left Handed
(Superseded to 703143)

$3.99

$

In Stock, Qty 13

0

0360

Murray 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0
