1330 SE (1695812) - John Deere 30" Snow Thrower (2010) Handles & Controls Group Parts Diagram

30" Snow Thrower

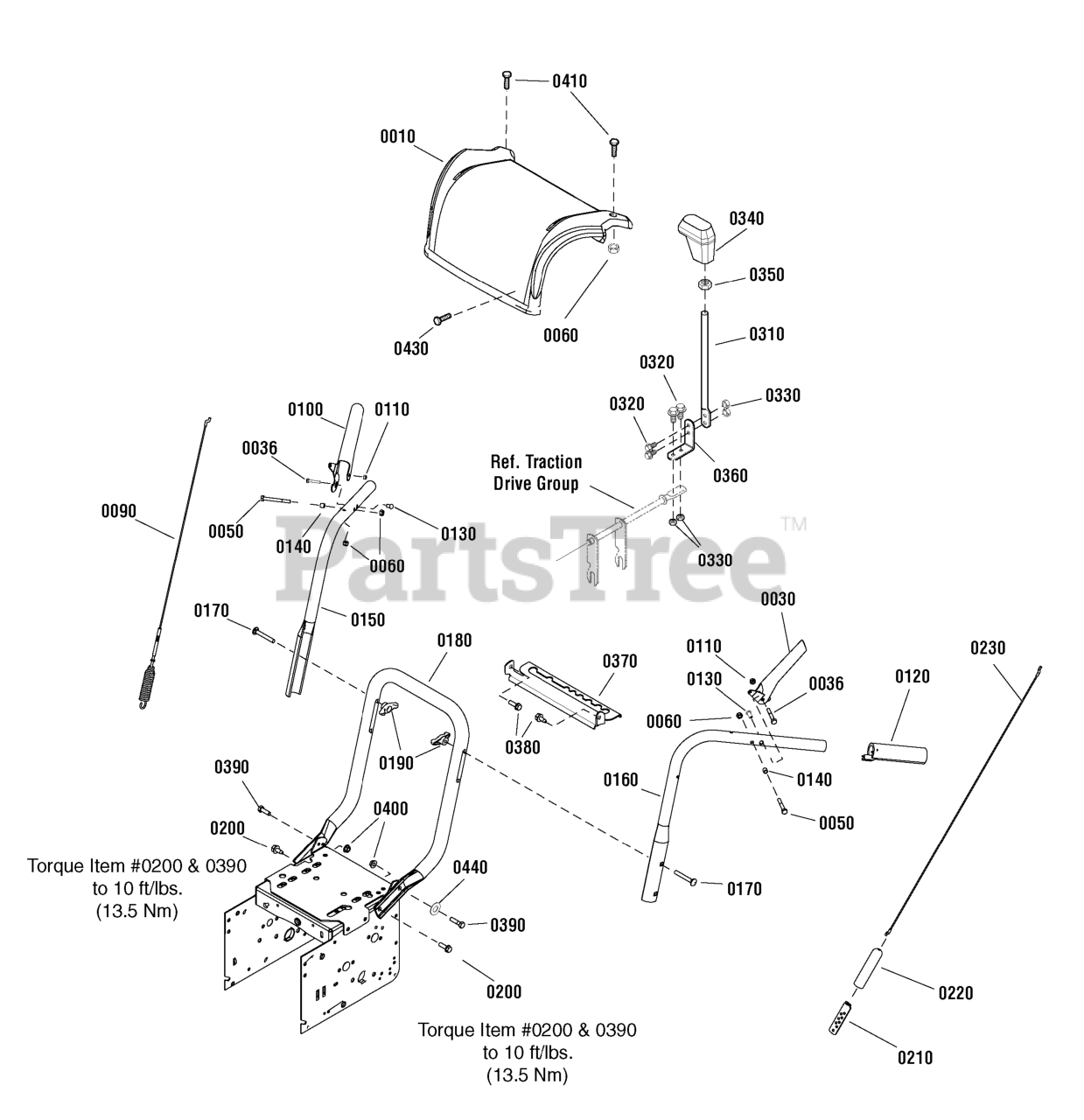

Handles & Controls Group Parts Diagram

  • Title

0010

Murray 1738089FYP

PANEL, Dash

$55.99

$

Usually ships in 2-12 days

0

0030

Murray 1739782BPYP

LEVER, Clutch, L.H.
(Superseded to 1739782AYP)

$

$

Not available

0036

Murray 1922837SM

CAPSCREW, Hex Head, 1/4-20 X 1-1/2, G5
(Superseded to 703234)

$4.49

$

In Stock, only 3 left!

0

0050

Murray 1921962SM

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G5
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0060

Murray 1920397SM

NUT, Hex, Locking, ESNA, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0090

Murray 1732471SM

CABLE & SPRING ASSEMBLY,Auger Drive R.H.

$

$

Not available

0100

Murray 1739783BPYP

LEVER, Clutch, R.H.

$23.99

$

Usually ships in 2-12 days

0

0110

Murray 1923358SM

NUT-Hex Centerlock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

0120

Murray 1726317SM

GRIP, 1"Dia. X 5-5/8 Lg

$8.49

$

In Stock, only 3 left!

0

0130

Murray 1736542YP

SPACER, Stepped

$4.49

$

Usually ships in 2-12 days

0

0140

Murray 1678392SM

SPACER, 17/64 ID x 3/8 OD x 21/64 Lg
(Superseded to 703137)

$6.99

$

In Stock, only 2 left!

0

0150

Murray 1734587BPYP

HANDLE,Upper, R.H.

$41.99

$

Usually ships in 2-12 days

0

0160

Murray 1734586BPYP

HANDLE, Upper, L.H.

$42.99

$

Usually ships in 2-12 days

0

0170

Murray 1750299YP

BOLT, Shoulder, Locking, 5/16-18 x 2-1/4
(Superseded to 703168)

$3.99

$

In Stock, only 4 left!

0

0180

Murray 1737759BPYP

HANDLE, Lower

$103.99

$

Usually ships in 2-12 days

0

0190

Murray 7035744YP

WINGKNOB, 5/16-18
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

0200

Murray 1664847SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0210

Murray 313441MA

BRACKET, Cable Adjusting

$

$

Not available

0220

Murray 308146MA

BOOT, Spring End Cover

$6.49

$

In Stock, only 1 left!

0

0230

Murray 1502113MA

CABLE

$22.99

$

In Stock, only 1 left!

0

0310

Murray 581631E701MA

ROD, Shift

$12.99

$

Usually ships in 2-12 days

0

0320

Murray 302628MA

BOLT, Hex, 1/4-20 x 3/4, GR5

$4.49

$

In Stock, Qty 6

0

0330

Murray 73826MA

NUT, Hex, Centerlock, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

0340

Murray 304438MA

KNOB, Shift, 1/2-13,

$19.99

$

In Stock, only 1 left!

0

0350

Murray 318486MA

NUT, Hex Jam, 1/2-13

$3.99

$

In Stock, only 1 left!

0

0360

Murray 760564MA

LEVER, Spring Shift

$9.99

$

Usually ships in 2-12 days

0

0370

Murray 1737760FYP

BRACKET, Gear Select

$14.99

$

Usually ships in 2-12 days

0

0380

Murray 310169MA

SCREW, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0

0390

Murray 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 3 left!

0

0400

Murray 1935048SM

NUT-Hex Flange, 5/16-18 Two Way Locking
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0410

Murray 1931320SM

BOLT, Carriage, 1/4-20 X 1-1/4, G5
(Superseded to 703178)

$3.99

$

In Stock, only 2 left!

0

0430

Murray 1960556SM

SCREW, Pan Head Torx 1/4-20 X 3/4, Taptite

$4.49

$

Usually ships in 2-12 days

0

0440

Murray 71071MA

WASHER, Flat, 11/32
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+
