1330 SE (1696044) - John Deere 30" Snow Thrower (2011) Engine & Frame Group Parts Diagram

30" Snow Thrower

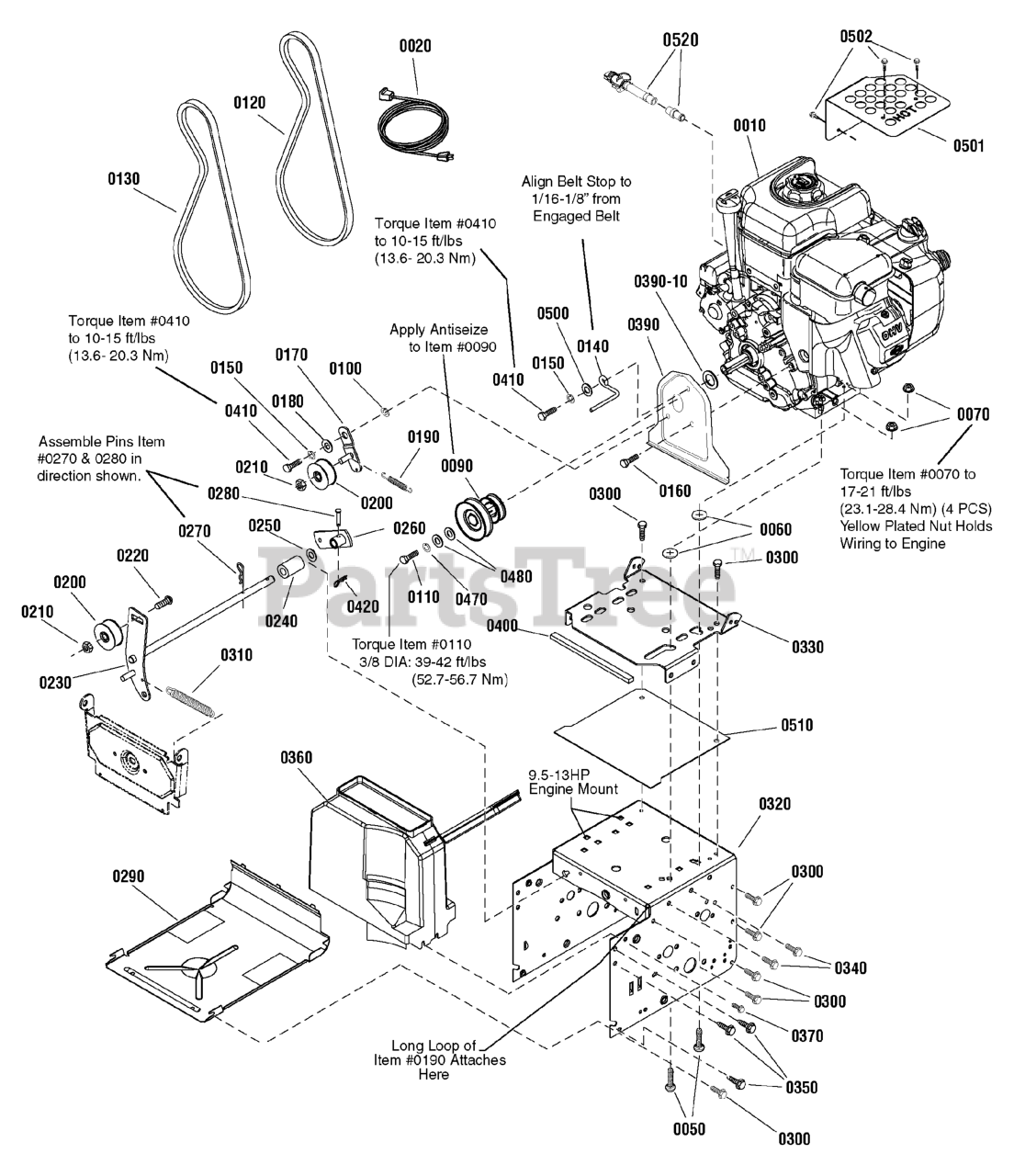

Engine & Frame Group Parts Diagram

  • Title

0010

Murray 21M314-0126-F1

* ENGINE, 16.5TP, 9A DOM

Note: (Engine Model: 20M314-0126-F1)

$

$

Currently unavailable

0020

Murray 6219MA

CORD, Electric, 10FT. 110V

$40.99

$

In Stock, only 3 left!

0

0050

Murray 002X97MA

BOLT, Carriage, 5/16-18 x 1-1/2
(Superseded to 704210)

$4.99

$

In Stock, only 2 left!

0

0060

Murray 028X76MA

NUT, Push, 1/4, 15/16 OD

$4.49

$

In Stock, only 1 left!

0

0070

Murray 1739305YP

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 13

0

0090

Murray 1501109MA

PULLEY, Engine

$41.99

$

In Stock, Qty 6

0

0100

Murray 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, Qty 13

0

0110

Murray 1960428SM

CAPSCREW, Hex Head, 3/8-24 x 1-1/4, G8
(Superseded to 703165)

$3.99

$

Usually ships in 2-12 days

0

0120

Murray 1733324SM

V-BELT, 3L, 33.13

$19.99

$

In Stock, Qty 20+

0

0130

Murray 1736421YP

V-BELT, 4L, 38.35

$30.99

$

In Stock, Qty 5

0

0140

Murray 1739070YP

STOP, Belt, 3

$7.99

$

In Stock, Qty 6

0

0150

Murray 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0160

Murray 1921515SM

CAPSCREW, Hex Head, 5/16-24 x 3/4, G5

$3.99

$

Usually ships in 2-12 days

0

0170

Murray 1501112YZMA

BRACKET, Idler
(Superseded to 1687797YP)

$8.49

$

In Stock, only 2 left!

0

0180

Murray 1501065MA

BUSHING, Idler Bracket

$5.49

$

In Stock, Qty 6

0

0190

Murray 53704MA

SPRING, External Idler

$8.49

$

In Stock, only 4 left!

0

0200

Murray 1502120MA

IDLER, Plastic Ball Bearing

$21.99

$

In Stock, only 1 left!

0

0210

Murray 1960251SM

NUT, Hex, Centerlock, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, only 2 left!

0

0220

Murray 585781MA

BOLT, Carriage, 3/8-16 x 1-1/4, G5
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

0230

Murray 1501628YZMA

IDLER ASSEMBLY, Auger

$55.99

$

Usually ships in 2-12 days

0

0240

Murray 1501200MA

SPACER, Plastic, 1/2 ID x 1 OD x 1-3/4

$5.99

$

Usually ships in 2-12 days

0

0250

Murray 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0260

Murray 1733451SM

ARM, Control

$20.99

$

In Stock, Qty 5

0

0270

Murray 0031X6MA

PIN, Hair 3/8 x 1-5/8
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0280

Murray 1736381YP

PIN, Clevis
(Superseded to 703313)

$4.99

$

In Stock, Qty 8

0

0290

Murray 1740906BMYP

PANEL, Bottom
(Superseded to 1753969BMYP)

$75.99

$

Usually ships in 2-12 days

0

0300

Murray 1927429SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0

0310

Murray 165X159MA

SPRING, External, Auger 7/16 ID x 5-1/8 x 3/4 W

$6.99

$

In Stock, Qty 10

0

0320

Murray 1740641FMA

FRAME BOX

$91.99

$

Usually ships in 2-12 days

0

0330

Murray 1733583FSM

PLATE, Engine Mount

$55.99

$

Usually ships in 2-12 days

0

0340

Murray 1924856SM

CAPSCREW, Hex-Washer Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, Qty 15

0

0350

Murray 1664847SM

CAPSCREW, Hex-Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0360

Murray 1733923SM

BELT COVER

$75.99

$

Usually ships in 2-12 days

0

0370

Murray 26X306MA

CAPSCREW, Hex, Self-Tapping, 1/4 x 3/4

$4.99

$

Usually ships in 2-12 days

0

0390

Murray 1750241YP

SHIELD, Water

Note: (Incl. Ref. 0390-10)

$13.99

$

Usually ships in 2-12 days

0

0390-10

Murray 1733898SM

SEAL, Water Shield, Foam

Note: (Included with Ref. No. 0390)

$6.49

$

Usually ships in 2-12 days

0

0400

Murray 1750172YP

SEAL, Foam

$7.49

$

Usually ships in 2-12 days

0

0410

Murray 910828MA

BOLT, Hex, 5/16-24 x 1
(Superseded to 703301)

$3.99

$

In Stock, Qty 6

0

0420

Murray 7023590SM

PIN, Cotter, Self Locking, 1/4"

$3.99

$

In Stock, Qty 20+

0

0470

Murray 1916965SM

LOCKWSHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

0480

Murray 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

0500

Murray 7091528SM

WASHER, Flat, 3/8 x 7/8

$3.99

$

In Stock, only 2 left!

0

0501

Murray 1734698SM

GUARD, Muffler

$15.99

$

Usually ships in 2-12 days

0

0502

Murray 1736103SM

CAPSCREW, Hex Washer Head, Taptite, 10-24 x 3/8

$4.49

$

Usually ships in 2-12 days

0

0510

Murray 1750134YP

SEAL, Engine Plate

$17.99

$

Usually ships in 2-12 days

0

0520

Murray 798980

OIL DRAIN ASSEMBLY

$

$

Not available
