1332 PE (1695450) - John Deere 32" Snow Thrower (2008) Auger Housing & Chute Group Parts Diagram

32" Snow Thrower

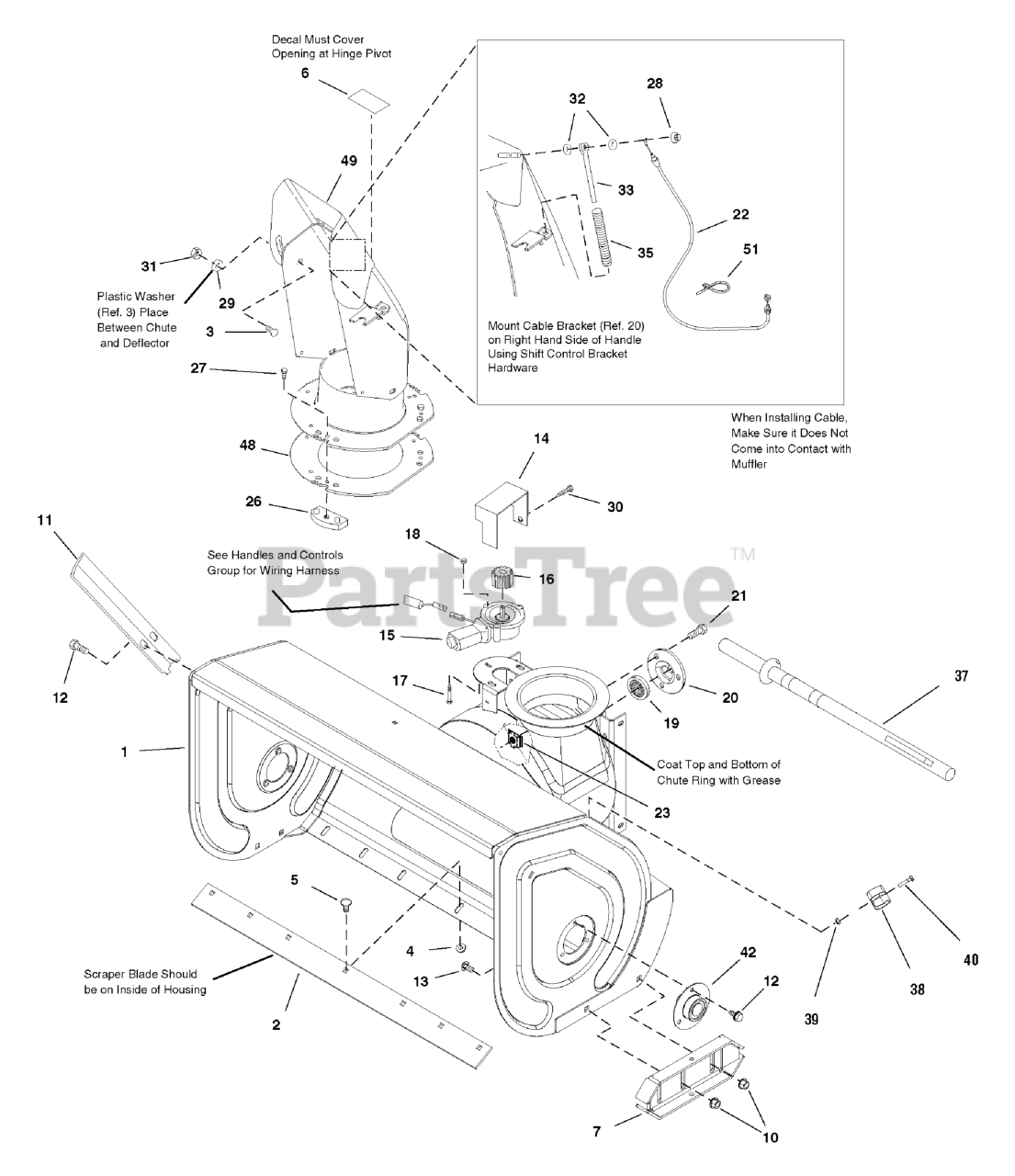

Auger Housing & Chute Group Parts Diagram

  • Title

1

Murray 1735648FYP

HOUSING ASSEMBLY, 32"

$1196.99

$

Usually ships in 2-12 days

0

2

Murray 1709948ASM

BLADE, Scraper for 32"
(Superseded to 1709948BMYP)

$58.99

$

In Stock, Qty 5

0

3

Murray 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

4

Murray 1935048SM

NUT, Hex Flange, 5/16-18 Two-Way Lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

5

Murray 1960699SM

CARRIAGE BOLT, 5/16-18 x 5/8, G5
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

6

Murray 1734738SM

DECAL, Green Strip Hinge Snow Chute

$10.99

$

Usually ships in 2-12 days

0

7

Murray 1725747ASM

SKID SHOE
(Superseded to 1725747BMYP)

$92.99

$

In Stock, Qty 5

0

10

Murray 1960687SM

NUT, Hex Flange, 3/8-16 ESNA
(Superseded to 703158)

$3.49

$

In Stock, Qty 20+

0

11

Murray 1733102ASM

CUTTER, Drift w/Tabs

$31.99

$

In Stock, only 4 left!

0

12

Murray 1664847SM

SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

13

Murray 1960702SM

BOLT, Carriage, 3/8-16 x 1
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

14

Murray 1733934ASM

COVER, Gear

$

$

Not available

15

Murray 1728965SM

MOTOR, Spout Rotator, 38/42"

$176.99

$

In Stock, Qty 6

0

16

Murray 1728967SM

PINION, 1.417 OD .296 Slot 1-1/4 Long 16T Powdered Metal

$17.99

$

In Stock, Qty 11

0

17

Murray 2860604SM

SCREW, Hex Washer Head Slot, #10C x 1-1/4, G2

$4.49

$

In Stock, Qty 5

0

18

Murray 1960745SM

NUT, Hex Whiz Lock Flange, #10-24
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

19

Murray 2108202SM

BEARING, 3/4 ID x 1.78 OD x .61 Long Greased

$11.99

$

In Stock, Qty 20+

0

20

Murray 1665982SM

BEARING RETAINER

$6.99

$

In Stock, only 4 left!

0

21

Murray 1960738SM

SCREW, Hex Whiz Lock Flange, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 12

0

22

Murray 1732971SM

CABLE & KNOB ASSEMBLY
(Superseded to 1750623YP)

$49.99

$

In Stock, Qty 5

0

23

Murray 1930659SM

RETAINER, Nut, 5/16-18 .057/.092

$5.99

$

Usually ships in 2-12 days

0

26

Murray 1666613SM

HOLD DOWN, Chute, Nylon

$3.49

$

Usually ships in 2-12 days

0

27

Murray 1960001SM

SCREW, Hex Washer Head Taptite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, Qty 20+

0

28

Murray 1932718SM

NUT, Push
(Superseded to 704028)

$5.49

$

In Stock, Qty 9

0

29

Murray 2860210SM

WASHER, Nylon, .388 x 1.12 x .03

$4.49

$

In Stock, Qty 5

0

30

Murray 1927428SM

SCREW, Hex Washer Head Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

Usually ships in 2-12 days

0

31

Murray 1960686SM

NUT, Hex Flange, 5/16-18 ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 17

0

32

Murray 1666697SM

SPACER

$6.49

$

In Stock, only 2 left!

0

33

Murray 1734708ASM

ROD, Spring

$13.99

$

Usually ships in 2-12 days

0

35

Murray 1734647SM

SPRING, Compression
(Superseded to 703135)

$3.99

$

Usually ships in 2-12 days

0

37

Murray 1733209SM

STICK, Snow Cleanout w/Brush, Plastic
(Superseded to 1736094YP)

$34.99

$

In Stock, only 2 left!

0

38

Murray 1736620YP

CLIP, Retainer

$6.49

$

In Stock, only 1 left!

0

39

Murray 1933896SM

NUT, Hex Lock, 10-24 w/Nylon Insert
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

40

Murray 1960569SM

SCREW, Truss-Head TORX, #10-24 x 3/8
(Superseded to 706144)

$4.49

$

Usually ships in 2-12 days

0

42

Murray 1734645SM

BEARING, Ball
(Superseded to 772167)

$51.99

$

Usually ships in 2-12 days

0

48

Murray 1717477ASM

GEAR, Chute, 10 OD 6.65 ID .105 Thick

$50.99

$

Usually ships in 2-12 days

0

49

Murray 1734400FYP

CHUTE ASSEMBLY, with Pigtail Green

$231.99

$

Usually ships in 2-12 days

0

51

Murray 1701011SM

TIE, Self Locking, .184 Wide 7.31 Long

$5.49

$

In Stock, only 2 left!

0
