1332 PE (1695624) - John Deere 32" Snow Thrower (2009) Auger Drive Group - 32" Parts Diagram

32" Snow Thrower

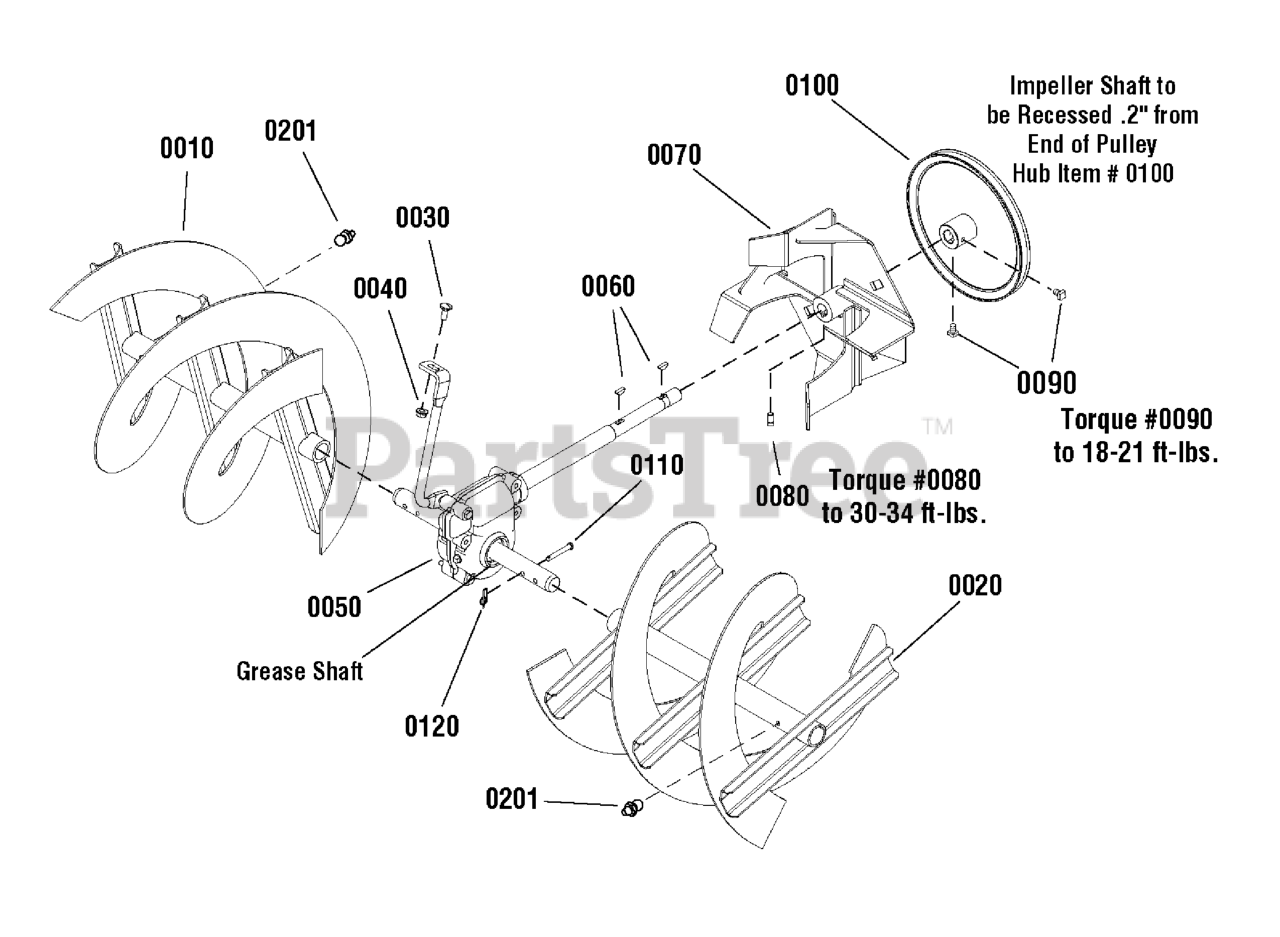

Auger Drive Group - 32" Parts Diagram

  • Title
0010

Murray 1734678BCYP

AUGER, 32", RH

$170.99

$

Usually ships in 2-12 days

0

0020

Murray 1734677BCYP

AUGER, 32", LH

$202.99

$

Usually ships in 2-12 days

0

0030

Murray 1931333SM

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0040

Murray 1931277SM

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0050

Murray 1732303SM

GEAR BOX ASSEMBLY

$512.99

$

Usually ships in 2-12 days

0

0060

Murray 2818312SM

KEY, Woodruff
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

0070

Murray 1612187BCYP

IMPELLER, Large Frame Snow
(Superseded to 1612187BMYP)

$201.99

$

In Stock, only 2 left!

0

0080

Murray 1960474SM

SCREW, Set Square Head, Cup Pt, 3/8-16 x 1/2

$5.99

$

In Stock, Qty 7

0

0090

Murray 1928721SM

SCREW, Set Square Head, Cup Pt, 5/16-18 x 1/2

$4.99

$

In Stock, Qty 11

0

0100

Murray 1732468SM

PULLEY, With Hub, 9 OD, 3/4ID

$146.99

$

Usually ships in 2-12 days

0

0110

Murray 1668344SM

PIN, Shear
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

0120

Murray 7023590SM

COTTER Pin, Self Locking, 1/4

$3.99

$

In Stock, Qty 20+

0

0200

Murray 1738456YP

KIT, Shear Pin
(Superseded to 1686806YP)

Note: (Includes Ref. Nos. 0110 & 0120)

$8.99

$

In Stock, Qty 12

0

0201

Murray 2821133SM

FITTING, Lubrication
(Superseded to 703907)

$4.99

$

In Stock, Qty 11

0
