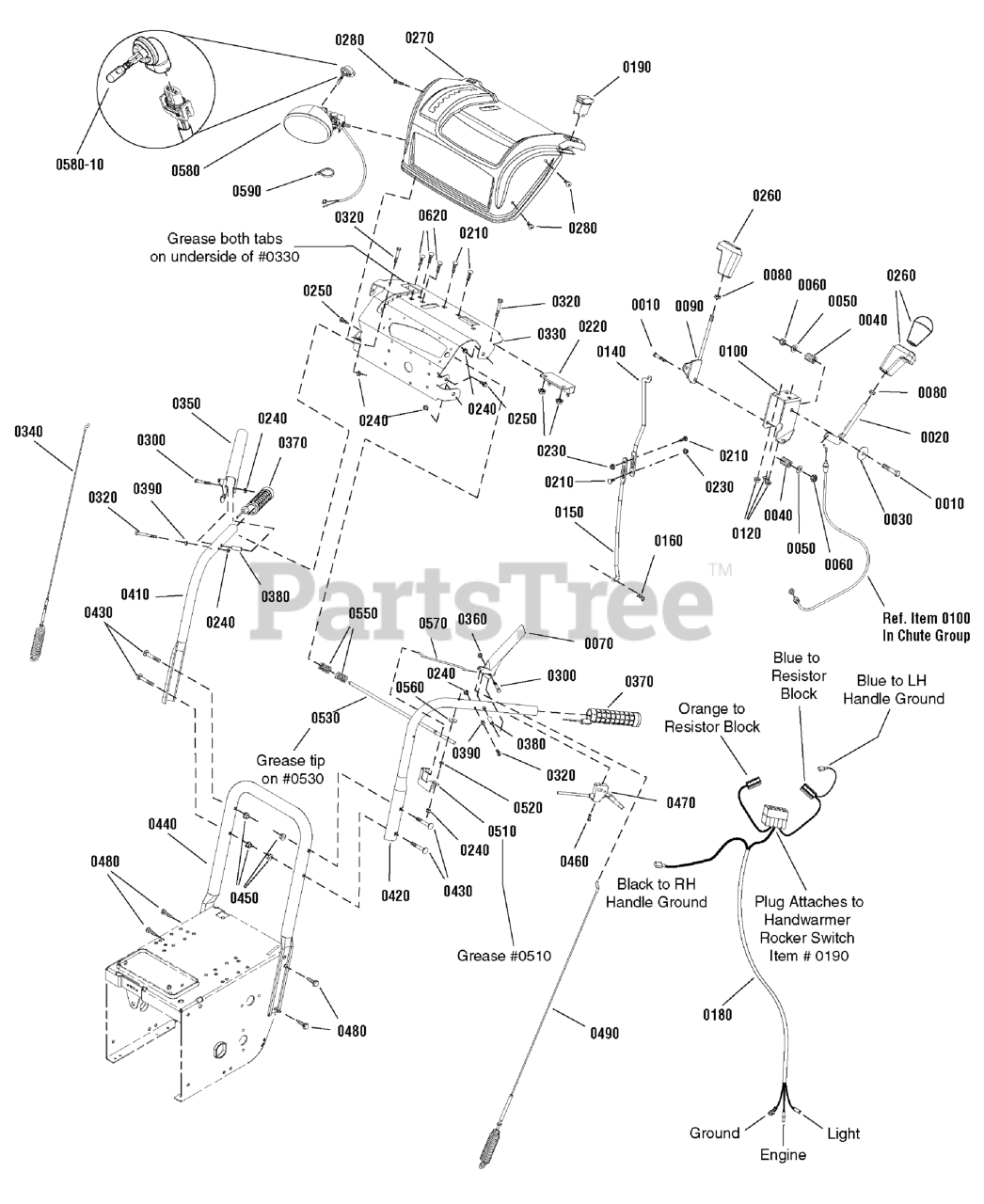

1332 PE (1695624) - John Deere 32" Snow Thrower (2009) Handles and Controls Group Parts Diagram

32" Snow Thrower

Handles and Controls Group Parts Diagram

  • Title

0010

Murray 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, Qty 11

0

0020

Murray 1732427SM

ROD, Chute

$14.99

$

Usually ships in 2-12 days

0

0030

Murray 1924356SM

WASHER,3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 17

0

0040

Murray 50786MA

SPRING, 1/2 DIA x 3/4

$5.49

$

Usually ships in 2-12 days

0

0050

Murray 1918266SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

0060

Murray 1919439SM

NUT, Hex Lock, ESNA LIGHT, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0070

Murray 1737690YP

HANDLE, Clutch, Left

$37.99

$

Usually ships in 2-12 days

0

0080

Murray 1917421SM

NUT, Hex Jam, 3/8-16, NC-2B
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

0090

Murray 1735644YP

SPEED LEVER
(Superseded to 703046)

$86.99

$

Usually ships in 2-12 days

0

0100

Murray 1737684YP

BRACKET, Controls

$16.99

$

Usually ships in 2-12 days

0

0120

Murray 1931277SM

NUT, Hex Flange, 5/16-19
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0140

Murray 1735647YP

ROD, Shift, Upper

$20.99

$

Usually ships in 2-12 days

0

0150

Murray 1666255SM

ROD, Shift, Lower

$51.99

$

In Stock, only 1 left!

0

0160

Murray 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, Qty 10

0

0180

Murray 1735652YP

HARNESS, Wiring

$91.99

$

Usually ships in 2-12 days

0

0190

Murray 1732563SM

SWITCH, Rocker, Hand Warmer, 2007 SNOW

$47.99

$

Usually ships in 2-12 days

0

0210

Murray 1931317SM

BOLT, Carriage, 1/4-20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, Qty 5

0

0220

Murray 1724037SM

RESISTOR BLOCK, 1-1/2 x 3 Hand Warmers

$39.99

$

Usually ships in 2-12 days

0

0230

Murray 1960685SM

NUT, Hex, 1/4-20 Conical-Washer
(Superseded to 703061)

$3.49

$

In Stock, only 3 left!

0

0240

Murray 1920397SM

NUT, Hex Lock, ESNA LIGHT, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0250

Murray 1927429SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0

0260

Murray 304437MA

GRIP, Lever, 3/8-16

$11.99

$

Usually ships in 2-12 days

0

0270

Murray 1735642FYP

COVER, Panel

$145.99

$

Usually ships in 2-12 days

0

0280

Murray 1960715SM

SCREW, Truss Head Torx, 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 14

0

0300

Murray 1922837SM

CAPSCREW, Hex Head, 1/4-20 x 1-1/2
(Superseded to 703234)

$4.49

$

In Stock, only 3 left!

0

0320

Murray 1921962SM

CAPSCREW, Hex Head, 1/4-20 x 1-3/4
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0330

Murray 1732064ASM

COVER, Dash

$131.99

$

Usually ships in 2-12 days

0

0340

Murray 1735643YP

ASSEMBLY, Cable and Spring, Auger Drive, Right

$26.99

$

Usually ships in 2-12 days

0

0350

Murray 1736323YP

HANDLE, Clutch, Right

$20.99

$

Usually ships in 2-12 days

0

0360

Murray 1923358SM

NUT, Hex, Centerlock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

0370

Murray 1723965SM

HAND GRIP, 1" Dia. x 5-1/4" Long

$86.99

$

Usually ships in 2-12 days

0

0380

Murray 1736542YP

SPACER, 1/4 ID x 3/8 OD 1" Long

$4.49

$

Usually ships in 2-12 days

0

0390

Murray 1678392SM

SPACER, 1/4 ID x 3/8 OD x 3/8" Long
(Superseded to 703137)

$6.99

$

In Stock, only 2 left!

0

0410

Murray 1734587ASM

HANDLE, Upper, Right

$51.99

$

Usually ships in 2-12 days

0

0420

Murray 1734586ASM

HANDLE, Upper, Left

$55.99

$

In Stock, only 1 left!

0

0430

Murray 1960723SM

BOLT, Carriage, 5/16-18 x 2-1/4
(Superseded to 704421)

$5.49

$

Usually ships in 2-12 days

0

0440

Murray 1735641AYP

HANDLE, Lower

$79.99

$

Usually ships in 2-12 days

0

0450

Murray 1960686SM

NUT, Hex Flange, 5/16-18 ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 17

0

0460

Murray 1725702SM

SCREW, Pan Head Torx, #10 x 1/2

$5.49

$

Usually ships in 2-12 days

0

0470

Murray 1718791SM

ASSEMBLY, Cable and Handle

$70.99

$

In Stock, only 1 left!

0

0480

Murray 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 3 left!

0

0490

Murray 1735646YP

CABLE & SPRING ASSEMBLY, Auger Drive

$21.99

$

Usually ships in 2-12 days

0

0510

Murray 1733505BMYP

BRACKET, Pivot, Free Hand

$14.99

$

Usually ships in 2-12 days

0

0520

Murray 1733095SM

SPACER, 1/4 ID x 3/8 OD

$4.49

$

Usually ships in 2-12 days

0

0530

Murray 1733509SM

ROD & SPRING ASSEMBLY, With Pin

$81.99

$

Usually ships in 2-12 days

0

0550

Murray 2108360SM

SPRING, Compression, 2-1/4

$5.49

$

In Stock, only 1 left!

0

0560

Murray 1960353SM

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, only 2 left!

0

0570

Murray 1736360YP

ROD, Hold Down, 5-3/4

$11.99

$

Usually ships in 2-12 days

0

0580

Murray 1732322SM

HEADLIGHT ASSEMBLY
(Superseded to 1737966YP)

$97.99

$

Usually ships in 2-12 days

0

0580-10

* BULB, Headlight, Halogen, 881-12V 27W

Note: (Included with Ref. No. 0580)

$

$

Not available

0590

Murray 2825094SM

TIE, Self Locking
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0620

Murray 340720MA

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0
