1333 SE (31AE993I101) - Cub Cadet 33" Snow Thrower Engine (1999) Engine Assembly Parts Diagram

33" Snow Thrower Engine

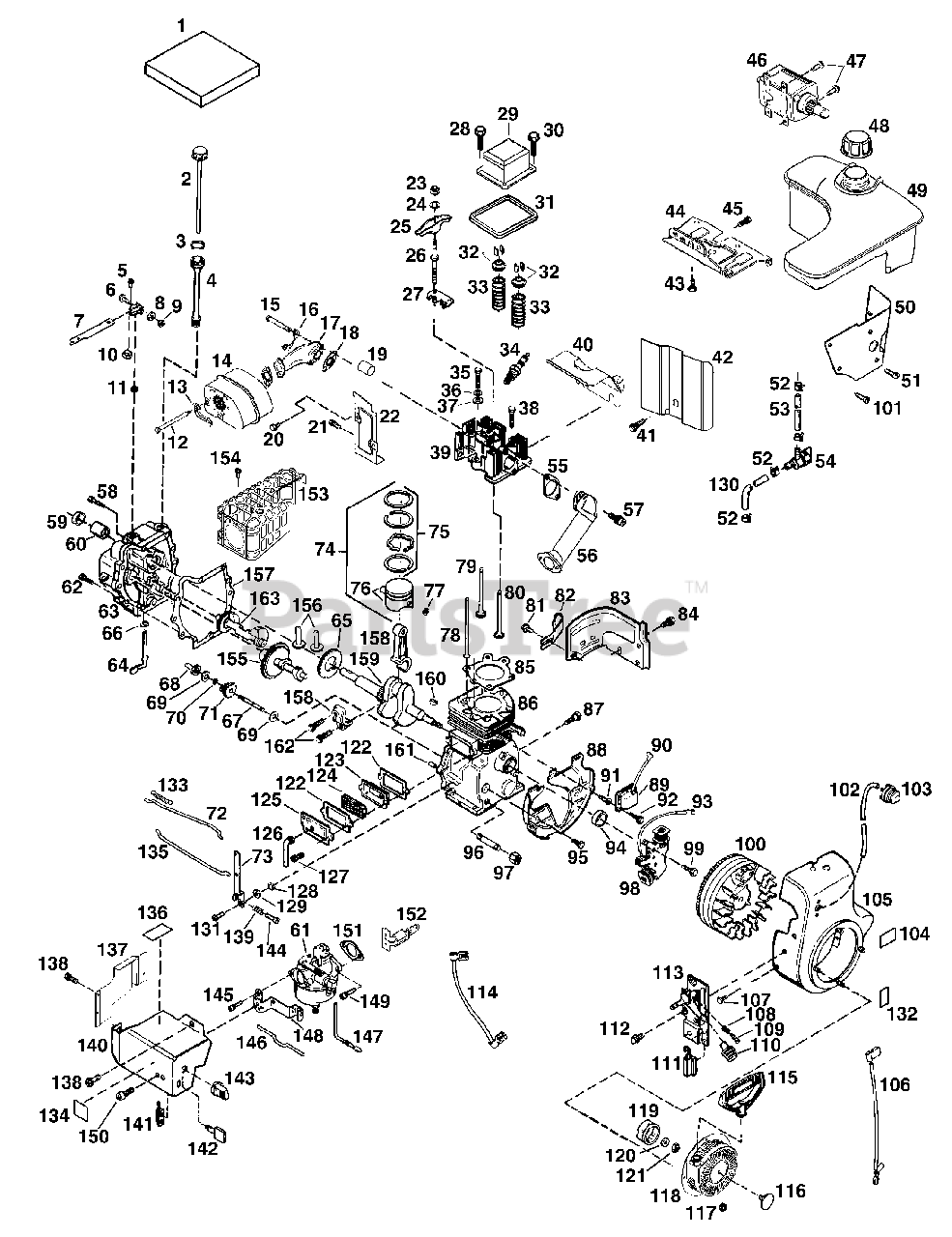

Engine Assembly Parts Diagram

  • Title
1

Cub Cadet TC-36947A

Gasket Set
(Superseded to TC-36947B)

$26.88

$

In Stock, only 3 left!

0

2

$7.30

$

In Stock, only 1 left!

0

3

$1.24

$

In Stock, Qty 20+

0

4

Cub Cadet TC-35574

Oil Fill Tube

$5.44

$

In Stock, only 3 left!

0

5

Cub Cadet TC-651028

Screw, Torx T-15, 8-32 x 3/8"

$1.70

$

In Stock, only 3 left!

0

6

Cub Cadet TC-29826

Screw, 10-32 x 3/4"

$1.76

$

In Stock, Qty 5

0

7

Cub Cadet TC-35686

Governor Lever
(Superseded to TC-35686A)

$1.76

$

Usually ships in 8-14 days

0

8

Cub Cadet TC-29918

Lock Washer

$1.76

$

In Stock, Qty 12

0

9

Cub Cadet TC-29216

Lock Nut, 10-32

$1.70

$

In Stock, Qty 5

0

10

Cub Cadet TC-30322

Lock Nut, 10-32

$1.70

$

In Stock, Qty 8

0

11

Cub Cadet TC-29642

Retaining Ring

$1.76

$

In Stock, Qty 5

0

12

Cub Cadet TC-650877

Screw, 5/16-18 x 4-1/2"

$7.22

$

In Stock, only 3 left!

0

13

Cub Cadet TC-35348

Locking Plate

$4.80

$

In Stock, only 1 left!

0

14

$93.20

$

In Stock, only 2 left!

0

15

Cub Cadet TC-650876

Screw, 5/16-18 x 1-9/32"

$3.36

$

In Stock, only 2 left!

0

16

Cub Cadet TC-35293

Locking Plate

$5.00

$

In Stock, Qty 8

0

17

Cub Cadet TC-37263

Exhaust Manifold

$40.20

$

In Stock, only 1 left!

0

18

Cub Cadet TC-35762

Exhaust Gasket

$1.76

$

In Stock, Qty 19

0

19

Cub Cadet TC-35829A

Exhaust Port Liner

$5.44

$

In Stock, only 1 left!

0

20

Cub Cadet TC-30063

Screw, Torx T-30, 1/4-20 x 1/2".

$1.76

$

In Stock, Qty 20+

0

21

Cub Cadet TC-30200

Lock Nut, 10-32

$1.24

$

In Stock, only 1 left!

0

22

Cub Cadet TC-37101

Blower Housing Extension

$7.02

$

Usually ships in 8-14 days

0

23

$1.68

$

In Stock, Qty 5

0

24

Cub Cadet TC-650890

Lock Washer

$1.76

$

In Stock, Qty 8

0

25

Cub Cadet TC-35950

Rocker Arm

$7.30

$

In Stock, only 4 left!

0

26

Cub Cadet TC-650945

Rocker Arm Stud

$1.76

$

In Stock, Qty 7

0

27

Cub Cadet TC-35949

Push Rod Guide

$3.66

$

Usually ships in 8-14 days

0

28

Cub Cadet TC-651034

Valve Cover Mounting Stud

$4.20

$

In Stock, only 1 left!

0

29

Cub Cadet TC-35953A

Rocker Arm Cover

$9.16

$

Usually ships in 8-14 days

0

30

Cub Cadet TC-30063

Screw, Torx T-30, 1/4-20 x 1/2"

$1.76

$

In Stock, Qty 20+

0

31

Cub Cadet TC-35952

Rocker Arm Cover Gasket

$6.02

$

In Stock, only 3 left!

0

32

Cub Cadet TC-33508

Valve Spring Keeper

$9.16

$

In Stock, only 4 left!

0

33

Cub Cadet TC-33507

Valve Spring

$3.66

$

Usually ships in 8-14 days

0

34

Cub Cadet TC-34645

Spark Plug (RN4C)
(Superseded to RN4C)

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet TC-650697A

Screw, 5/16-18 x 2-1/2"

$1.76

$

Usually ships in 8-14 days

0

36

Cub Cadet TC-650690

Belleville Washer
(Superseded to TC-730324)

$9.60

$

In Stock, only 1 left!

0

$1.76

$

In Stock, Qty 18

0

38

Cub Cadet TC-650990

Screw, Torx T-30, 1/4-20 x 15/32"

$3.92

$

In Stock, Qty 12

0

39

Cub Cadet TC-37084

Cylinder Head

$

$

Not available

40

Cub Cadet TC-37086

Cylinder Head Cover

$

$

Not available

41

Cub Cadet TC-650821

Screw, 10-32 x 1/2"

$1.68

$

In Stock, only 2 left!

0

42

Cub Cadet TC-37097

Heat Baffle

$4.06

$

Usually ships in 8-14 days

0

43

Cub Cadet TC-650665

Screw, 1/4-15 x 3/4"

$1.76

$

In Stock, only 2 left!

0

44

Cub Cadet TC-37093

Fuel Tank Bracket

$

$

Not available

45

Cub Cadet TC-792028

Screw, 5/16-18 x 7/8"
(Superseded to 710-3038)

$3.84

$

In Stock, Qty 6

0

46

Cub Cadet TC-33329D

Electric Starter Motor (110 Volt)
(Superseded to TC-33329F)

$296.98

$

Usually ships in 8-14 days

0

47

Cub Cadet TC-650990

Screw, Torx T-30, 1/4-20 x 15/32"

$3.92

$

In Stock, Qty 12

0

48

Cub Cadet TC-36246

Fuel Cap
(Superseded to TC-37844)

$5.86

$

In Stock, Qty 6

0

49

Cub Cadet TC-37099

Fuel Tank
(Superseded to TC-37099A)

Note: (Incl. Ref #52 & 48)

$76.94

$

In Stock, only 4 left!

0

50

Cub Cadet TC-37098

Fuel Tank Extension

$

$

Not available

51

Cub Cadet TC-650821

Screw, 10-32 x 1/2"

$1.68

$

In Stock, only 2 left!

0

52

Cub Cadet TC-26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 20+

0

53

Cub Cadet TC-30962

Fuel Line

$12.62

$

In Stock, only 3 left!

0

54

Cub Cadet TC-35857

Fuel Shut-Off Valve

$13.94

$

Usually ships in 8-14 days

0

55

Cub Cadet TC-33515A

Intake Pipe Gasket

$1.76

$

In Stock, Qty 13

0

56

Cub Cadet TC-37085

Intake Pipe

$

$

Not available

57

Cub Cadet TC-650971

Screw, Torx T-30, 5/16-18 x 7/8"

$1.76

$

In Stock, only 4 left!

0

58

Cub Cadet TC-650833

Screw, 1/4-20 x 1-3/16"

$1.68

$

Usually ships in 8-14 days

0

59

$4.90

$

In Stock, Qty 8

0

60

Cub Cadet TC-35377

Crankshaft Bushing

$11.04

$

In Stock, only 2 left!

0

61

Cub Cadet TC-640105

Carburetor

Note: (Incl. 151)

$106.40

$

In Stock, only 4 left!

0

62

Cub Cadet TC-650832

Screw, 1/4-20 x 1-11/16"

$

$

Not available

63

Cub Cadet TC-35684A

Cylinder Cover

Note: (Incl. 11, 59, 60, 64, 66)

$

$

Not available

64

Cub Cadet TC-35685

Governor Rod

Note: (Incl. 11 & 66)

$7.30

$

In Stock, only 1 left!

0

65

Cub Cadet TC-35327

Counterbalance Gear

$18.66

$

Usually ships in 8-14 days

0

66

Cub Cadet TC-30700

Governor Yoke

$1.70

$

Usually ships in 8-14 days

0

67

Cub Cadet TC-35751

Governor Shaft

$

$

Not available

68

Cub Cadet TC-35322

Governor Spool

$1.66

$

In Stock, only 4 left!

0

69

$

$

Not available

70

Cub Cadet TC-29193

Retaining Ring

$1.76

$

In Stock, Qty 6

0

71

Cub Cadet TC-35321

Governor Gear Ass’y

$9.16

$

In Stock, only 1 left!

0

72

Cub Cadet TC-35691

Governor Link

$2.24

$

In Stock, only 2 left!

0

73

Cub Cadet TC-35679

R.P.M. Adjusting Lever

$6.34

$

Usually ships in 8-14 days

0

74

Cub Cadet TC-35776A

Piston, Pin & Ring Set (Std.)

$

$

Not available

Cub Cadet TC-35777A

Piston, Pin & Ring Set (.010" OS)

$192.14

$

In Stock, only 1 left!

0

Cub Cadet TC-35778A

Piston, Pin & Ring Set (.020" OS)

$161.30

$

Usually ships in 8-14 days

0

75

Cub Cadet TC-35779

Ring Set (Std.)

$44.26

$

In Stock, only 1 left!

0

Cub Cadet TC-35780

Ring Set (.010" OS)

$30.62

$

Usually ships in 8-14 days

0

Cub Cadet TC-35781

Ring Set (.020" OS)

$

$

Not available

76

Cub Cadet TC-35773A

Piston & Pin Ass’y (Std.)

Note: (Incl. Ref #77)

$

$

Not available

Cub Cadet TC-35774A

Piston & Pin Ass’y (.010" OS)

Note: (Incl. 77)

$

$

Not available

Cub Cadet TC-35775A

Piston & Pin Ass’y (.020" OS)

Note: (Incl. 43)

$

$

Not available

77

Cub Cadet TC-35772

Piston Pin Retaining Ring

$1.70

$

In Stock, only 4 left!

0

78

$14.86

$

In Stock, only 2 left!

0

79

Cub Cadet TC-36934

Exhaust Valve (Std.)

$39.08

$

Usually ships in 8-14 days

0

Cub Cadet TC-36936

Exhaust Valve (1/32" OS)

$42.68

$

Usually ships in 8-14 days

0

80

Cub Cadet TC-36935

Intake Valve (Std.)

$22.66

$

In Stock, only 1 left!

0

Cub Cadet TC-36937

Intake Valve (1/32" OS)

$21.96

$

Usually ships in 8-14 days

0

81

Cub Cadet TC-30200

Screw, 10-24 x 3/16"

$1.24

$

In Stock, only 1 left!

0

82

Cub Cadet TC-35539

Fill Tube Clip

$1.70

$

In Stock, only 4 left!

0

83

Cub Cadet TC-35316A

Blower Housing Extension

$3.66

$

In Stock, only 1 left!

0

84

Cub Cadet TC-30063

Screw, Torx T-30, 1/4-20 x 1/2"

$1.76

$

In Stock, Qty 20+

0

85

Cub Cadet TC-36932

Cylinder Head Gasket

$7.30

$

In Stock, Qty 8

0

86

Cub Cadet TC-37083

Cylinder

Note: (Incl. 67, 94, 161)

$179.22

$

Usually ships in 8-14 days

0

87

Cub Cadet TC-650820

Screw, 1/4-20 x 1/2"

$3.64

$

Usually ships in 8-14 days

0

88

Cub Cadet TC-36460

Blower Housing Baffle
(Superseded to TC-37853)

$11.14

$

In Stock, only 3 left!

0

89

Cub Cadet TC-35135

Solid State Ignition
(Superseded to TC-35135B)

$62.44

$

In Stock, only 2 left!

0

90

Cub Cadet TC-610118

Spark Plug Cover

$3.74

$

In Stock, Qty 20+

0

91

Cub Cadet TC-651024

Solid State Mounting Stud

$3.64

$

In Stock, only 2 left!

0

92

Cub Cadet TC-651007

Screw, Torx T-15, 10-24 x 15/16"

$1.64

$

In Stock, Qty 5

0

93

$1.70

$

Usually ships in 8-14 days

0

94

$4.90

$

In Stock, Qty 8

0

95

Cub Cadet TC-650561

Screw, 1/4-20 x 5/8"

$1.76

$

In Stock, Qty 5

0

96

Oil Drain Extension

Note: (Purchase Locally)

$

$

Not available

97

Cub Cadet TC-30969

Extension Cap

$5.44

$

In Stock, Qty 6

0

98

Cub Cadet TC-611111

Alternator Coil (18 Watt)

Note: (Incl. Ref #93)

$68.80

$

In Stock, only 3 left!

0

99

Cub Cadet TC-650873

Screw, 1/4-20 x 3/4"

$1.68

$

Usually ships in 8-14 days

0

100

Cub Cadet TC-611093

Flywheel (W/Ring Gear)

$258.14

$

Usually ships in 8-14 days

0

101

Cub Cadet TC-651032

Screw, 12-16 x 5/8"

$1.70

$

In Stock, only 2 left!

0

102

Cub Cadet TC-32180C

Primer Line

$3.66

$

In Stock, Qty 20+

0

103

Cub Cadet TC-570682A

Primer Ass’y

$10.40

$

In Stock, Qty 16

0

104

Cub Cadet TC-36501

Primer Decal

$1.40

$

Usually ships in 8-14 days

0

105

Cub Cadet TC-37092

Blower Housing
(Superseded to TC-37092A)

$80.10

$

Usually ships in 8-14 days

0

106

Cub Cadet TC-35187

Ground Wire

$

$

Not available

107

Cub Cadet TC-29747B

Screw, Torx T-40, 5/16-24 x 21/32"

$1.76

$

In Stock, Qty 7

0

108

Cub Cadet TC-31342

Compression Spring

$1.66

$

Usually ships in 8-14 days

0

109

Cub Cadet TC-651029

Screw, Torx T-10, 5-40 x 7/16"

$1.70

$

In Stock, only 4 left!

0

110

Cub Cadet TC-35440

Control Knob

$3.66

$

In Stock, Qty 9

0

111

$3.64

$

In Stock, Qty 20+

0

112

Cub Cadet TC-650821

Screw, 10-32 x 1/2"

$1.68

$

In Stock, only 2 left!

0

113

Cub Cadet TC-35702

Control Bracket

Note: (Incl. 108, 109 & 111)

$23.94

$

In Stock, Qty 18

0

114

Cub Cadet TC-37047

Ground Wire

$1.76

$

In Stock, Qty 5

0

115

Cub Cadet TC-590574

Starter Handle

$5.31

$

In Stock, only 2 left!

0

116

Cub Cadet TC-36695

Starter Decal

$2.00

$

In Stock, only 3 left!

0

117

Cub Cadet TC-29752

Nut & Lock Washer, 1/4-28

$1.76

$

In Stock, Qty 18

0

118

Cub Cadet TC-590749

Rewind Starter
(Superseded to TC-590789)

$87.58

$

In Stock, only 3 left!

0

119

Cub Cadet TC-37256

Cylinder Head Gasket

$9.16

$

In Stock, only 4 left!

0

120

Cub Cadet TC-650880

Lock Washer

$1.68

$

In Stock, only 3 left!

0

121

Cub Cadet TC-650881

Flywheel Nut

$1.68

$

Usually ships in 8-14 days

0

122

Cub Cadet TC-27896A

Valve Cover Gasket

$1.40

$

In Stock, Qty 20+

0

123

Cub Cadet TC-28423

Breather Body

$13.00

$

In Stock, Qty 7

0

124

Cub Cadet TC-28424

Breather Element

$3.66

$

In Stock, Qty 13

0

125

Cub Cadet TC-28425

Valve Cover

$7.30

$

In Stock, only 2 left!

0

126

Cub Cadet TC-35350

Breather Tube

$6.40

$

In Stock, Qty 5

0

127

Cub Cadet TC-650128

Screw, 10-24 x 1/2"

$5.04

$

In Stock, only 1 left!

0

128

$

$

Not available

129

$1.70

$

Usually ships in 8-14 days

0

130

Cub Cadet TC-29774

Fuel Line

$15.86

$

In Stock, Qty 20+

0

131

Cub Cadet TC-650930

Screw, 10-32 x 5/8"

$

$

Not available

132

Cub Cadet TC-37226

Instruction Decal

$

$

Not available

133

Cub Cadet TC-35688

Extension Spring

$3.66

$

In Stock, only 1 left!

0

134

Cub Cadet TC-36534

Caution Decal

$

$

Not available

135

Cub Cadet TC-35692

Throttle Link

$3.16

$

In Stock, only 3 left!

0

136

Cub Cadet TC-37119

Warning Decal

$1.40

$

Usually ships in 8-14 days

0

137

Cub Cadet TC-37087

Carburetor Cover

$15.06

$

Usually ships in 8-14 days

0

138

Cub Cadet TC-650821

Screw, 10-32 x 1/2"

$1.68

$

In Stock, only 2 left!

0

139

Cub Cadet TC-36482

Compression Spring

$1.70

$

Usually ships in 8-14 days

0

140

Cub Cadet TC-37096

Carburetor Cover (Front)

$

$

Not available

141

$3.64

$

In Stock, Qty 20+

0

142

Cub Cadet TC-35062

Key Switch

$3.66

$

In Stock, Qty 8

0

143

Cub Cadet TC-35438

Choke Knob

$3.66

$

In Stock, Qty 10

0

144

Cub Cadet TC-651019

Screw, Torx T-10, 6-32 x 41/64"

$1.70

$

In Stock, Qty 5

0

145

Cub Cadet TC-28820

Screw, 10-32 x 1/2"
(Superseded to TC-651081)

$4.04

$

In Stock, Qty 15

0

146

Cub Cadet TC-36653

Choke Spring

$1.70

$

In Stock, Qty 5

0

147

Cub Cadet TC-35689

Choke Rod

$

$

Not available

148

Cub Cadet TC-34583A

Choke Bracket

$7.30

$

In Stock, only 1 left!

0

149

Cub Cadet TC-650517

Screw, 1/4-20 x 27/32"

$1.76

$

In Stock, Qty 5

0

150

Cub Cadet TC-650821

Screw, 10-32 x 1/2"

$1.68

$

In Stock, only 2 left!

0

151

Cub Cadet TC-33263

Carburetor To Intake Pipe Gasket

$1.40

$

In Stock, Qty 20+

0

152

Cub Cadet TC-35079

Key Switch Bracket

$

$

Not available

153

Cub Cadet TC-37265

Heat Shield

$47.30

$

In Stock, only 1 left!

0

154

Cub Cadet TC-651011

Screw, 10-32 x 5/16"

$1.76

$

Usually ships in 8-14 days

0

155

Cub Cadet TC-35682A

Camshaft (MCR)

$105.78

$

Usually ships in 8-14 days

0

156

Cub Cadet TC-35313

Valve Lifter

$

$

Not available

157

Cub Cadet TC-35683

Cylinder Cover Gasket

$3.66

$

In Stock, Qty 5

0

158

Cub Cadet TC-36898

Connecting Rod Ass’y
(Superseded to TC-36898A)

Note: (Incl. 162)

$52.82

$

In Stock, only 3 left!

0

159

Cub Cadet TC-35680A

Crankshaft

$

$

Not available

160

Cub Cadet TC-32589

Flywheel Key

$1.46

$

In Stock, Qty 10

0

161

Cub Cadet TC-27652

Dowel Pin

$2.22

$

In Stock, Qty 5

0

162

Cub Cadet TC-651033

Connecting Rod Bolt

$1.56

$

Usually ships in 8-14 days

0

163

Cub Cadet TC-35315A

Counterbalance Weight

$95.92

$

Usually ships in 8-14 days

0
