33" Snow Thrower

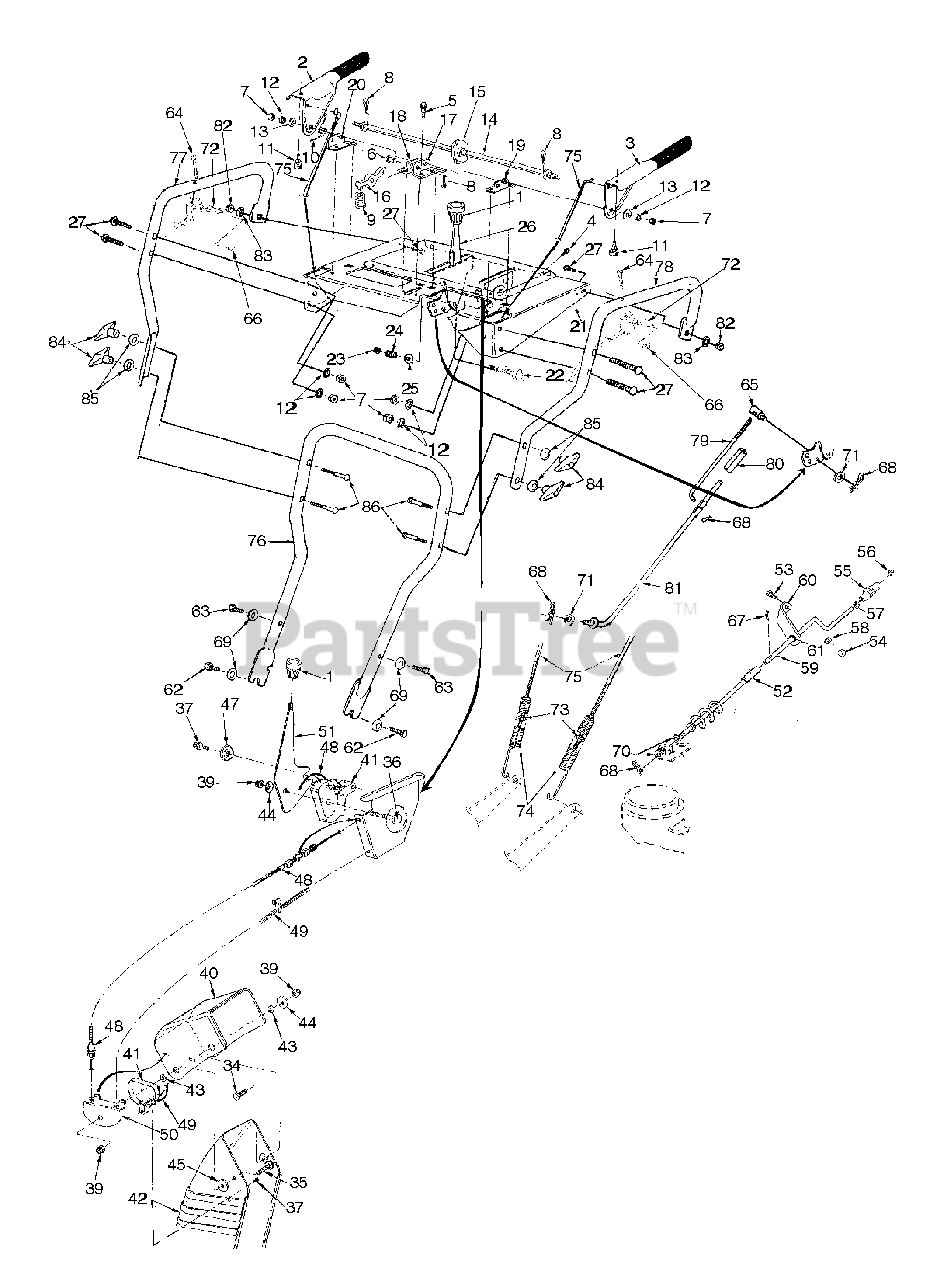

Handle & Chute Assembly Parts Diagram

  • Title

1

Cub Cadet 720-0232

Sml Shift Knob
(Superseded to 920-0232)

$9.99

$

In Stock, only 4 left!

0

2

Cub Cadet 705-5218

Engage Handle RH

$37.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 705-5219

Engage Handle LH

$37.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0351

Pan Head B-tapp Scr #10 x .5

$4.49

$

In Stock, only 4 left!

0

5

Cub Cadet 710-0599

Hwhd Sf-tap Scr 1/4-20 x 1/2 Lg.

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 711-0653

Clevis Pin .31 Dia x 1.0

$3.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 712-3010

Nut Hex 5/16-18 Gd 5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 714-0507

Cot-pin 3/32 Dia x 1.0

$4.49

$

In Stock, only 4 left!

0

9

Cub Cadet 732-0145

Comp Spring .36 Dia x 1.0 Lg

$3.99

$

In Stock, only 1 left!

0

10

Cub Cadet 732-0746

Spring Torsion .44 ID

$4.49

$

In Stock, Qty 13

0

11

Cub Cadet 735-0199A

Rubber Bumper .63 Dia

$6.99

$

In Stock, Qty 16

0

12

Cub Cadet 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0509

Wsher Spcl. .345 Sq. x .72 OD

$6.49

$

In Stock, only 1 left!

0

14

Cub Cadet 747-0877

Cam Rod

$21.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 748-0362

Clutch Lock Cam

$7.49

$

In Stock, only 1 left!

0

16

Cub Cadet 748-0363

Clutch Lock Pawl
(Superseded to 948-0363)

$15.99

$

In Stock, only 1 left!

0

17

Cub Cadet 784-5679

Supt Brkt 5/8 Lh
(Superseded to 784-5679-0637)

Variations

Cub Cadet 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$7.99

$

Usually ships in 3-6 days

0

$7.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 784-5680

Supt Brkt 5/8 Rh
(Superseded to 784-5680-0637)

Variations

Cub Cadet 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 784-5681

Supt Brkt 3/8 Lh

Variations

Cub Cadet 784-5681-0637

USE 784-5681 BRACKET-HANDLE S - POWDER BLACK (0637)

$8.49

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 784-5682

Supt Brkt 3/8 Rh
(Superseded to 784-5682-0637)

Variations

Cub Cadet 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 684-0102

Pnl Asm Hndl W/tilt
(Superseded to 684-0102A)

Variations

Cub Cadet 684-0102-0498

USE 684-0102A-0498 PANEL ASM: - OLD CUB YELLOW (0498)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0638

USE 684-0102A-0638 PANEL ASM: - MTD/TROY-BILT RED (0638)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0650

USE 684-0102A-0650 PANEL ASM: - RED METALLIC (0650)

$124.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0662

USE 684-0102A-0662 PANEL ASM: - OYSTER GRAY (0662)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0665

USE 684-0102A-0665 PANEL ASM: - YARDMAN GREEN (0665)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0689

USE 684-0102A-0689 PANEL ASM: - POLO GREEN (0689)

$124.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0716

USE 684-0102A-0716 PANEL ASM: - CUB YELLOW-99 (0716)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0721

USE 684-0102A-4044 PANEL ASM: - SEARS RED (0721)

$124.99

$

Usually ships in 3-6 days

0

$124.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 710-0459A

Scr Hex Cap 3/8-24 x 1.5 Gd 5

$6.99

$

In Stock, Qty 10

0

23

Cub Cadet 712-0116

Hex Ins L-nut 3/8-24

$4.49

$

In Stock, Qty 7

0

24

Cub Cadet 732-0193

Compression Spring .39 ID x .88

$4.49

$

In Stock, Qty 8

0

25

Cub Cadet 736-0105

Bell Wash .40 ID x .88 OD x .06

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 784-5619A

Shift Handle
(Superseded to 753-05395)

Variations

Cub Cadet 784-5619A-0637

USE 753-05395 KIT-SHIFT HANDL - POWDER BLACK (0637)

$

$

Not available

$

$

27

Cub Cadet 710-0458

Carriage Bolt 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

34

Cub Cadet 710-0276

Carriage Bolt 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 710-0458

Carriage Bolt 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

36

Cub Cadet 710-0805

Hex Scr 5/16-18 x 1.5
(Superseded to 710-0805A)

$3.99

$

In Stock, only 2 left!

0

37

Cub Cadet 710-0896

HWHD B Tapp Scr 1/4 x 5/8 Zn

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 712-0429

Hex Ins L-nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

40

Cub Cadet 731-0846C

6" Upper Chute Remote Tilt

$48.99

$

In Stock, only 1 left!

0

41

Cub Cadet 731-1313C

Chute Tilt Cable Guide

$11.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 731-0903D

6" Lower Chute Remote Tilt
(Superseded to 731-0903E)

$40.99

$

In Stock, Qty 14

0

43

Cub Cadet 731-1319

Chute Pivot Spacer
(Superseded to 931-1319)

$

$

Not available

44

Cub Cadet 736-0159

Fl-wash .344 ID x .88 OD x .063

$3.99

$

In Stock, Qty 20+

0

45

Cub Cadet 736-0231

Flt Wshr .344 x 1.125 x .125

$4.49

$

In Stock, only 4 left!

0

47

Cub Cadet 736-0506

Contoured Washer
(Superseded to 736-0506A)

$

$

Not available

48

Cub Cadet 746-0902

Chute Control Cable 66"
(Superseded to 946-0902)

$45.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 746-0903

Chute Control Cable 66" W/clip
(Superseded to 946-0903)

$49.99

$

In Stock, only 1 left!

0

50

Cub Cadet 784-5594

Cable Bracket Chute Tilt

Variations

Cub Cadet 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$10.99

$

In Stock, only 1 left!

0

Cub Cadet 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$10.99

$

In Stock, only 1 left!

0

Cub Cadet 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$10.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 784-5604

Chute Tilt Handle
(Superseded to 784-5604A-0637)

Variations

Cub Cadet 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 684-0053A

Lower Chute Directional Control
(Superseded to 684-0053B-0637)

Variations

Cub Cadet 684-0053A-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

53

Cub Cadet 710-3015

Hex Scr 1/4-20 x .75 Lg Gd5

$3.99

$

In Stock, Qty 20+

0

54

Cub Cadet 712-0287

Hex Nut 1/4-20
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

55

Cub Cadet 720-0201A

Chute Directional Control Knob

$10.99

$

In Stock, Qty 6

0

56

Cub Cadet 726-0100

Push Cap 3/8 Palnut #375011

$3.99

$

In Stock, Qty 8

0

57

Cub Cadet 736-0117

Flat Washer .38 ID x .60 OD x .033
(Superseded to 936-0117)

$6.99

$

In Stock, only 1 left!

0

58

Cub Cadet 736-0270

Bell Wash .26 ID x .75 OD x .06T

$3.99

$

In Stock, Qty 14

0

59

Cub Cadet 747-0624

Upper Chute Directional Control
(Superseded to 747-0624-0637)

Variations

Cub Cadet 747-0624-0637

Crank Chute - POWDER BLACK (0637)

$22.99

$

Usually ships in 3-6 days

0

$22.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 705-5266

Brkt Chute Directional Control
(Superseded to 705-5266-0637)

Variations

Cub Cadet 705-5266-0637

Chute Crank Bracket - POWDER BLACK (0637)

$14.99

$

Usually ships in 3-6 days

0

$14.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 741-0475

Plastic Bushing .380 ID
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

62

Cub Cadet 710-0216

Hex Scr 3/8-16 x .75

$3.99

$

In Stock, Qty 17

0

63

Cub Cadet 710-0347

Hex Scr 3/8-16 x 1.75

$4.99

$

In Stock, Qty 20+

0

64

Cub Cadet 710-1625

Scr Oval C/sunk #10-24 x 1.75

$6.49

$

Usually ships in 3-6 days

0

65

Cub Cadet 711-0677

Adjustment Ferrule
(Superseded to 911-0677)

$16.99

$

In Stock, only 4 left!

0

66

Cub Cadet 712-0127

#10-24 Flat Weld Nut

$3.49

$

In Stock, Qty 13

0

67

Cub Cadet 714-0101

Internal Cot-pin 1/2 Dia

$4.49

$

In Stock, only 4 left!

0

68

Cub Cadet 714-0104

Inter Cot-pin 5/16 Dia

$3.99

$

In Stock, Qty 20+

0

69

Cub Cadet 736-0105

Bell Wash .4 ID x .88 OD x .06

$3.99

$

In Stock, Qty 20+

0

70

Cub Cadet 736-0185

Fl-wash .406 ID x .74 OD x .063

$3.49

$

In Stock, Qty 17

0

71

Cub Cadet 736-0275

Fl-wash Sae .34 x .68 x .062

$6.49

$

Usually ships in 3-6 days

0

72

Cub Cadet 746-0950

Trigger Ass'y Steer
(Superseded to 746-0950A)

$20.99

$

In Stock, only 1 left!

0

73

Cub Cadet 712-0324

Hex Ins L-nut 1/4-20

$3.49

$

In Stock, Qty 20+

0

74

Cub Cadet 732-0184

Extension Spring

$23.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 746-0952

Cable Clutch Drive
(Superseded to 746P0952)

$42.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 646-0012

Handle Lower

$34.99

$

In Stock, only 1 left!

0

77

Cub Cadet 749-0990A

Handle Upper Rh

Variations

Cub Cadet 749-0990A-0637

HANDLE-UPPER RT - POWDER BLACK (0637)

$87.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0990A-0638

HANDLE-UPPER RT - MTD/TROY-BILT RED (0638)

$87.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0990A-0650

HANDLE-UPPER RT - RED METALLIC (0650)

$76.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0990A-0665

HANDLE-UPPER RT - YARDMAN GREEN (0665)

$76.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0990A-0691

HANDLE-UPPER RT - BLACK JACK (0691)

$76.99

$

Usually ships in 3-6 days

0

$76.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 749-0989A

Handle Upper Lh

Variations

Cub Cadet 749-0989A-0637

HANDLE-UPPER LH - POWDER BLACK (0637)

$91.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0989A-0638

HANDLE-UPPER LH - MTD/TROY-BILT RED (0638)

$91.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0989A-0650

HANDLE-UPPER LH - RED METALLIC (0650)

$79.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0989A-0665

HANDLE-UPPER LH - YARDMAN GREEN (0665)

$79.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0989A-0691

HANDLE-UPPER LH - BLACK JACK (0691)

$79.99

$

Usually ships in 3-6 days

0

$79.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 747-0997

Upper Shift Rod 5/16 x 10.57

$64.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 750-0963

2 Pc Shift Rod Connector
(Superseded to 950-0963)

$32.99

$

In Stock, only 3 left!

0

81

Cub Cadet 747-0983

Lower Shift Rod 3/8 x 14.75
(Superseded to 747-0983A)

$42.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 712-0287

Hex Nut 1/4 - 20
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

83

Cub Cadet 736-0270

Bell Wash .26 ID x .75 OD x .06T

$3.99

$

In Stock, Qty 14

0

84

Cub Cadet 720-0284

Wingnut

$6.49

$

In Stock, Qty 20+

0

85

Cub Cadet 736-0242

Bell Wash .345 ID x .88 OD x .060

$3.99

$

In Stock, Qty 20+

0

86

Cub Cadet 710-0572

Carriage Bolt 5/16 -18 x 2.5

$3.99

$

In Stock, Qty 5

0
