1334 - Simplicity Pacer Series 34" Walk-Behind Mower 34" Mower Deck - Belt, Idler Arm & Hitch (7104biah) Parts Diagram

Pacer Series 34" Walk-Behind Mower

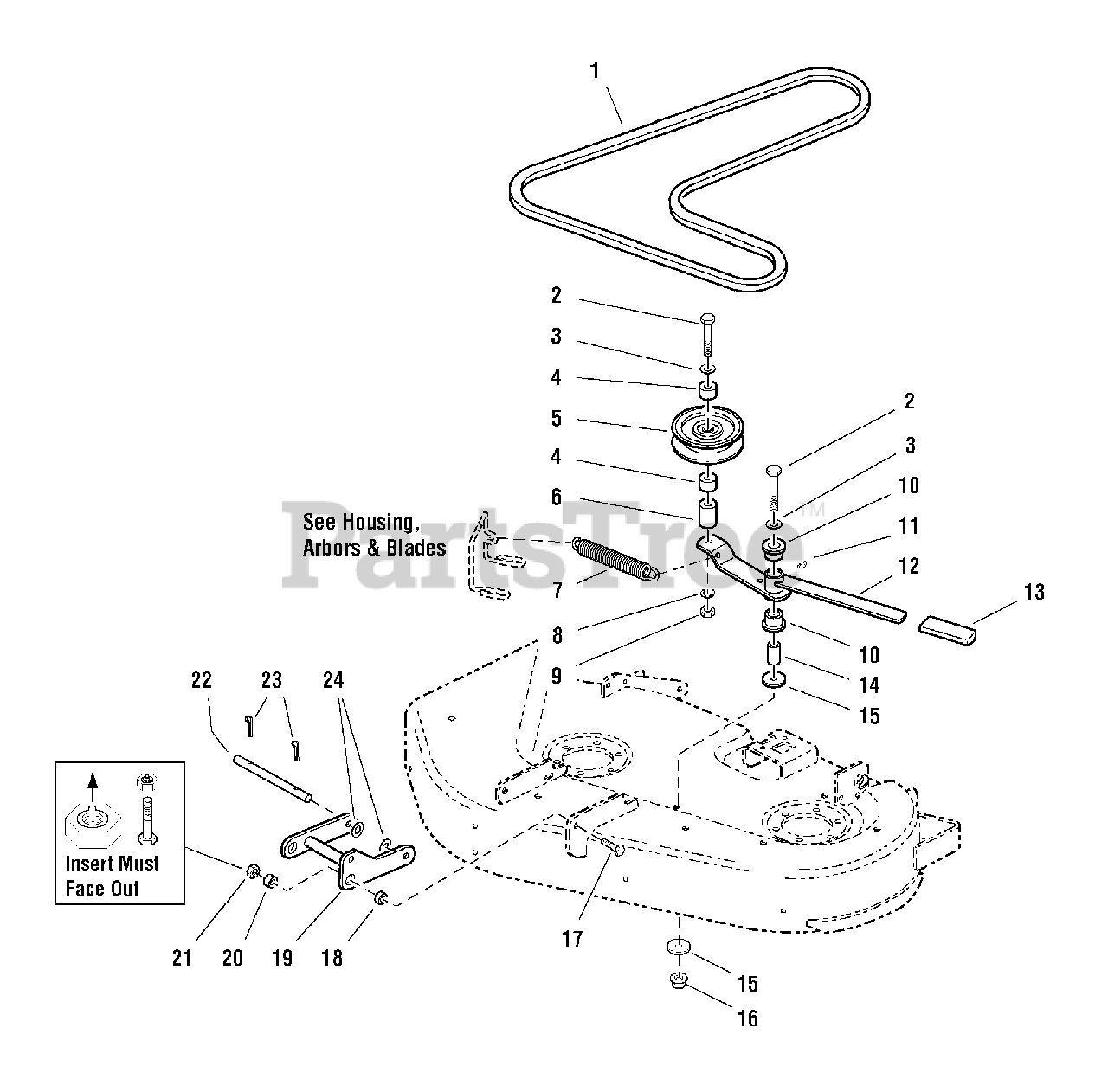

34" Mower Deck - Belt, Idler Arm & Hitch (7104biah) Parts Diagram

  • Title

1

Simplicity 1723391SM

BELT

$

$

Not available

2

Simplicity 5025013X22SM

CAPSCREW, Hex Head, 3/8-16 x 2-3/4

$4.49

$

In Stock, Qty 6

0

3

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 1667811SM

SPACER

$3.49

$

In Stock, Qty 6

0

5

Simplicity 1704926SM

PULLEY, Idler

$38.99

$

In Stock, only 1 left!

0

6

Simplicity 1667812SM

SPACER

$5.99

$

In Stock, Qty 6

0

7

Simplicity 2164213SM

SPRING, Extension

$32.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025171SM

LOCKWASHER, 3/8

$3.99

$

In Stock, only 3 left!

0

9

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 13

0

10

Simplicity 1663114SM

BUSHING

$4.49

$

In Stock, only 2 left!

0

11

Simplicity 2812808SM

FITTING, Lube

$4.49

$

In Stock, only 2 left!

0

12

Simplicity 1724535SM

LEVER & ARM ASSEMBLY, Complete (Includes Ref. No. 10 & 11)

$54.99

$

Usually ships in 2-12 days

0

13

Simplicity 1665835

GRIP
(Superseded to 1665835YP)

$7.49

$

Usually ships in 2-12 days

0

14

Simplicity 1657242SM

SPACER

$10.99

$

Usually ships in 2-12 days

0

15

Simplicity 1924356SM

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 17

0

16

Simplicity 5025128SM

NUT, Hex Serrated Flange, 3/8-16

$3.49

$

In Stock, only 1 left!

0

17

Simplicity 5025013X12SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/2

$3.99

$

Usually ships in 2-12 days

0

18

Simplicity 1667811SM

SPACER

$3.49

$

In Stock, Qty 6

0

19

Simplicity 1724357ASM

HITCH

$44.99

$

Usually ships in 2-12 days

0

20

Simplicity 2157081SM

SPACER

$8.99

$

In Stock, Qty 13

0

21

Simplicity 2860681SM

NUT, Hex Flange, 3/8-16

$4.49

$

In Stock, Qty 11

0

22

Simplicity 1724430SM

PIN

$25.99

$

Usually ships in 2-12 days

0

23

Simplicity 1918452SM

PIN, Cotter
(Superseded to 703795)

$5.99

$

Usually ships in 2-12 days

0

24

Simplicity 5025158SM

WASHER, 1/2

$3.99

$

In Stock, Qty 6

0
