1334 - Simplicity Pacer Series 34" Walk-Behind Mower 34" Mower Deck - Housing, Arbors & Blades (7104hab) Parts Diagram

Pacer Series 34" Walk-Behind Mower

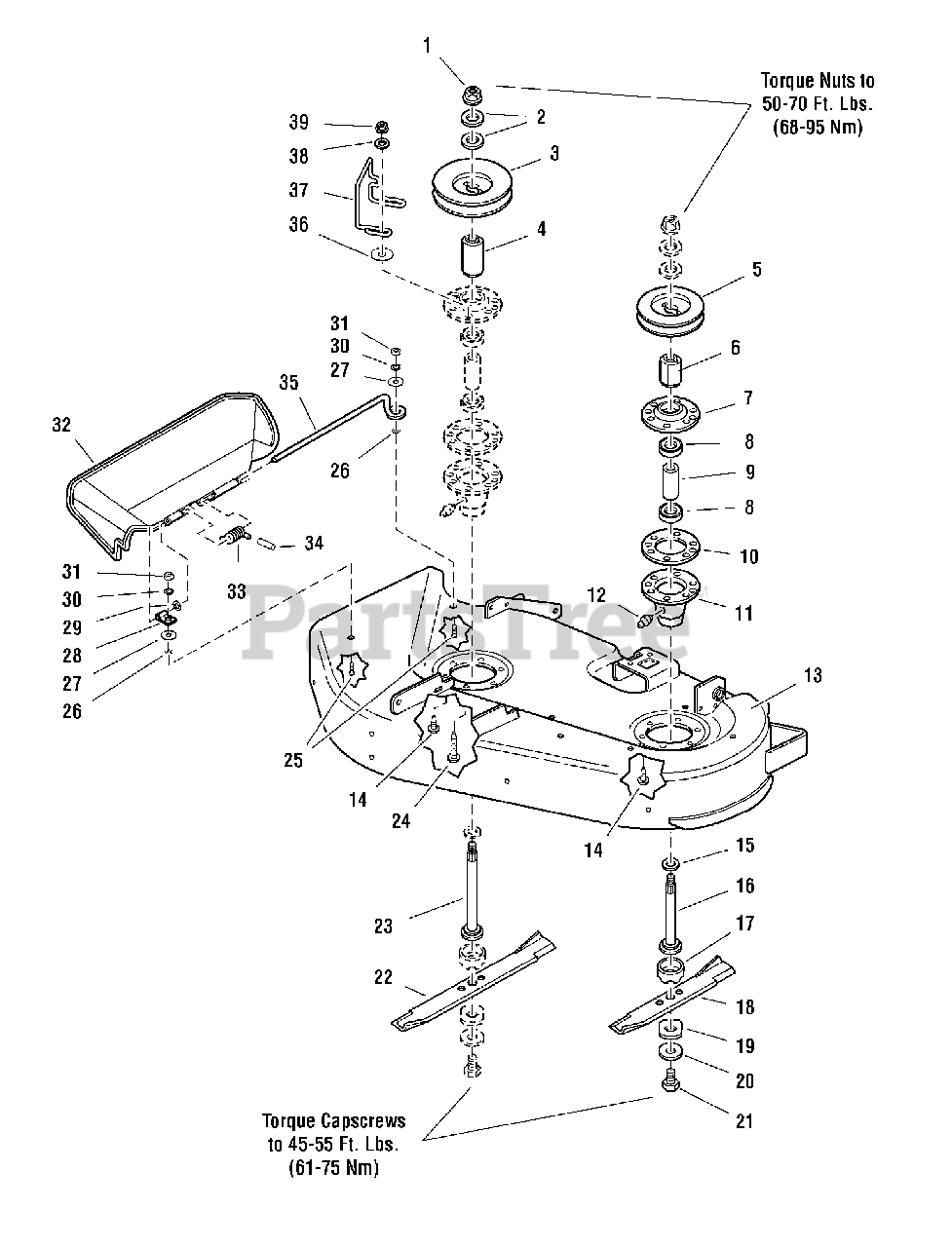

34" Mower Deck - Housing, Arbors & Blades (7104hab) Parts Diagram

  • Title

1

Simplicity 1714419SM

NUT, Hex Flange, 9/16-18

$5.99

$

In Stock, Qty 20+

0

2

Simplicity 1713675SM

WASHER, Bellville .56ID x 1.34 OD x .05T

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1713091SM

PULLEY

$23.99

$

In Stock, only 1 left!

0

4

Simplicity 1713616SM

HUB

$24.99

$

In Stock, Qty 16

0

5

Simplicity 1713090SM

PULLEY

$24.99

$

Usually ships in 2-12 days

0

6

Simplicity 1713614SM

HUB

$21.99

$

In Stock, only 2 left!

0

7

Simplicity 1713199ASM

COVER, Arbor Housing

$16.99

$

In Stock, Qty 20+

0

8

Simplicity 1705897SM

BEARING

$8.49

$

In Stock, Qty 20+

0

9

Simplicity 1732543SM

SPACER

$8.49

$

In Stock, Qty 20+

0

10

Simplicity 1707335SM

GASKET, Foam

$5.99

$

In Stock, Qty 20+

0

11

Simplicity 1713338ASM

HOUSING ASSEMBLY, Arbor Bottom, w/Lube Fitting

Note: (Includes Ref. No. 12)

$41.99

$

In Stock, Qty 20+

0

12

Simplicity 1704314SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

13

Simplicity 1724359CSM

MOWER HOUSING, 34"
(Superseded to 5600253YP)

$

$

Not available

14

Simplicity 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4, Black
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1713619SM

WASHER

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 1713610SM

SHAFT, Arbor

$

$

Not available

17

Simplicity 1713196SM

SHIELD, Grass

$9.49

$

In Stock, Qty 20+

0

18

Simplicity 1706737ASM

BLADE, Mower, 14.42
(Superseded to 1706737BMYP)

$25.99

$

In Stock, Qty 12

0

19

Simplicity 1713089SM

WASHER, Hex, Special

$4.99

$

In Stock, Qty 20+

0

20

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

21

Simplicity 2823471SM

CAPSCREW, Hex Head, 7/16-14 x 1-1/4, Black
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 1706738ASM

BLADE, Mower, 19.90

$27.99

$

In Stock, Qty 8

0

23

Simplicity 1713612SM

SHAFT, Arbor

$

$

Not available

24

Simplicity 1930600SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/2, Black

$4.99

$

In Stock, Qty 20+

0

25

Simplicity 1931318SM

CARRIAGE BOLT, 1/4-20 x 7/8, Black

$4.49

$

In Stock, only 3 left!

0

26

Simplicity 1960518SM

NUT, Push, 1/4, Black
(Superseded to 703826)

$3.49

$

In Stock, Qty 17

0

27

Simplicity 1960353SM

WASHER, 1/4, Black
(Superseded to 703229)

$4.49

$

In Stock, only 2 left!

0

28

Simplicity 1704873SM

CLAMP, Wire, 5/16 Diameter

$4.49

$

In Stock, only 2 left!

0

29

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 18

0

30

Simplicity 1916964SM

LOCKWASHER, 1/4, Black
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

31

Simplicity 1916622SM

NUT, Hex, 1/4-20, Black
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

32

Simplicity 1705449SM

DEFLECTOR, Plastic

$122.99

$

In Stock, Qty 14

0

33

Simplicity 1723938SM

SPRING, Torsion

$6.49

$

Usually ships in 2-12 days

0

34

Simplicity 1723323SM

CAP, Spring End

$4.99

$

In Stock, Qty 7

0

35

Simplicity 1706709SM

ROD, Deflector

$8.49

$

In Stock, Qty 7

0

36

Simplicity 1924356SM

WASHER, 5/16, Black
(Superseded to 703591)

$5.49

$

In Stock, Qty 17

0

37

Simplicity 1704099SM

BELT GUIDE

$21.99

$

Usually ships in 2-12 days

0

38

Simplicity 1919381SM

WASHER, 5/16, Black
(Superseded to 703298)

$4.49

$

In Stock, Qty 13

0

39

Simplicity 1927557SM

NUT, Hex Flange, 5/16-18

$4.99

$

In Stock, Qty 5

0
